PREPARE HEADER FOR WINDROWER OR COMBINE (continued)
Moving Draper Motors
Draper drive motors may be moved from outboard
to inboard and vice versa. The inboard
configuration provides more conveying torque in
heavy crops and is for windrowing applications
only. The maximum delivery opening is
recommended with motors inboard.
In combine applications motors must be in
outboard configuration because of interference
with adapter conveyors.
Moving Motors From Outboard to Inboard
1. The following parts must be purchased from
your dealer:
Part No. 43768 - Hose, quantity 1
Part No. 101917 - Hose, quantity 1
Part No. 50103 - 45
° Elbow - 7/8 O-ring x
7/8 JIC, quantity 4
2. Loosen and remove drapers.
3. Remove hoses from draper drive motors and
remove hardware connecting drive roller
assembly to tensioning bars.
4. Remove hardware connecting opening
adjustment bars to deck and remove complete
idler roller assembly.
5. Remove idler roller from opening adjustment
bars.
6. Install idler roller on tensioning bars.
7. Attach drive roller to opening adjustment bars,
using hardware from outer end.
NOTE: At R/H side, do not re-use support
103188 from outer end.
8. Install drive roller assembly in deck at widest
opening position. See page 73.

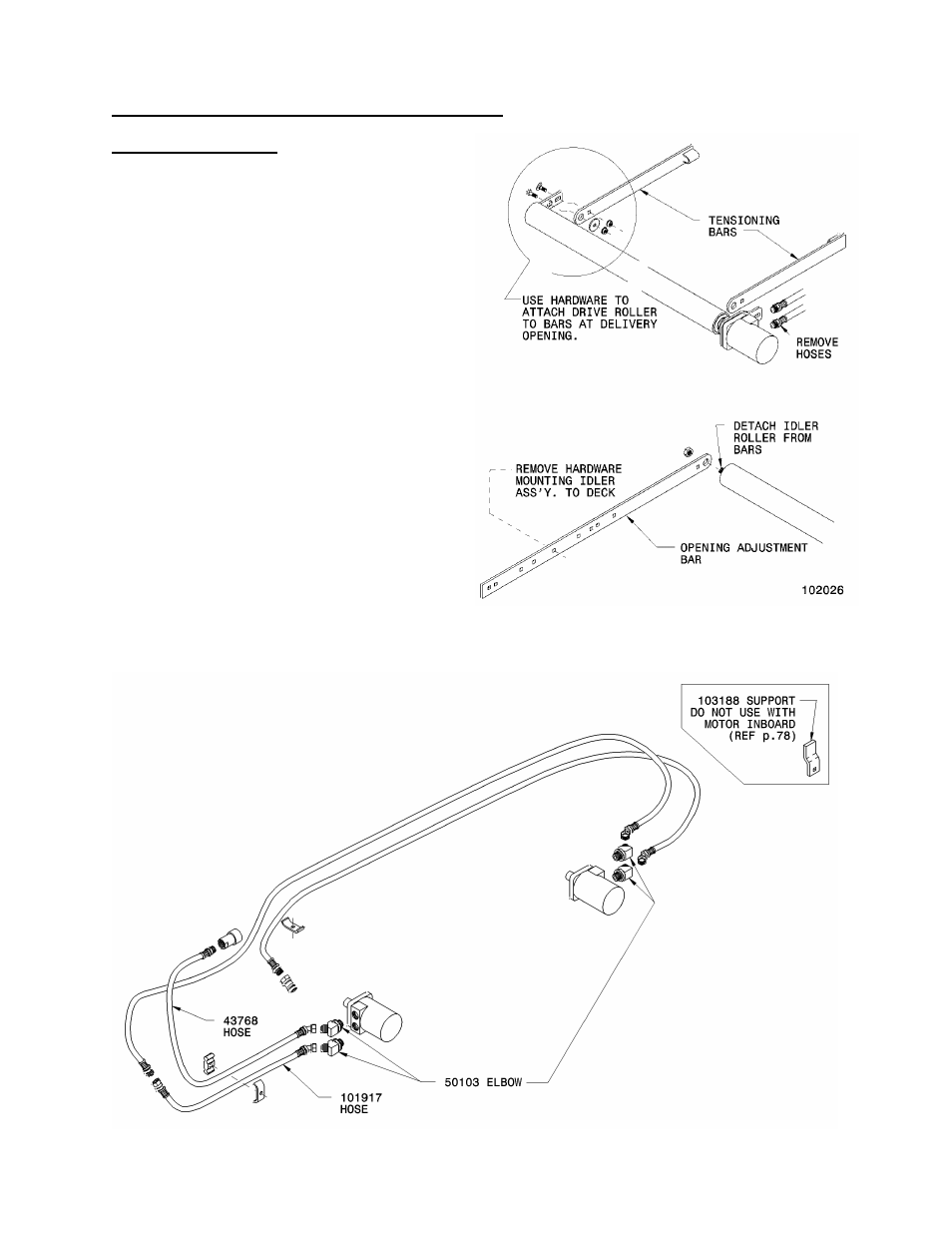

9. Route hoses as shown.
