Page 4

To open the (incoming) Bluetooth COM port in the OPN2001 PC Application first make sure the 'Show
all' option is checked to be able to select any COM port. After that select the (incoming) Bluetooth
Virtual COM port of your Bluetooth stack to select and open this port.

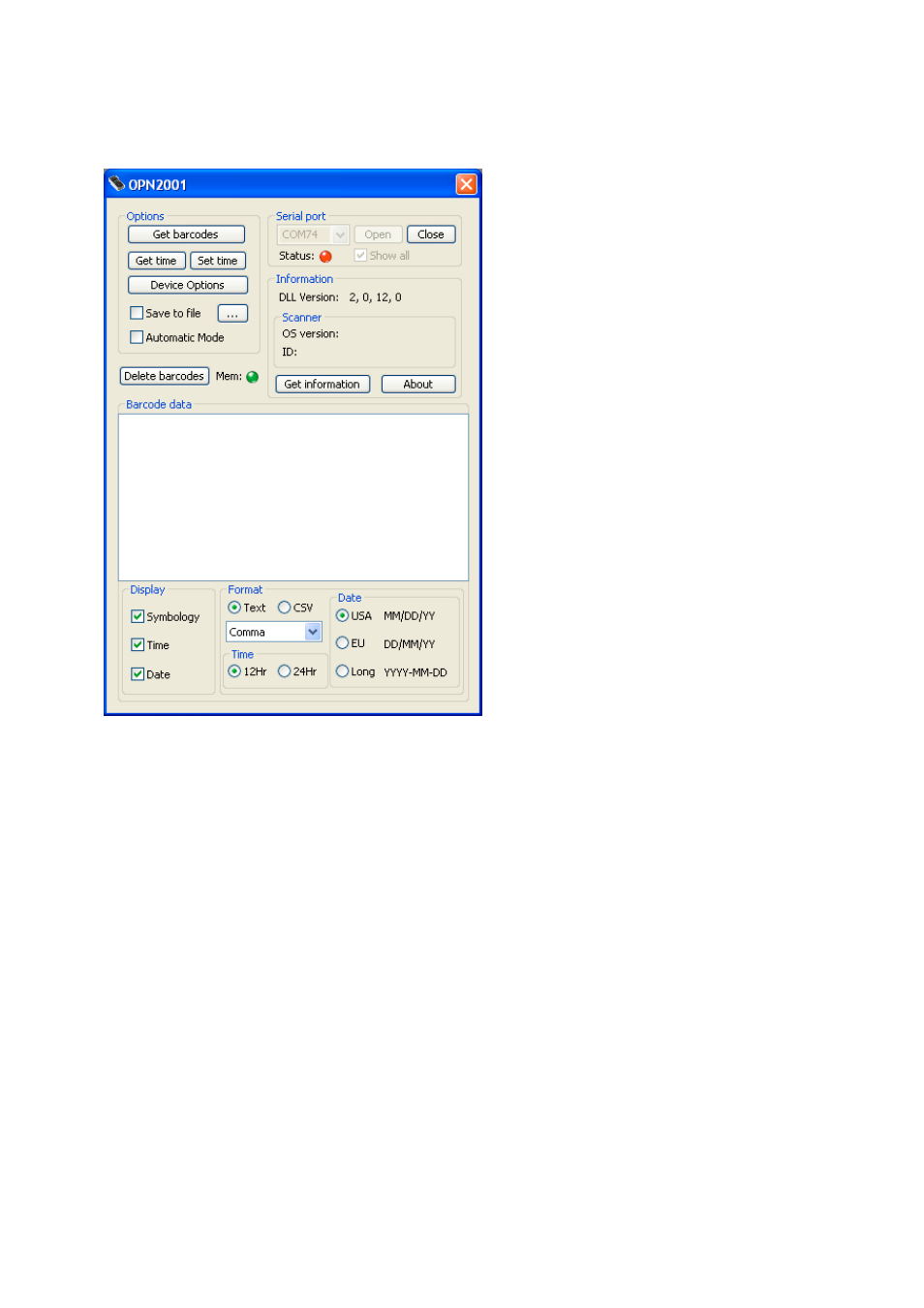

Screenshot of the OPN2001 PC application

After opening the Bluetooth COM port in the OPN2001 PC application the connection status indicator
will become

red

. This indicator will stay red as long as there's no active (Bluetooth) connection.

The first time you try to connect your OPN2002 to another Bluetooth device you will have to scan the
created Bluetooth address label. After that, it will also be possible to do a connection attempt by
pressing the trigger key for 5 seconds (until the blue LED starts blinking) or by reading the 'connect'
label, which can be found in chapter 2.3.1 of the Universal menu book.

If you authentication enabled (default) on your remote device, then you will be requested to enter a
PIN code (or passkey). The default PIN code of the OPN2002 equals the last 4 digits of the Bluetooth
address. These last 4 digits of the Bluetooth address are also shown in the Bluetooth name of the
OPN2002.

If you wish to use a different PIN code, then this is possible by using the 'Set/end PIN-code label'
menu options, which can be found in chapter 2.3.2 of the Universal menu book.
