4.2. Scanner LED Indicator State
Table 4 lists the state of the scanner based on the scanner LED.
Color Indication Description
Green Good Read A barcode was successfully decoded.
Red Blinking->Transmission
error There was a data transmission error to USB dongle.
Red Charging During charging on the cradle.
Green Green -> Red Changing color from green to red when the battery is full charged.
Red Blinking Battery voltage drop when pressing the trigger key and charging is
needed. Cannot read any barcodes.
Table 4: Scanner status—LED indicator state
4.3. Replacing the Handheld Scanner Battery
Figure 7 shows the procedure for removing and replacing the battery, which is located in
the handle of the handheld scanner.

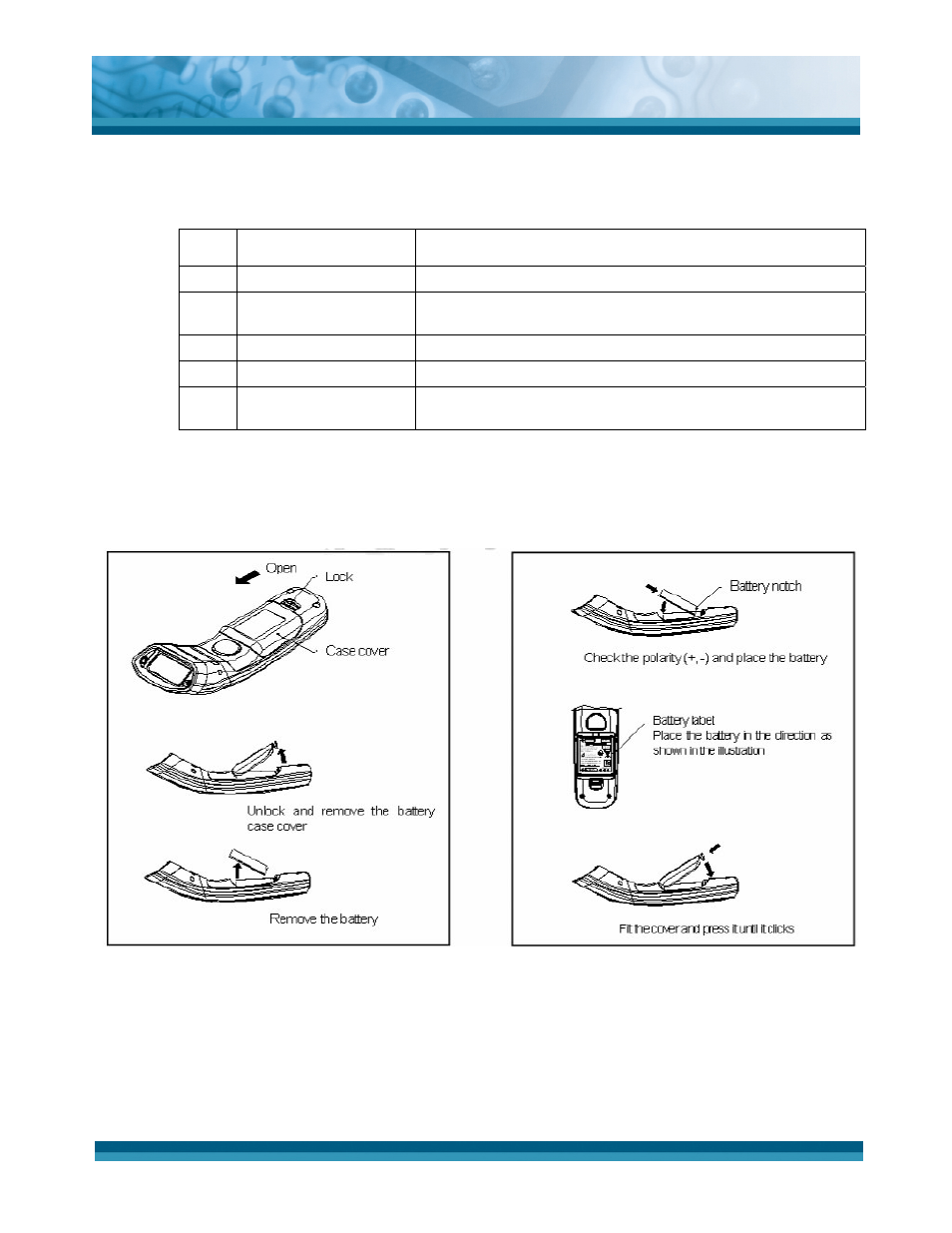

Figure 7: Replacing the scanner battery
The illustration on the left contains the procedure from removing the cover and then the
battery itself. The illustration on the right shows the process in reverse.
