3.3. CHG 4001 (Charging Cradle for OPI 4002 Handheld Scanner)
Figure 5 and Table 3 describe the handheld scanner charging cradle and its components.

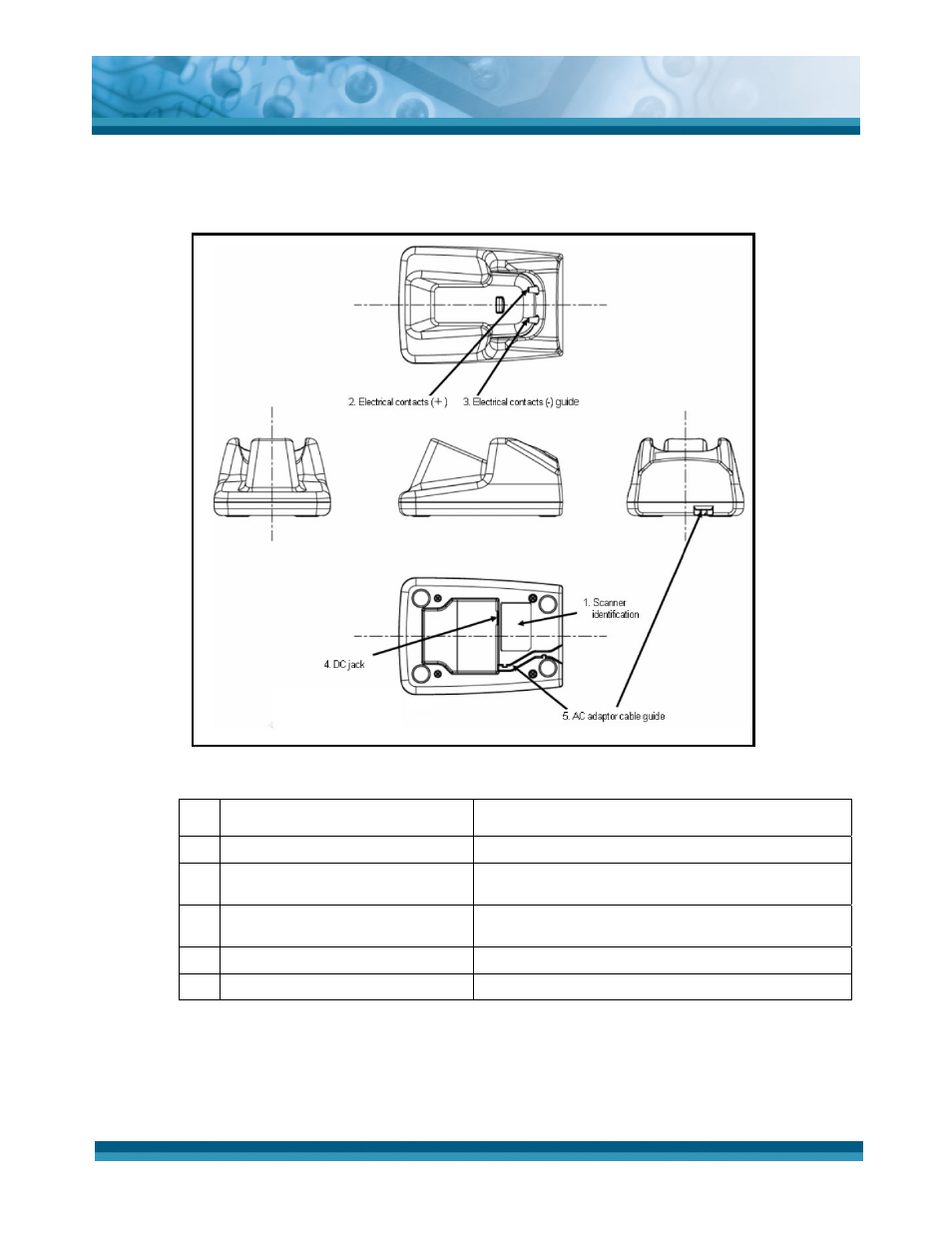

Figure 5: CHG 4001 charging cradle
ID# Name Functions
1. Scanner identification serial number Identifies product and serial number.
2. Electrical contacts (+) Positive contact feed powering the electrical contacts of
the scanner.
3. Electrical contacts (-) Negative contact feed powering the electrical contacts of
the scanner.
4. DC jack Connect the dedicated AC adaptor.
5. AC adaptor cable guide Install the dedicated AC adaptor cable along the guide.
Table 3: CHG 4001 charging cradle components
3.3.1. Battery Charging Time
The scanner battery must be fully charged before use. A completely discharged
battery can be fully recharged in approximately three hours.
