42

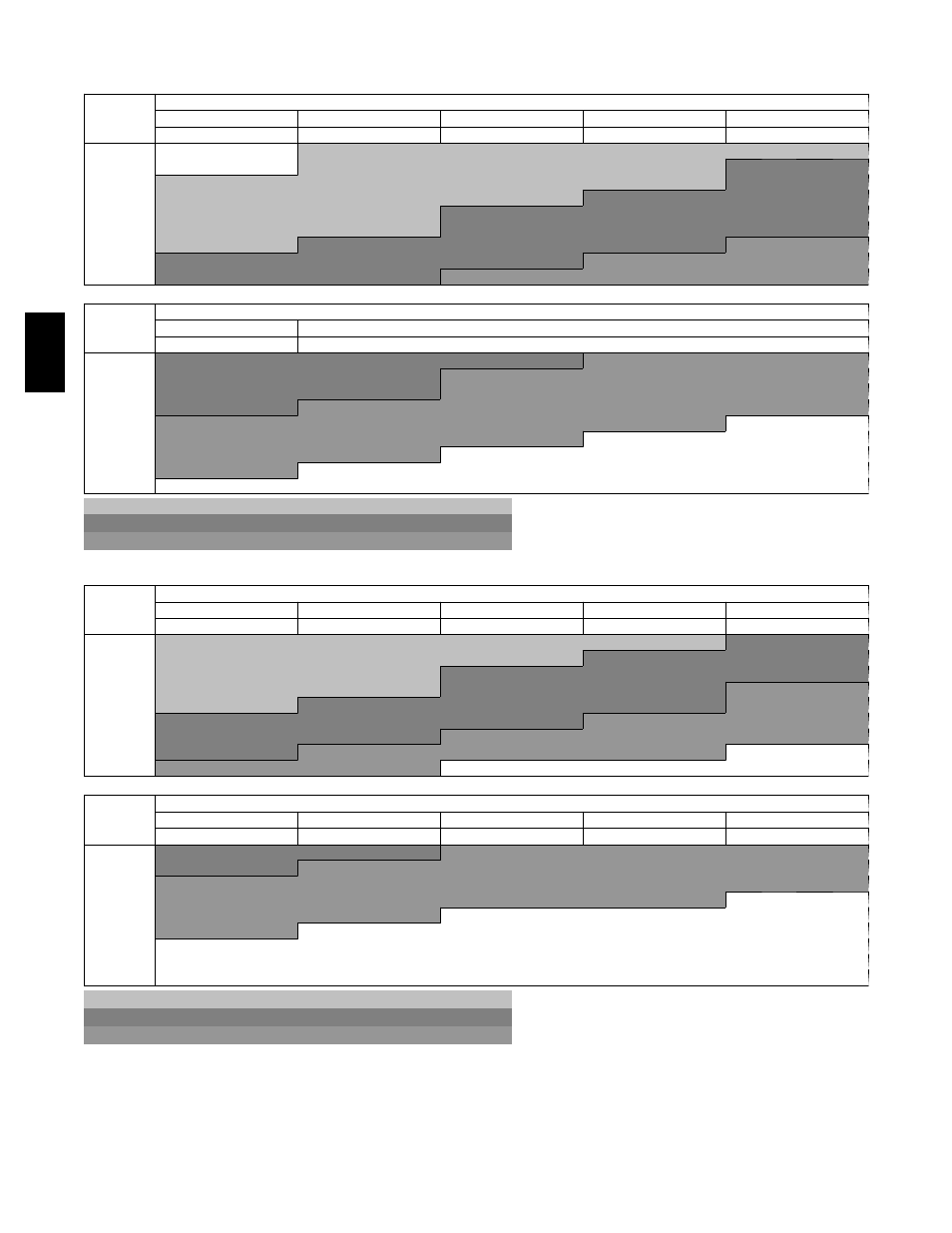

FAN PERFORMANCE (cont.)
Table 33 – 548J*07 6 TON HORIZONTAL SUPPLY
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (IN. WG)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 --- --- 927 0.66 1018 0.82 1100 0.98 1174 1.15
1950 --- --- 973 0.79 1061 0.95 1140 1.13 1213 1.31
2100 923 0.75 1019 0.92 1104 1.10 1182 1.29 1253 1.48
2250 974 0.90 1067 1.08 1149 1.27 1224 1.46 1294 1.66
2400 1026 1.06 1115 1.26 1195 1.46 1268 1.66 1336 1.87
2550 1079 1.25 1164 1.46 1241 1.67 1312 1.88 1379 2.10
2700 1132 1.46 1214 1.67 1289 1.90 1358 2.12 1422 2.35
2850 1186 1.69 1264 1.92 1336 2.15 1404 2.39 1467 2.63
3000 1240 1.94 1315 2.18 1385 2.43 1451 2.68 1512 2.93
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (IN. WG)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 1244 1.33 1308 1.51 1369 1.70 1427 1.90 1483 2.10
1950 1281 1.49 1345 1.68 1405 1.88 1462 2.09 1517 2.30
2100 1320 1.67 1382 1.87 1441 2.08 1498 2.29 1552 2.51
2250 1359 1.87 1420 2.08 1479 2.29 1534 2.51 1587 2.74
2400 1400 2.09 1460 2.31 1517 2.53 1572 2.76 --- ---
2550 1441 2.33 1500 2.55 1557 2.79 --- --- --- ---
2700 1483 2.59 1541 2.83 --- --- --- --- --- ---
2850 1527 2.87 --- --- --- --- --- --- --- ---
3000 --- --- --- --- --- --- --- --- --- ---
Std static motor and drive (belt drive)
Med static motor and drive (belt drive)
High static motor and drive (belt drive)
Table 34 – 548J*07 6 TON VERTICAL SUPPLY
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (IN. WG)
0.2 0.4 0.6 0.8 1.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 907 0.63 1006 0.80 1092 0.97 1169 1.14 1239 1.32
1950 965 0.77 1060 0.95 1143 1.13 1218 1.32 1287 1.51
2100 1024 0.93 1115 1.12 1195 1.32 1268 1.52 1335 1.72
2250 1083 1.11 1170 1.32 1248 1.53 1319 1.74 1385 1.96
2400 1143 1.32 1227 1.54 1302 1.76 1371 1.99 1435 2.22
2550 1203 1.55 1284 1.78 1357 2.02 1424 2.26 1487 2.50
2700 1264 1.81 1342 2.06 1412 2.31 1478 2.56 1539 2.82
2850 1326 2.09 1400 2.36 1469 2.62 1532 2.89 --- ---
3000 1387 2.41 1459 2.69 --- --- --- --- --- ---
CFM
AVAILABLE EXTERNAL STATIC PRESSURE (IN. WG)
1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
1800 1304 1.51 1365 1.69 1422 1.88 1477 2.08 1528 2.28
1950 1350 1.71 1410 1.91 1467 2.11 1520 2.31 1572 2.52
2100 1398 1.93 1457 2.14 1512 2.35 1565 2.57 1616 2.79
2250 1446 2.18 1504 2.40 1559 2.62 1611 2.85 --- ---
2400 1496 2.45 1552 2.68 --- --- --- --- --- ---
2550 1546 2.75 --- --- --- --- --- --- --- ---
2700 --- --- --- --- --- --- --- --- --- ---
2850 --- --- --- --- --- --- --- --- --- ---
3000 --- --- --- --- --- --- --- --- --- ---
Std static motor and drive (belt drive)
Med static motor and drive (belt drive)
High static motor and drive (belt drive)
548J
