Model NE-9000
Publication #1200-04 30
11.3.17 'bEEP': Beep
Sounds a short beep.

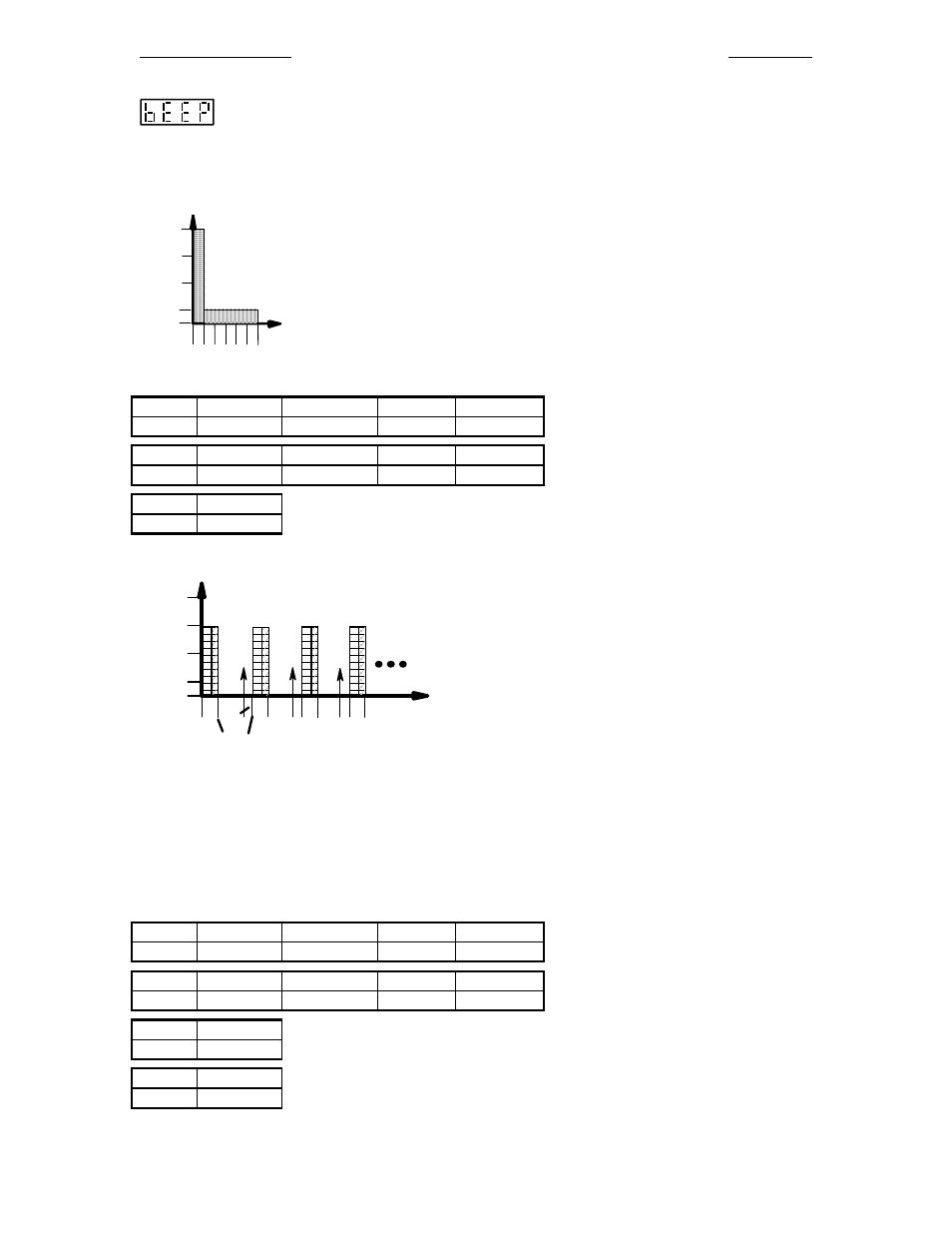

11.4 Pumping Program Examples
11.4.1 Example 1: 2 Step Rate
ml Dispensed
0 5 30
0
2.5
500
m
l/
h
r
R
a
te
Dispense 5.0 ml at 500 ml/min, and then dispense 25.0 ml at 2.5 ml/min. Then stop the pump.
Phase Function Rate Volume Direction
1 RATE 500 ml/min 5.0 ml Dispense
Phase Function Rate Volume Direction
2 RATE 2.5 ml/min 25.0 ml Dispense
Phase Function
3 STOP
11.4.2 Example 2: Repeated Dispenses with Suck Back
m
l/
h
r
R
a
te
Time
0
0
750
5:00
:30
Dispense 2.0 ml with a 5 minute pause between dispenses. In addition, after each dispense, a volume of
0.25 ml is sucked back to prevent dripping. Also, 30 seconds before the end of the pause interval, a beep
is sounded to alert the operator to prepare for the next dispense.
Starting with the second dispense, 0.25 is added to the volume dispensed to compensate for the sucked
back volume of the previous dispense. By changing the last Phase to a [LP:nn] function, the total number
of dispenses can be set.
When entering a function with associated data, such as with the ‘Pause’ in Phase 5, or the ‘Loop’ in Phase
6, the function is entered in 2 steps. First select the function and store it. Then enter the associated data.
Phase Function Rate Volume Direction
1 RATE 750 ml/min 2.0 ml Dispense
Phase Function Rate Volume Direction
2 RATE 750 ml/min 0.25 ml Withdraw
Phase Function
3 LP:ST
Phase Function
4 LP:ST
