4.2. Install New Tubing
4.2.1. Prepare New Tubing
1) Wrap 2 tie wraps 5 3/8” apart (136 millimeters apart) on the new Tubing.
Tie wrap knots facing the same direction

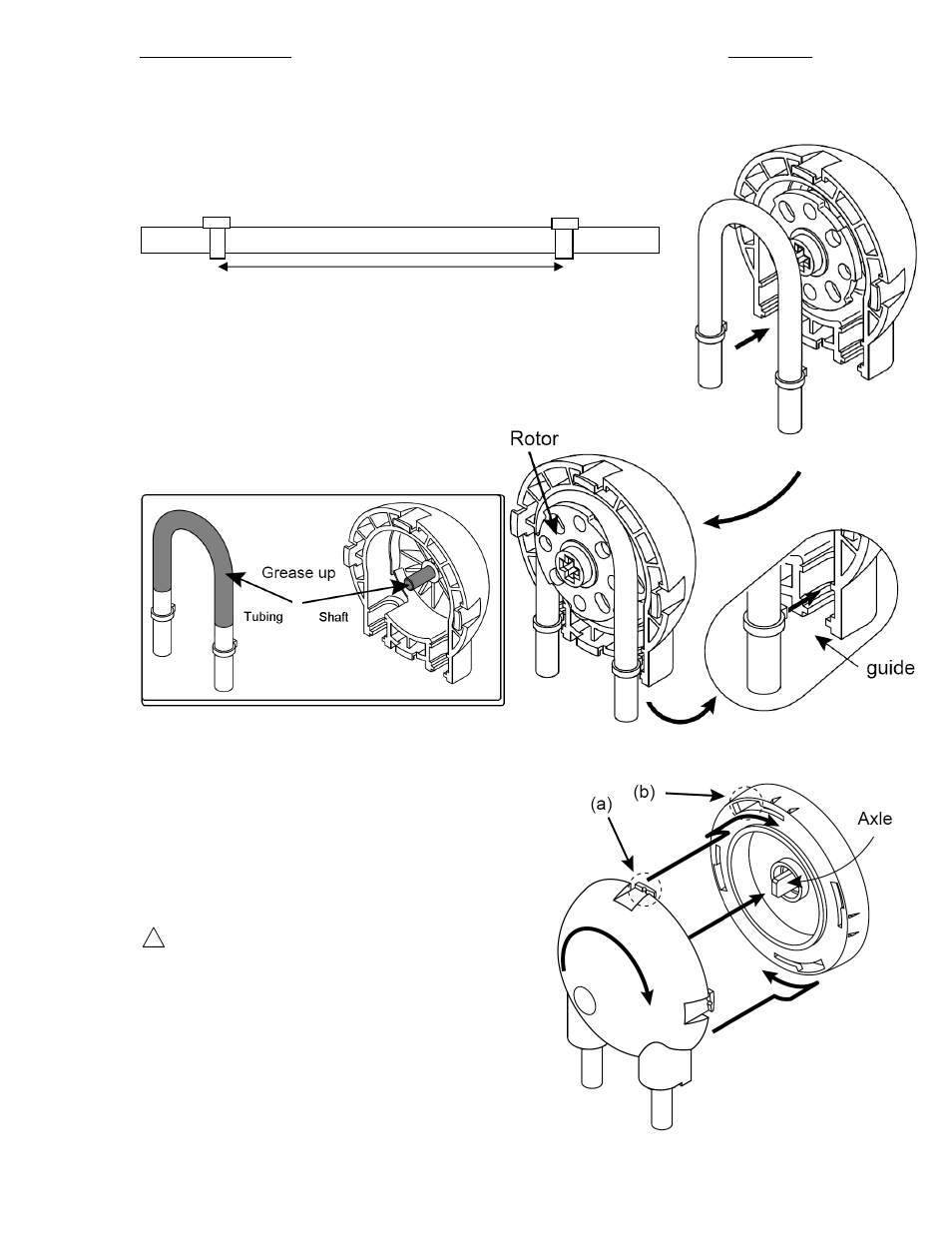

4.2.2. Install New Tubing
2) Remove Rotor
3) Add grease to the Cassette shaft and the surface of New Tubing.
( See gray area below )
4) Return Rotor to shaft of Cassette.
5) With both knots of the tubing facing the
Cassette install one knot into the guide.
6) Pull out the Rotor a little bit and place
Tubing between the Cassette and the Roller.
7) Install the other knot into the guide.
4.2.3. Install Cassette to Base
1) Rotate Rotor so that it fits into axle.
2) Attach Cassette onto Base of Pump by
placing (a) into (b).
3) Turn Cassette clockwise until it stops.
Verify that each indent of the Cassette is
matched perfectly with each marking on
the Base of Pump.
4) Prime Pump before Starting Dispense
Cycle.
! Warning
Be careful not to be cut or injured
by the edge of the Pump parts.
