DCA150SSJU3 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/01/10) — PAGE 51
GENERATOR START-UP PROCEDURE (MANUAL)
3. If any abnormalities exists, the warning and emergency
stop lamps on the Engine Operating Panel will be lit.
4. Place the MPEC Control Switch (Figure 45) in the OFF/
Reset position.
5. Place the Diagnostic ON/OFF switch (Figure 43) in the
ON position. Verify that an Active Fault Code message
is being displayed (Diagnostic Display Panel). The fault
code message will continued to be displayed until the
fault has been corrected. Figure 43 illustrates a typical
example of an active fault code message (Low Radiator
Coolant).

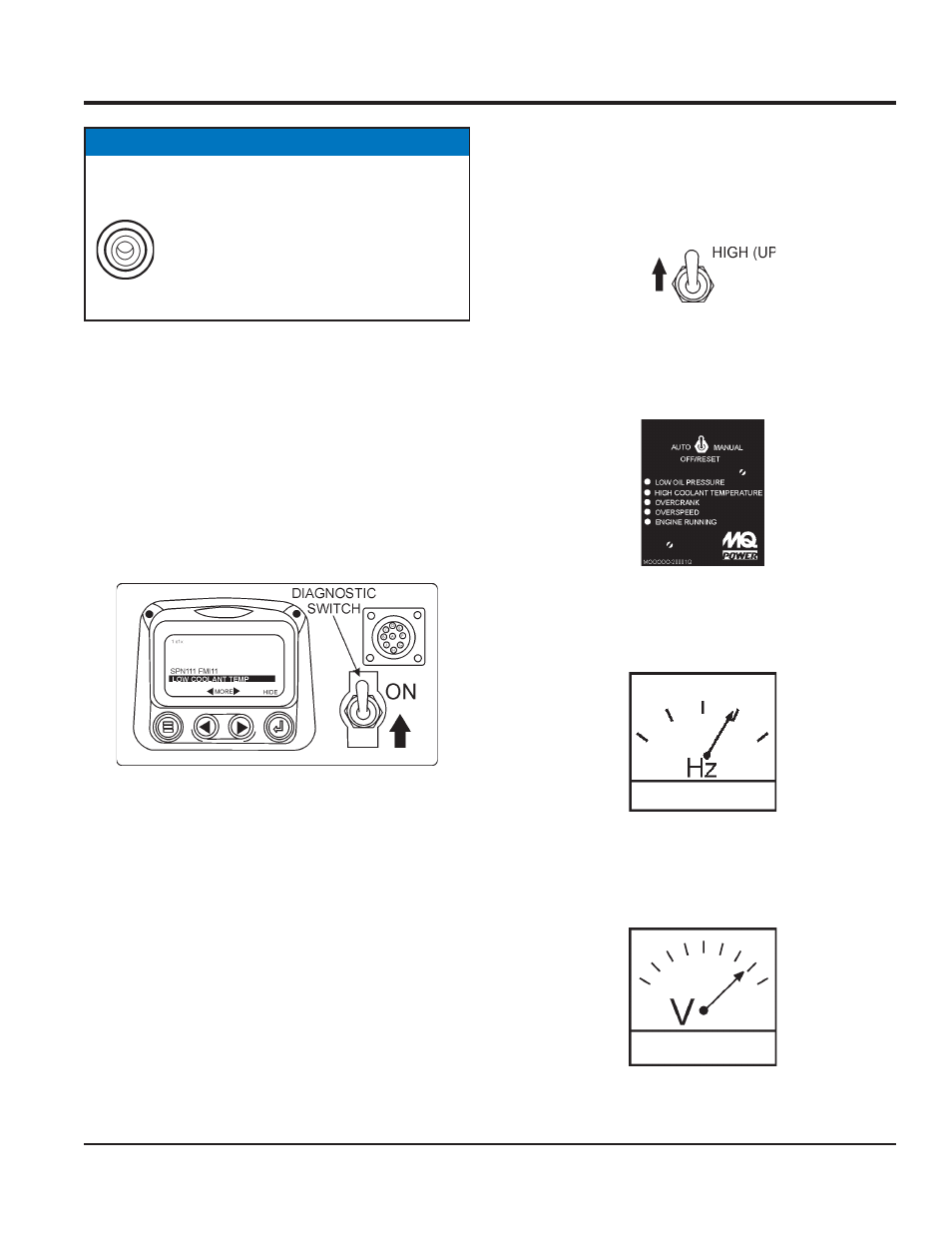

Figure 43. Active Fault Code Message
6. In a situation where several engine problems occur
simultaneously, the word “MORE” appears above the
arrow buttons indicating that there are more fault codes
that need to be viewed. Use the arrow buttons to scroll
to the next active fault code.
If desired, the type of fault code, cause of error and
the countermeasures of the error can be referenced
in a separate engine operator’s manual.
7. Before the engine can be started, the engine fault must
be corrected. Also observe that there are no active
fault codes displayed on the diagnostic panel. If no
fault codes are displayed, place the diagnostic switch
in the OFF position.
NOTICE
When the MPEC Control switch is placed in the manual
position, preheating of the glow plugs will begin
automatically and the preheat lamp will stay
lit until the glow plugs are warmed. When the
preheat lamp goes off this signals the
completion of the preheating cycle and the
starting of the engine.
8. To restart the engine due to error codes, place the
MPEC control switch (Figure 45) in the manual
position.
9. If the engine is running smoothly, place the engine
speed switch (Figure 44) in the “HIGH” (up) position.
Figure 44. Engine Speed Switch (High)
10. Verify that the engine running status LED on the
MPEC module (Figure 45) is lit (ON) after the engine
has started.
Figure 45. Engine Running (LED ON)
11. The generator’s frequency meter (Figure 46) should be
displaying the 50 cycle output frequency in HERTZ.
Figure 46. Frequency Meter
12. The generator’s AC-voltmeter (Figure 47) will display
the generator’s output in VOLTS.
Figure 47. Frequency Meter
