DCA150SSJU3 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/01/10) — PAGE 21

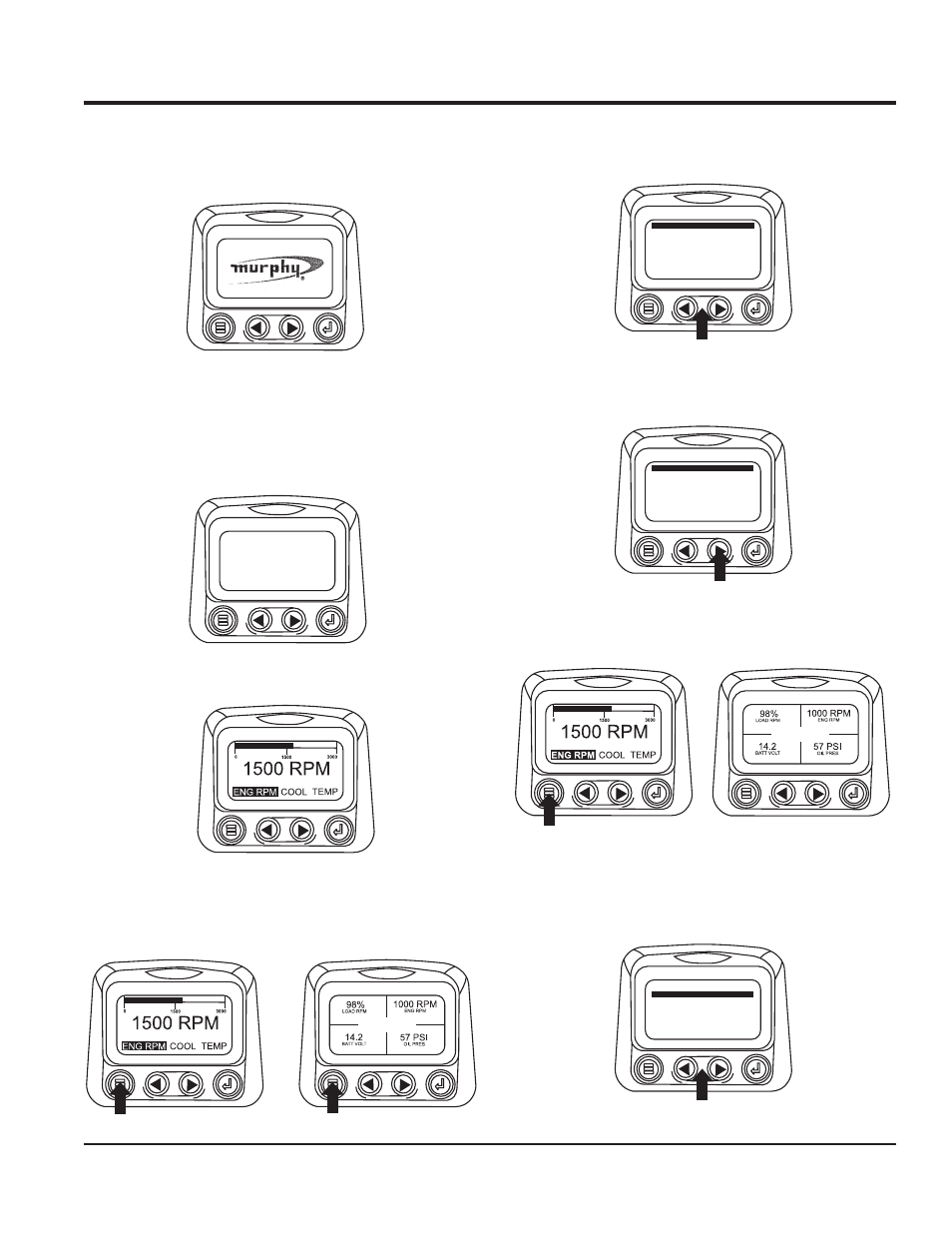

DIAGNOSTIC DISPLAY
First Time Start-Up
1. When power is fi rst applied to the diagnostic display,
the “Logo” is displayed.
2. The “Wait to Start” message will be displayed for
engines with a pre-startup sequence. Once the “Wait
to Start” message is no longer displayed the operator
may start the engine. Note: Displays only when SAE
J1939 message is supported by engine manufacturrg.
3. Once the engine has started the single engine
parameter is displayed.
Main Menu Navigation
1. Starting at the single or four engine parameter display,
touch “Menu”.
WAIT TO
START
PREHEAT
2. The The fi rst seven items of the “Main Menu” will be
displayed. Touching the “Arrow Buttons” will scroll
through thr menu selection.
3. Touching the right arrow button will scroll down to reveal
the last items of “Main Menu” screen highlighting the
next item down.
4. Touch the Arrows” to scroll to the desired menu item
or touch “Menu” to exit the Main menu and return to
the engine parameter display.
Selecting a Language
1. Starting at the main menu display use the “Arrows to
scroll to the “Language” menu and once highlighted
touch the “Enter” button.
GO TO 1-UP DISPLAY
LANGUAGES
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
G
ADJUST BACKLIGHT
ADJUST CONTRAST
UTILITIES
GO TO 1-UP DISPLAY
G
STORED CODES
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
LANGUAGES
