PAGE 22 — DCA150SSJU3 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/01/10)

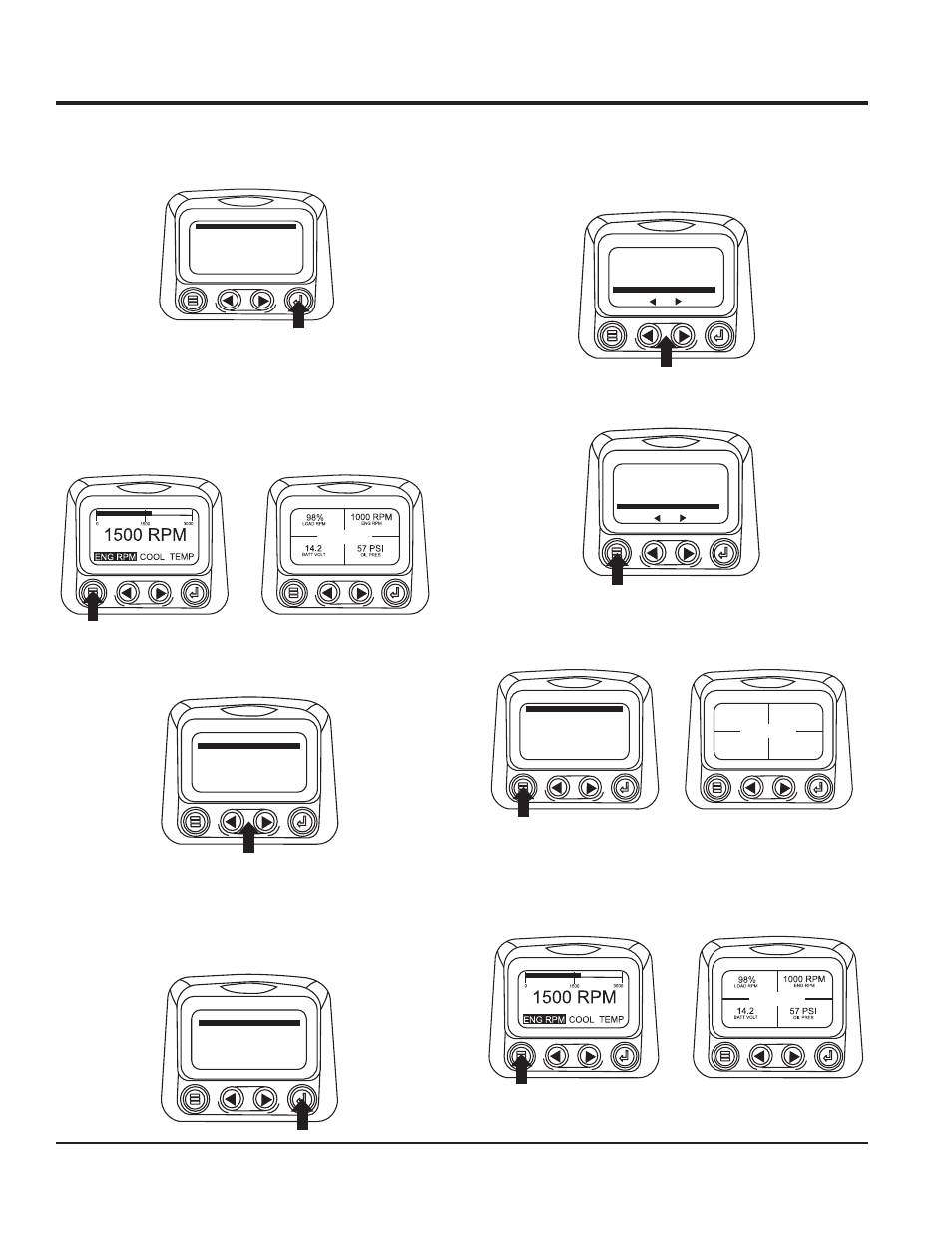

2. The language choices will be displayed. Use the
“Arrow” buttons to scroll through the selections and
touch “Enter” to make a selection.
3. Now that you have selected the language, touch the
“Menu” button to return to the main menu display.
Stored Fault Codes
1. Starting at the single or the four engine parameter
display touch the “Menu button”.
2. The main menu will pop up on the display. Use the
“Arrow Buttons” to scroll through the menu until the
Stored Fault Codes is highlighted.
3. Once the “Stored Fault Codes” menu item has been
highlighted touch the “Enter Button” to view the “Stored
Fault Codes” (when applicable, consult engine or
transmission manufacturer for SAE J1939 supported
parameters
ENGLISH
ESPANOL
FRANCAIS
DEUTSCH
GO TO 1-UP DISPLAY
G
ADJUST BACKLIGHT
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
STORED CODES
GO TO 1-UP DISPLAY
G
ADJUST BACKLIGHT
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
STORED CODES
4. f the word “MORE” appears above the “Arrow Buttons”
there are more stored fault codes that may be viewed.
Use the “Arrow Buttons” to scroll to the next Stored
Diagnostic Code.).
5. Touch the “Menu Button to return to the main menu.
6. Touch the “Menu Button” to exit the Main menu and
return to the engine parameter display.
Engine Confi guration Data
1. Starting at the single or four engine parameter display
touch the “Menu Button”.
SPN110 FMI10
HIGH COOLANT TEMP
1 of x
MORE HIDE
SPN110 FMI10
HIGH COOLANT TEMP
1 of x
MORE HIDE
GO TO 1-UP DISPLAY
ENGINE CONF
SETUP 1-UP DISPLAY
SETUP-4-UP DISPLAY
SELECT UNITS
STORED CODES
G
ADJUST BACKLIGHT
98%
14.2 57 PSI
1000 RPM
LOAD RPM
BATT VOLT
ENG RPM
OIL PRES
DIAGNOSTIC DISPLAY
