DCA150SSJU3 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/01/10) — PAGE 29
DIAGNOSTIC DISPLAY

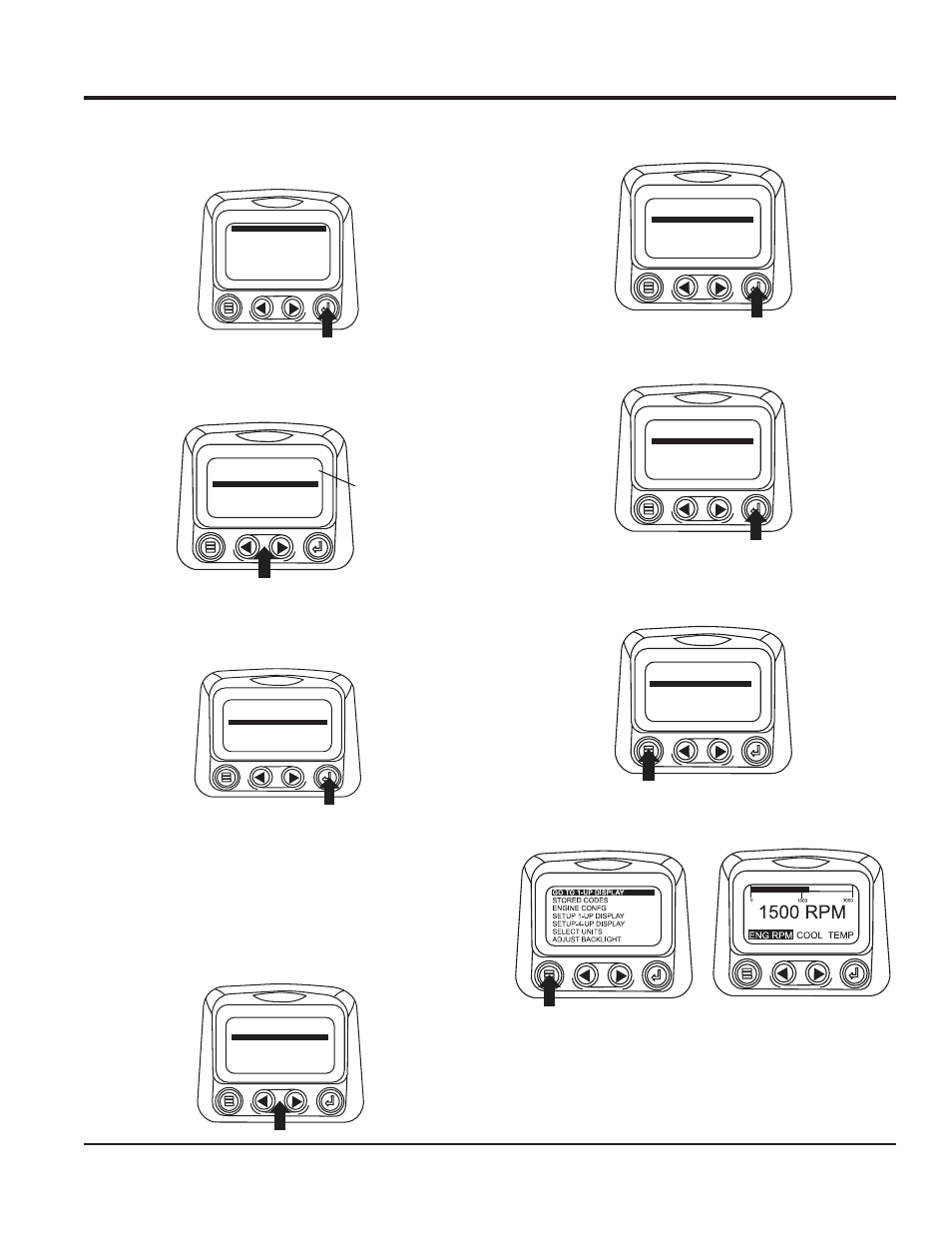

11. Touch the “Enter Button” to deselect the selected
parameter removing it from the list of parameters being
displayed on the 1-up display.
12. Use the “Arrow Button” to scroll and highlight the
desired parameter that has not been selected for
display.
13. Touch the “Enter Button” to select the highlighted
parameter for inclusion in the Single Engine Parameter
Display.
14. Continue to scroll and select additional parameters for
the custom 1-up Display. Touch the “Menu Button” at
any time to return to the “Custom Setup” menu.
15. Automatic Scan- Selecting the scan function will cause
the 1-Up Display to scroll through the selected set of
parameters one at a time. Use the “Arrow Buttons” to
scroll to the “Automatic Scan” function.
ENGINE SPEED
PERCENT LOAD AT CURRENT RPM
ENGINE OIL PRESSURE
ENGINE COOLANT TEMPERATURE
1
3
2
ENGINE SPEED
PERCENT LOAD AT CURRENT RPM
ENGINE OIL PRESSURE
ENGINE COOLANT TEMPERATURE
2
1
Note that the numbers
now indicate the new order
of display for the parameters.
ENGINE SPEED
PERCENT LOAD AT CURRENT RPM
ENGINE OIL PRESSURE
ENGINE COOLANT TEMPERATURE
2
1
3
USE DEFAULTS
CUSTOM SETUP
AUTOMATIC SCAN OFF
16. Touching the “Enter Button” toggles the “Automatic
Scan” function on.
17. Touching the “Enter Button” again toggles the
“Automatic Scan” function off.
18. Once the “Use Defaults”, “Custom Setup” and
“Automatic Scan” functions have been set touch the
“Menu Button” to return to the main menu.
19. Touch the “Menu Button” to exit the Main menu and
return to the engine parameter display.
USE DEFAULTS
CUSTOM SETUP
AUTOMATIC SCAN ON
USE DEFAULTS
CUSTOM SETUP
AUTOMATIC SCAN OFF
USE DEFAULTS
CUSTOM SETUP
AUTOMATIC SCAN ON
