PAGE 38 — DCA150SSJU3 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (02/01/10)
OUTPUT TERMINAL PANEL FAMILIARIZATION
OUTPUT TERMINAL PANEL
The Output Terminal Panel (Figure 7) shown below is
located on the right-hand side (left from control panel) of
the generator. Lift up on the cover to gain access to
receptacles and terminal lugs.
NOTICE
Terminal legs “O” and “Ground” are considered bonded
grounds.
OUTPUT TERMINAL FAMILIARIZATION
The “Output Terminal Panel ” (Figure 6) is provided with
the following:
 Three 200/100V output receptacles @ 50 amp
 Three Circuit Breakers @ 50 amps
 Two 100V GFCI receptacles @ 20 amp
 Two GFCI Circuit Breakers @ 20 amps
 Five Output Terminal Lugs ( U, V, W, O, Ground)

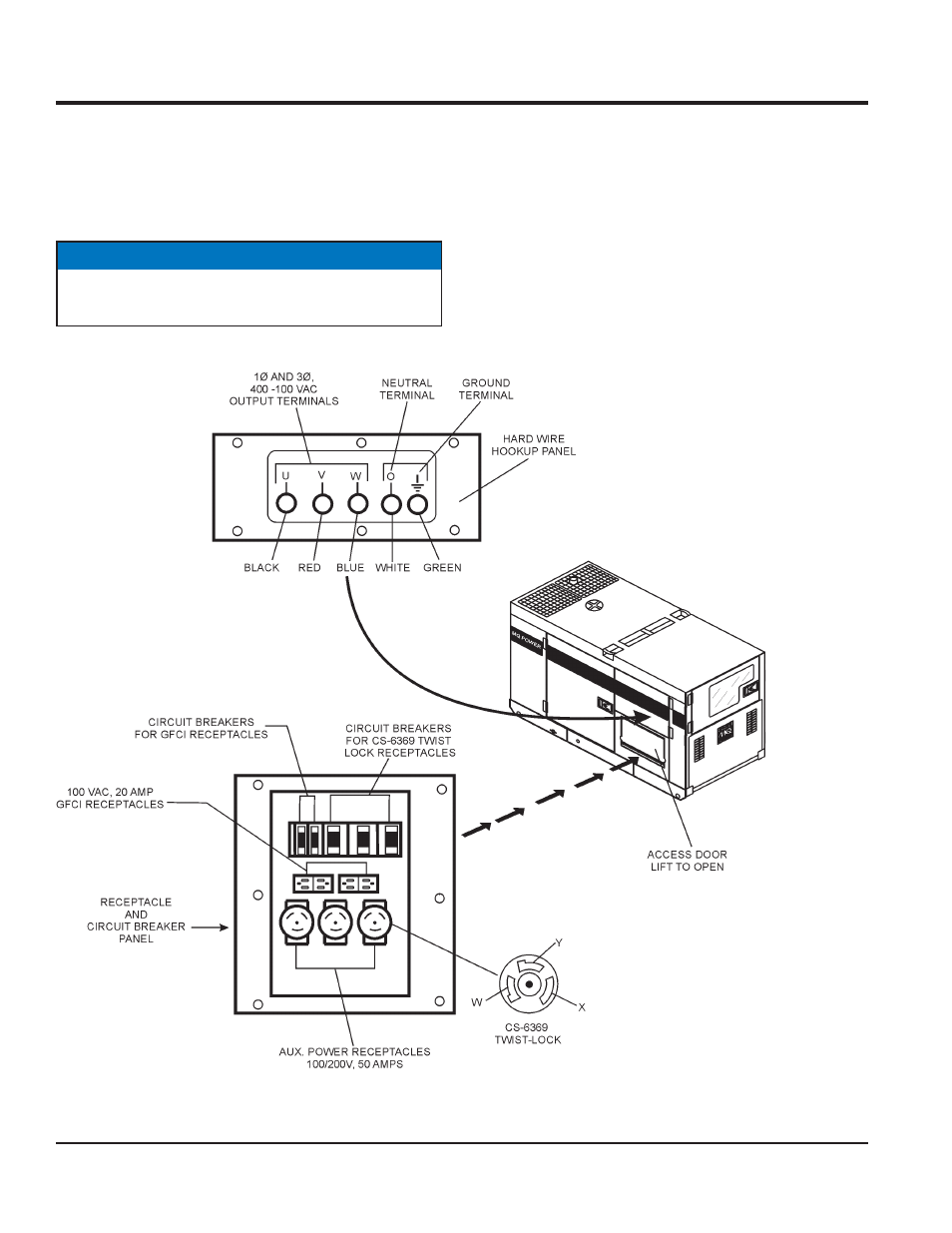

Figure 7. Output Terminal Panel
