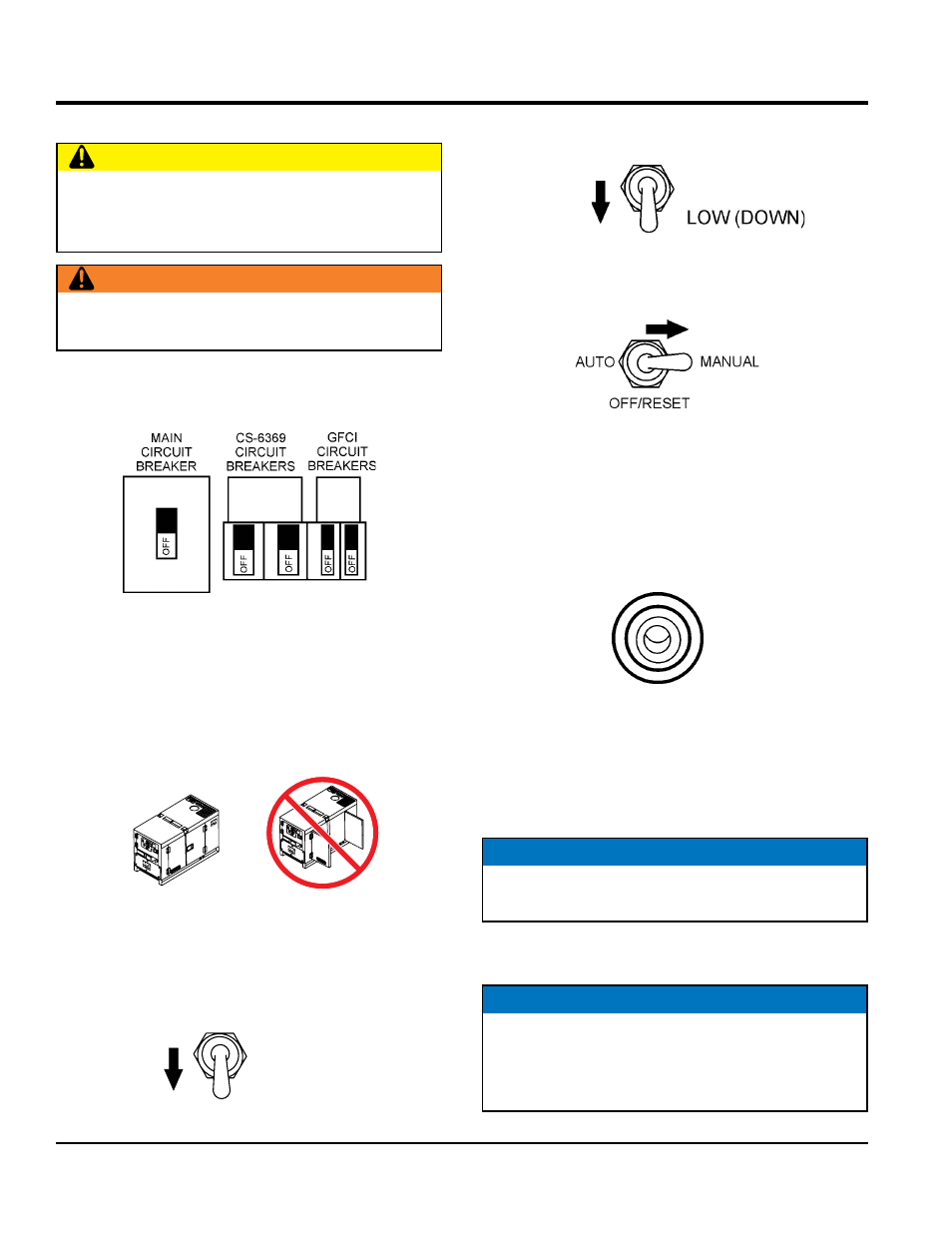

page 32 — dca20SpXU4F Servpro™ • operation and partS manUal — rev. #0 (07/16/14)
GeNeratOr start-Up prOCeDUre (MaNUaL MODe)
BeFore Starting
1. Place the main, g.F.c.i., and aux. circuit breakers
(Figure 25) in the OFF position prior to starting the
engine.
Figure 25. Main, Aux. and GFCI
Circuit Breakers (OFF)
2. Connect the load to the receptacles or the output
terminal lugs as shown in Figure 11. Tighten terminal
nuts securely to prevent load wires from slipping out.
3. Close all engine enclosure doors (Figure 26).
Figure 26. Engine Enclosure Doors
Starting (manUal)
1. On the control box, place the diagnostic switch (Figure 28)
in the OFF (down) position.
Figure 27. Diagnostic Switch (High)
caUtion
The engine’s exhaust contains harmful emissions.
alWaYS have adequate ventilation when operating.
Direct exhaust away from nearby personnel.
Warning
never manually start the engine with the main, gFci
or auxiliary circuit breakers in the on (closed) position.
INCORRECT CORRECT
OFF (DOWN)
2. Place the engine speed switch (Figure 28) in the LOW
(down) position.
Figure 28. Engine Speed Switch (Low)
3. Place the Auto-Off/Reset Manual Switch in the
manUal position to start the engine (Figure 29).
Figure 29. Auto-Off/Reset Manual;Switch
(Manual Position)
4. Depending on the temperature of the coolant (cold
weather conditions), the pre-heat lamp (Figure 30) will
light ( on) and remain on until the pre-heating cycle has
been completed. After completion of the pre-heating
cycle, the light will go OFF and the engine will start up
automatically
Figure 30. Pre-Heat Lamp
5. Once the engine starts, let the engine run for 1-2
minutes (let engine idle longer in cold weather
conditions). Listen for any abnormal noises. If any
abnormalities exist, shut down the engine and correct
the problem.
6. Verify that the engine started status LED on the ECU
controller is on.
NOTICE
In cold weather conditions warm up the engine 5-7
minutes before placing into operation.
NOTICE
If the engine fails to start after 3 attempts, the over-
crank LED on the ECU controller will turn on and the
Auto-Off/Reset Switch must be place in the Off/Reset
position before the engine can be restarted.
