page 28 — dca20SpXU4F Servpro™ • operation and partS manUal — rev. #0 (07/16/14)
OUtpUt terMiNaL paNeL CONNeCtiONs
circUit BreakerS
To protect the generator from an overload, a 3-pole, 90
amp, main circuit breaker is provided to protect the U,o,
and v output terminals from overload. In addition two
single-pole, 20 amp gFci circuit breakers are provided to
protect the GFCI receptacles from overload. Two 50 amp
load circuit breakers have also been provided to protect the
auxiliary receptacles from overload. Make sure to switch
all circuit breakers to the OFF position prior to starting
the engine.

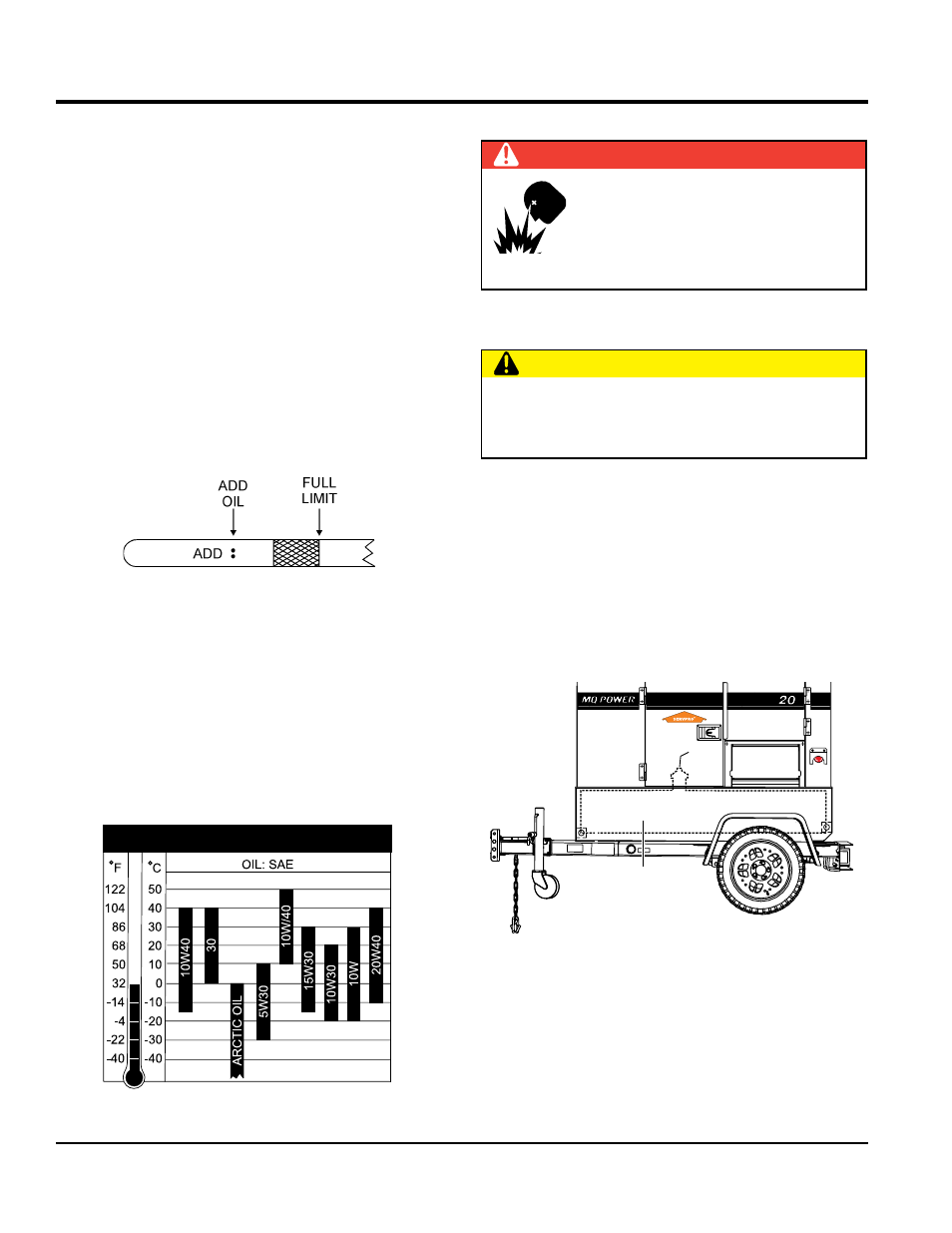

lUBrication oil
Fill the engine crankcase with lubricating oil through the
filler hole, but do not overfill. Make sure the generator is
level and verify that the oil level is maintained between the
two notches (Figure 17) on the dipstick. See Table 7 for
proper selection of engine oil.
Figure 17. Engine Oil Dipstick
When checking the engine oil, be sure to check if the oil is
clean. If the oil is not clean, drain the oil by removing the
oil drain plug, and refill with the specified amount of oil as
outlined in the isuzu engine owner’s manual. Oil should
be warm before draining.
Delo® engine oil is the recommended engine oil for this
generator. When replacing engine oil please refill using
Delo® 400 LE SAE 15W-40 (API CJ-4) engine oil.
table 7. recommended motor oil
FUel cHeck
Refilling the Fuel System
This generator has an internal fuel tank (Figure 18) located
inside the enclosure and may also be equipped with a trailer
mounted fuel tank. alWaYS fill the fuel tank with clean fresh
#2 diesel fuel. do not fill the fuel tank beyond its capacity.
Pay attention to the fuel tank capacity when replenishing
fuel. The fuel tank cap must be closed tightly after filling.
Handle fuel in a safety container. If the container does not
have a spout, use a funnel. Wipe up any spilled fuel
immediately.
Figure 18. Fuel Tank
danger
Fuel spillage on a hot engine can cause
a fire or explosion. If fuel spillage occurs,
wipe up the spilled fuel completely to
prevent fire hazards. never smoke
around or near the generator.
caUtion
onlY properly trained personnel who have read
and understand this section should refill the fuel tank
system.
INTERNAL
FUEL TANK
FUEL
CAP
