dca20SpXU4F Servpro™ • operation manUal — rev. #0 (07/16/14) — page 27
OUtpUt terMiNaL paNeL CONNeCtiONs
Uov terminal oUtpUt voltageS
240/120V outout voltages can be obtained using the output
terminal lugs.
The voltage regulator (VR), Figure 15 allows the user to
increase or decrease the selected voltage.
1Ø-240 output terminal voltage
1. Connect the load wires to the output terminal lugs as
shown in Figure 14.

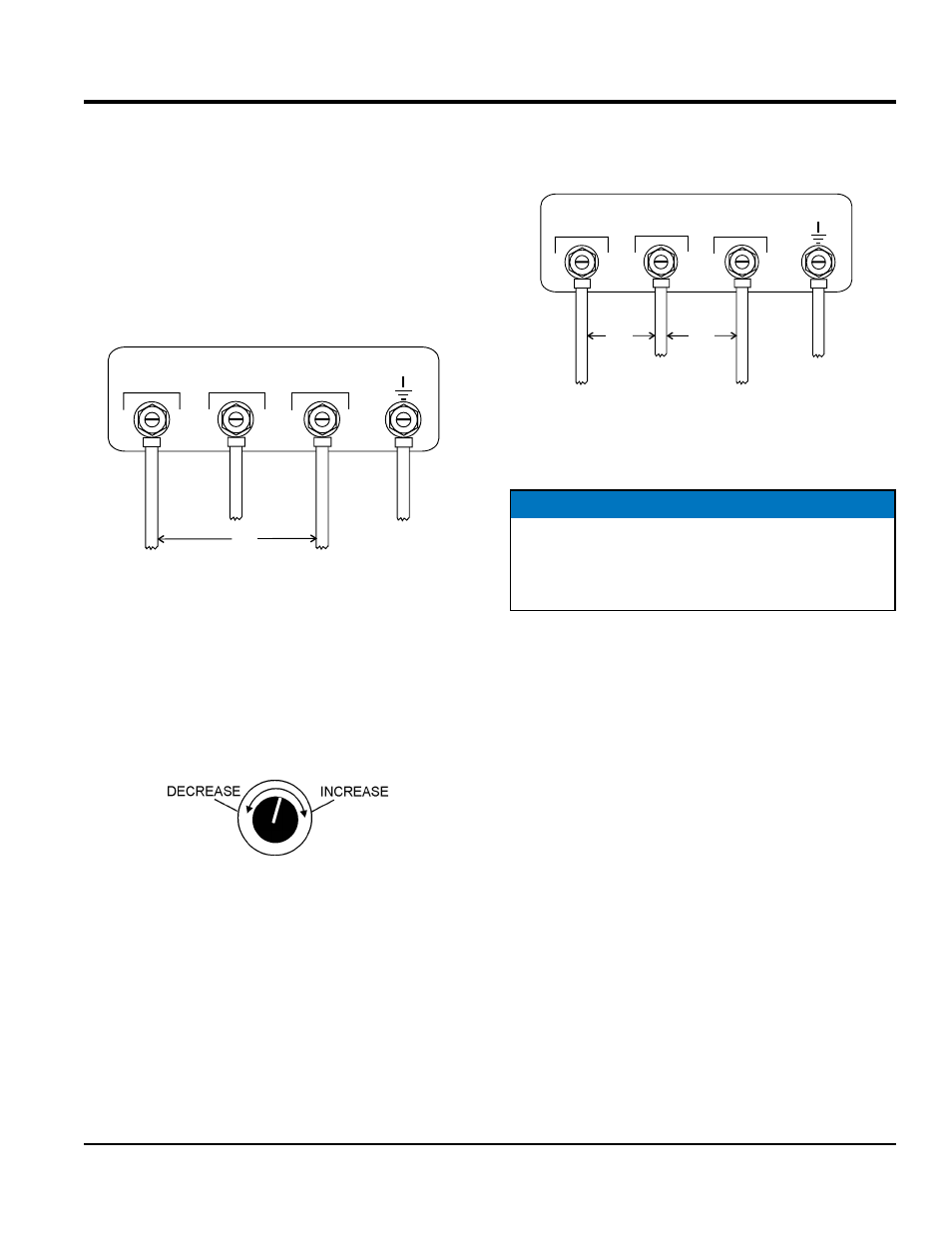

Figure 14. Output Terminal Lugs
1Ø-240V Connections
2. Turn the voltage regulator knob (Figure 15) clockwise
to increase voltage output, turn counterclockwise to
decrease voltage output. Use voltage regulator
adjustment knob whenever fine tuning of the output
voltage is required.
Figure 15. Voltage Regulator Knob
U O V
BLACK RED WHITE GREEN
GROUND
CONNECTION
BE USED
AT ALL TIMES
MUST
240V
SINGLE-PHASE
240 VAC (LOAD CONNECTIONS)
1Ø-120 output terminal voltage voltage
1. Connect the load wires to the output terminal lugs as
shown in Figure 16.
Figure 16. Output Terminal Lugs
1Ø-120V Connections
2. Turn the voltage regulator knob (Figure 15) clockwise
to increase voltage output, turn counterclockwise to
decrease voltage output.
U O V
BLACK RED WHITE GREEN
GROUND
CONNECTION
BE USED
AT ALL TIMES
MUST
SINGLE-PHASE
120 VAC (LOAD CONNECTIONS)
120V 120V
NOTICE
alWaYS make sure that the connections to the UOV
terminals are secure and tight. The possibility of arcing
exists, that could cause a fire.
