page 22 — dca20SpXU4F Servpro™ • operation and partS manUal — rev. #0 (07/16/14)
OUtpUt terMiNaL paNeL FaMiLiariZatiON
oUtpUt terminal panel
The Output Terminal Panel (Figure 6) shown below is
located on the right-hand side (left from control panel) of
the generator. Lift up on the cover to gain access to
receptacles and terminal lugs.
NOTICE
Terminal legs “O” and “Ground” are considered bonded
grounds
oUtpUt terminal Familiarization
The “Output Terminal Panel ” (Figure 6) is provided with
the following:
„ Two 120/240 output receptacles @ 50 amps
„ Two Aux. Circuit Breakers @ 50 amps
„ Two 120V GFCI receptacles @ 20 amp
„ Two GFCI Circuit Breakers @ 20 amps
„ Four Output Terminal Lugs ( U, O, V, and Ground)
AUX. POWER RECEPTACLES
120/240V, 50 AMPS
120 VAC, 20 AMP
GFCI RECEPTACLES
Y
X
W
CS-6369
TWIST-LOCK
CIRCUIT BREAKERS
FOR GFCI RECEPTACLES
RECEPTACLE
AND
CIRCUIT BREAKER
PANEL
HARD WIRE
HOOKUP PANEL
U O V
BLACK RED WHITE GREEN
SINGLE PHASE
240 -120 VAC
OUTPUT TERMINALS
NEUTRAL
TERMINAL
GROUND
TERMINAL
CIRCUIT BREAKERS
FOR CS-6369 TWIST
LOCK RECEPTACLES
M Q P O W ER
ACCESS DOOR
LIFT TO OPEN

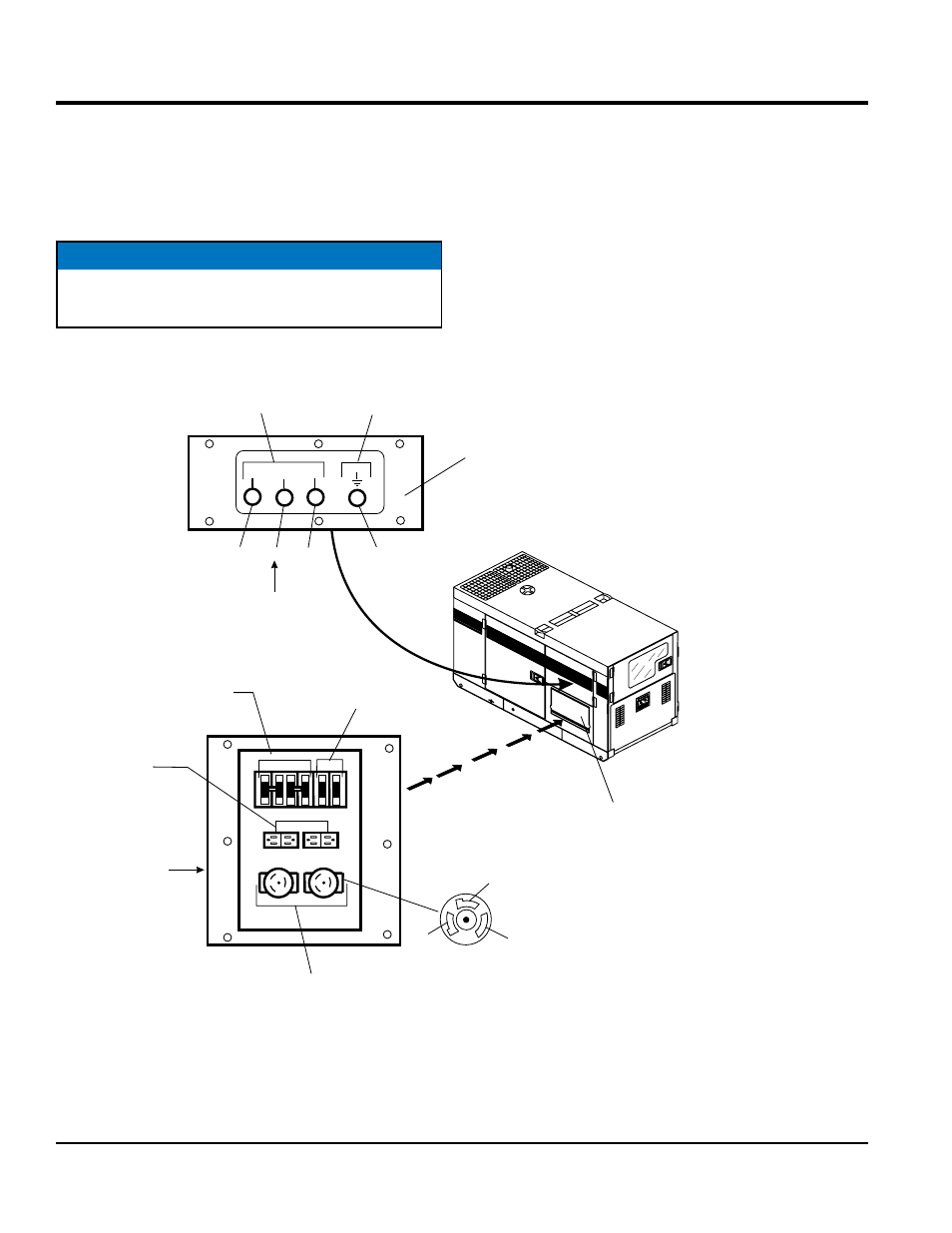

Figure 6. Output Terminal Panel
