MTS Criterion Series 40 User Manual
Page 78

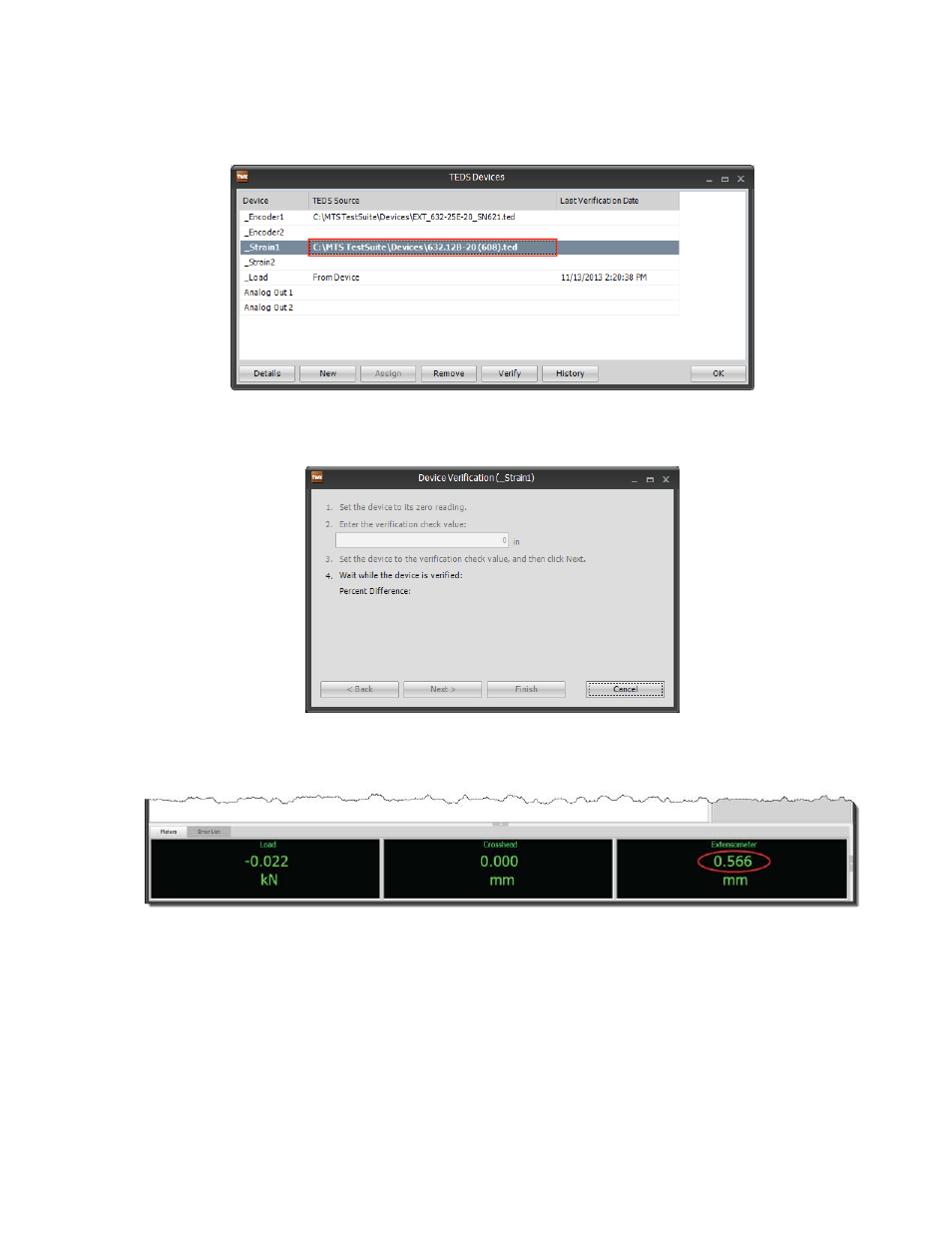

The TEDS Devices window appears.
4. Select the TEDS file for the extensometer you are using.
Select the _Strain1 row, and then click Assign. The TEDS Devices window shows the available TEDS
files. Select the appropriate TEDS file for the extensometer you are using.
5. If necessary, verify the device.
You may be asked to verify the TEDS device. If so, click Verify. You may need to take action if the
TEDS device cannot be verified. If technical support is needed, contact MTS.
6. Ensure that the extensometer meter is active.
Verify that movement of the extensometer legs results in a reading change in the extensometer meter.
7. Attach the extensometer to the specimen.
78 | MTS Criterion
™
Series 40
Running the Example Tension Test
