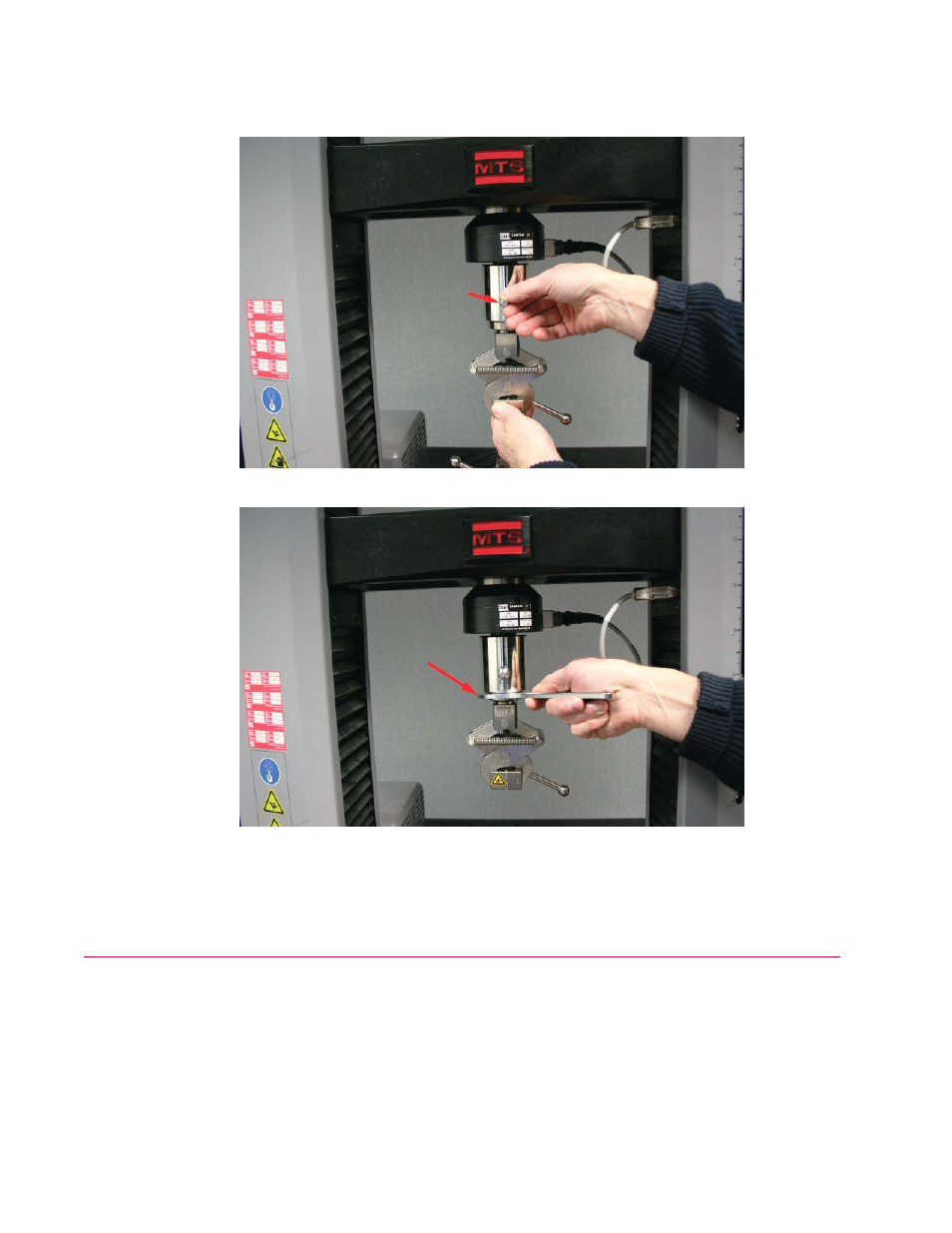

2. Position the grip on the load frame adapter and insert the pin.
3. Tighten the locknut using a spanner wrench.
MTS Criterion 40 System Dual Workspace Test
Setup
This procedure provides the basic steps required to run a test on an MTS Criterion 44 or MTS Criterion
45 dual workspace system. Some steps and details may vary according to your individual test requirements.
To reduce the risk of injury and damaging specimens or equipment, the test designer may have configured
test limits that limit the force or displacement applied by the crosshead during the test procedure.
118 | MTS Criterion
™
Series 40
