Mount the Load Cell (Force Sensor)
If necessary, mount the load cell.

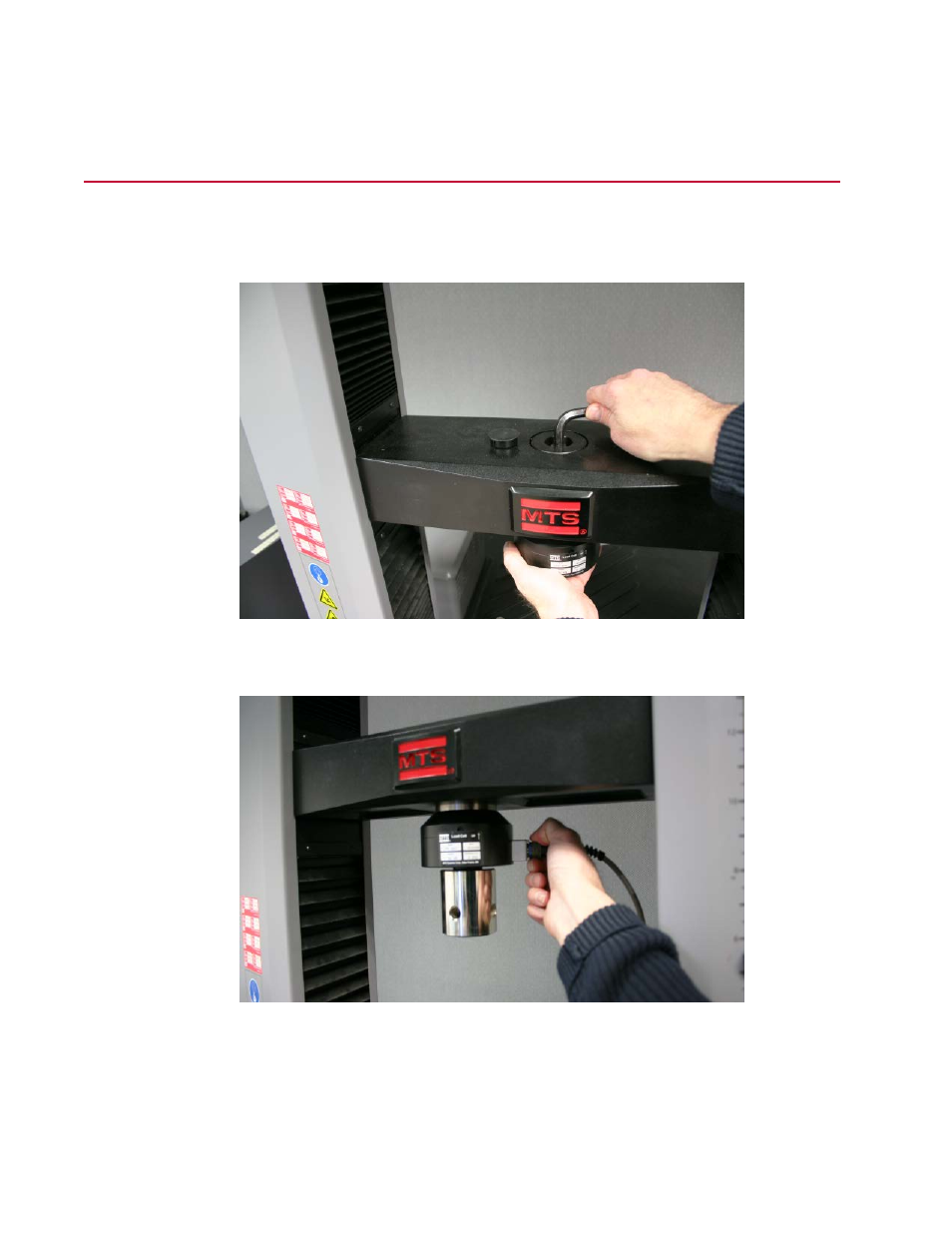

1. Mount the load cell to the crosshead.
Be sure to compare the length of the load cell bolt to the depth of the load cell hole. Make sure the bolt
will not bottom out to avoid damaging the load cell.
2. Electrically connect the load cell to the load frame.
3. Connect the cable from the load cell to the load frame.
116 | MTS Criterion
™
Series 40
