Load Frame Overview

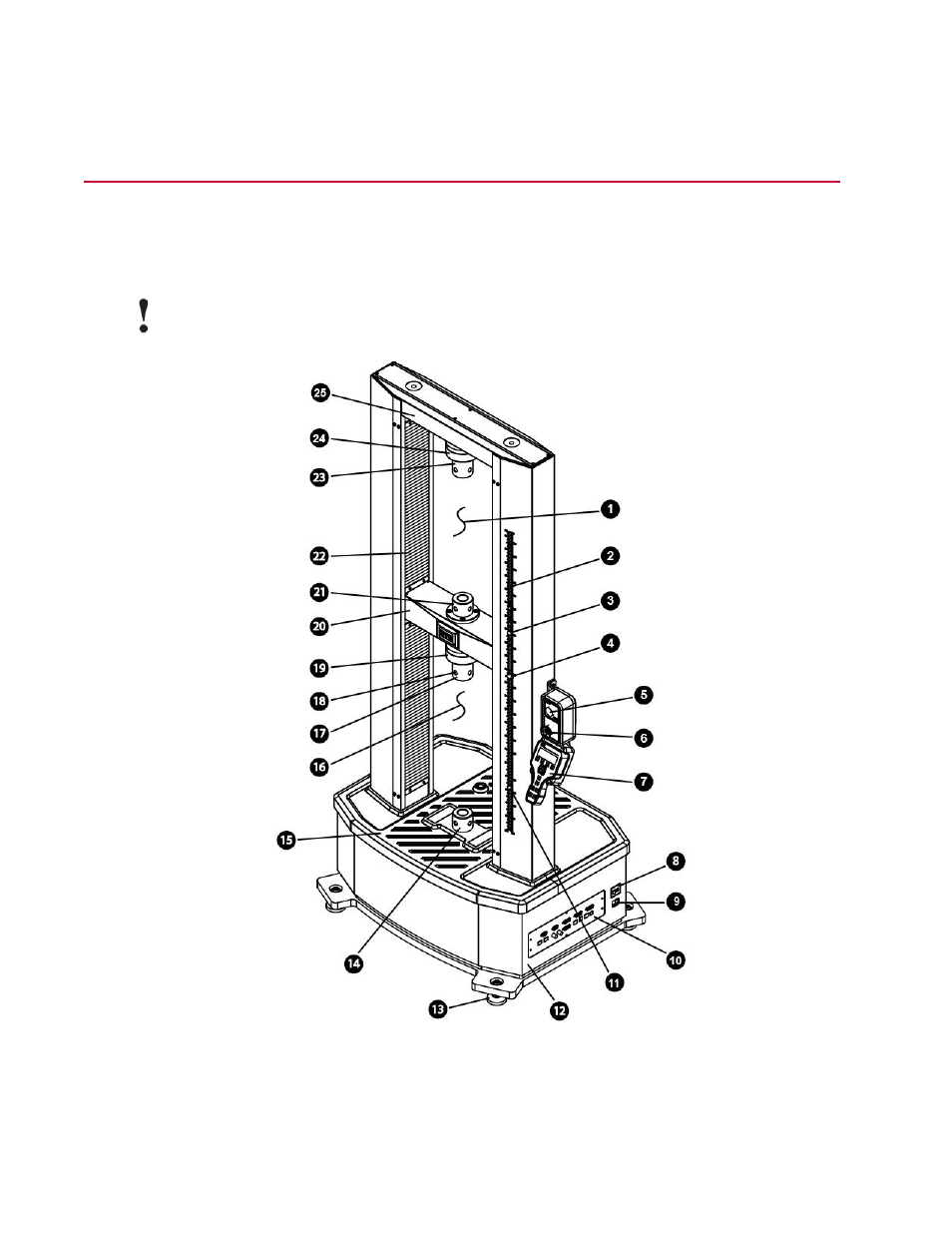

The load frame is essentially composed of a base, two columns, and moving crosshead. Most units have
a single test space between the base and the crosshead. Dual zone test space units (like the C44 shown
below) have an additional testing area between the crosshead and the top beam.
Important:
Observe all hazard and warning labels shown on the front of the frame.
26 | MTS Criterion
™
Series 40
System Introduction
