Reset Interlocks
Your MTS Criterion test system performs many self-checks when it is powered up. The interlock is always
set on initial startup. In addition, if a safety condition is violated, the system also sets an interlock. The

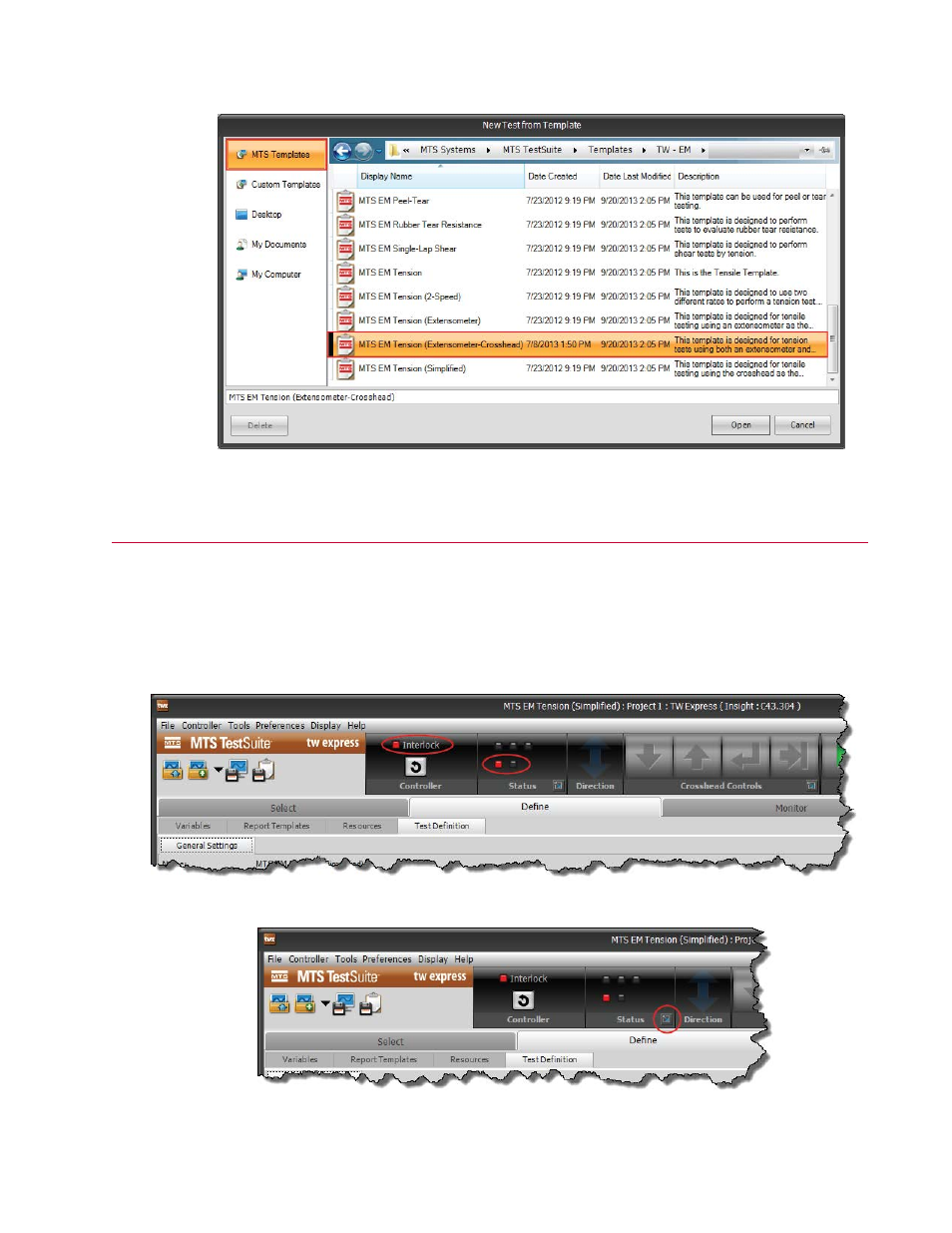

interlock indicators light (see below) and the interlock renders the machine inoperable until the violated
safety condition is corrected. It is normal to encounter interlock conditions during normal operation. The
steps in this section should be used whenever an interlock condition is encountered.
1. Select the arrow in the lower right corner of the Status panel.
MTS Criterion
™
Series 40 | 63
Running the Example Tension Test
