MTS Criterion Series 40 User Manual
Page 29
Warning
:
Unintended force can be applied to body parts, mounted specimens, grips and fixtures, or
other objects in the crosshead's path.
Unintended force can injure personnel and damage equipment.
Before you move the crosshead, ensure that the crosshead path is clear and that you
understand how to control crosshead motion using system controls.

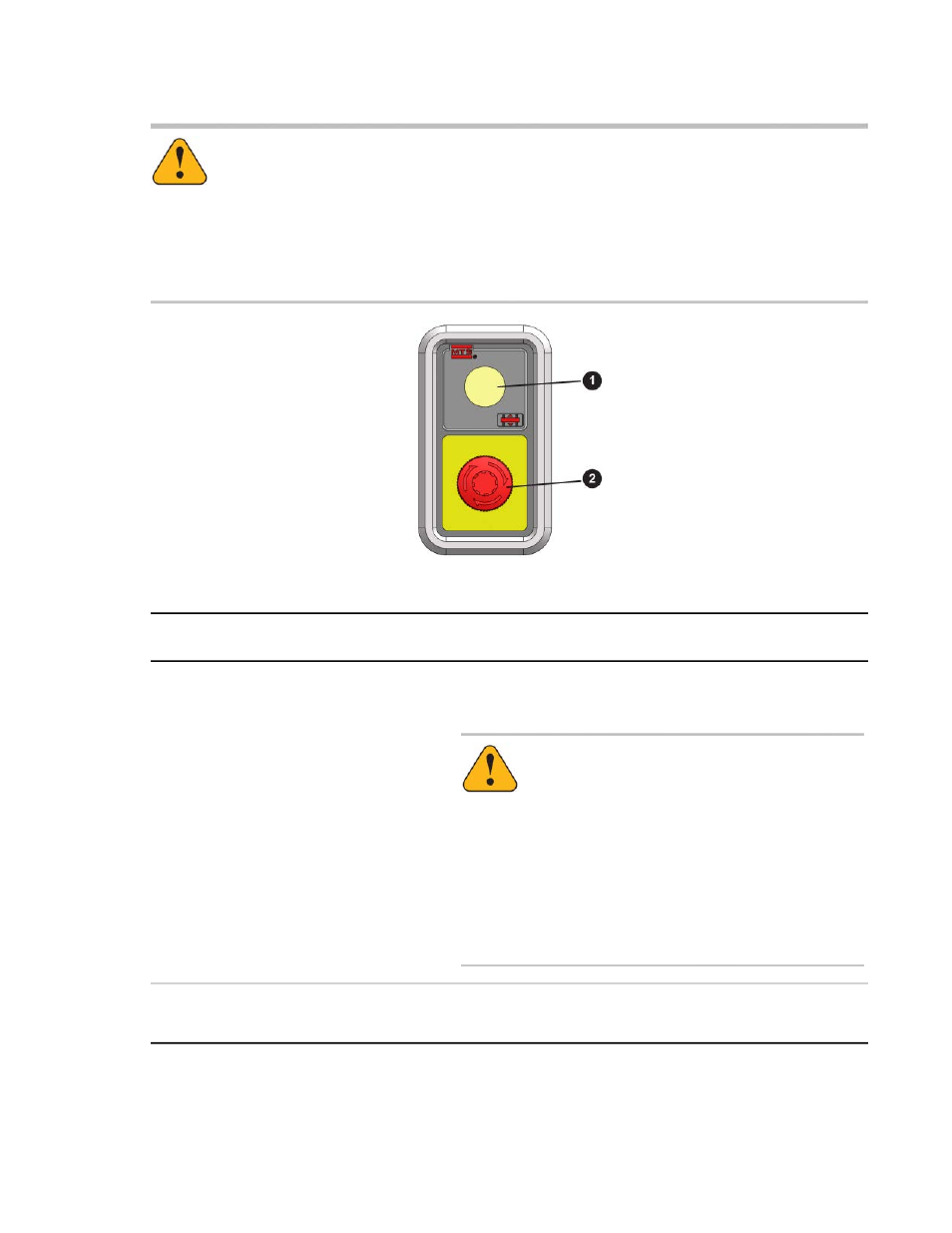

Load Unit Control Panel Description
Description
Control/Indicator
Number
Lights when interlocks are cleared and the load frame is
ready for use.
System Enabled Light
1
Warning
:
The System Enabled light indicates that
crosshead movement can occur due to control
inputs or a test run in progress.
Unexpected crosshead movement can cause
equipment damage or injury.
Keep body parts out of the crush zone and use
caution whenever the System Enabled light is
lit.
Stops crosshead motion and sets an interlock when pressed.
Twist to reset.
Emergency Stop Button
2
MTS Criterion
™
Series 40 | 29
