Removing Mats
Some installation and maintenance situations may require you to remove the load frame mat covers in
order to access components within the base of machine.
To remove the mat of the C42 model: (To install the mat, perform the procedure in reverse.)
1. Using a ball-end 5 mm hex driver, remove the two M6 bolts holding the upper horizontal aluminum
extrusion on the rear guard and remove the extrusion.
2. Remove the upper profile from the safety enclosure frame.
3. Gently remove the clear polycarbonate from the safety enclosure and place it in a safe place.
4. Use the ball-end 5 mm hex key driver to loosen the two M6 bolt connectors on the lower horizontal
aluminum extrusion.
5. Remove the lower profile from the safety enclosure frame.
6. Open the front door, and carefully remove the rubber mat, as the rubber mat can tear at the corners.

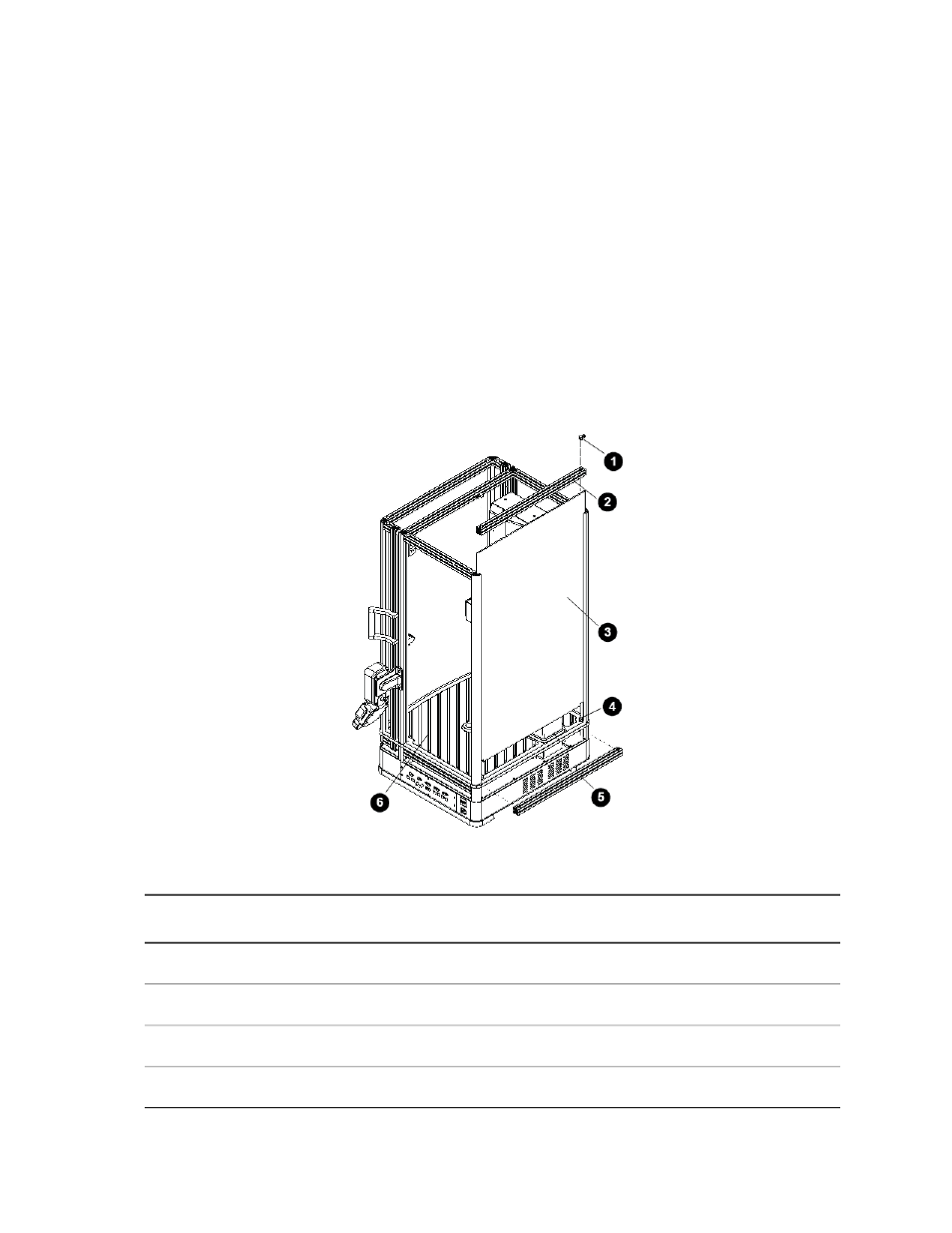

Components Affected by Mat Removal
Description Item
Bolt Connector 1
Upper Profile 2
Cover Glass 3
Bolt Connector 4
