Note:
Two water manifolds are supplied, one for each grip. Mount a water manifold on each column to
keep the temperature of each column balanced.
a) Mount one water valve clamp to a load unit column. Mount the other water valve clamp to the other
load unit column.
b) Connect water lines (supply and drain) between the water lines attached to the columns and the upper
and lower grips.
c) Connect the water supply (and drain) to the water valve/drain mounted to the load unit columns.

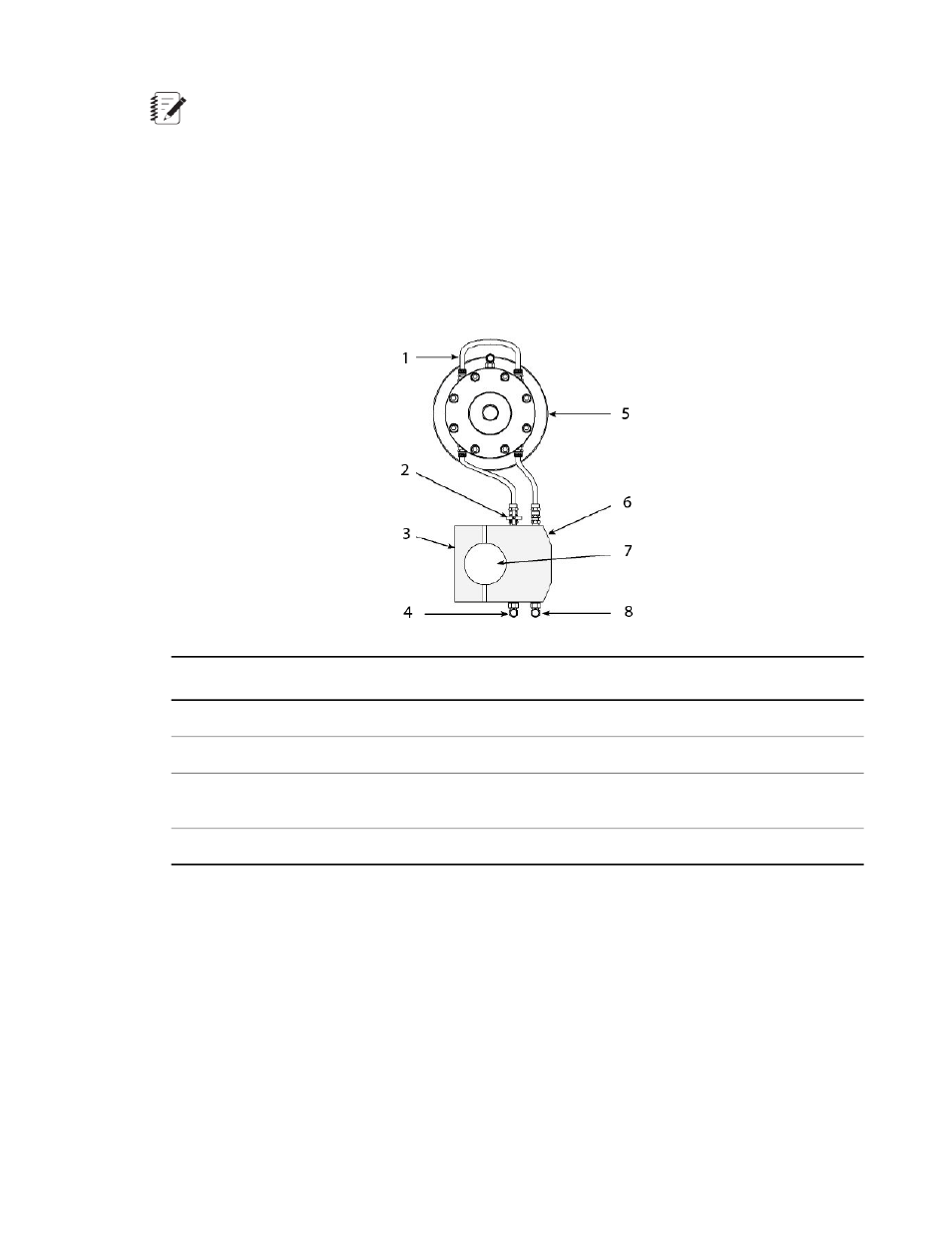

Description Item Description Item
Hydraulic Chamber of Grip 5 Warming/Cooling Water Return Loop 1
Water Manifold 6 Shutoff Valve 2
Load Unit Column 7 Warming/Cooling Water Kit Mounting
Bracket 3
To Warming/Cooling Water Drain 8 From Warming/Cooling Water Supply 4
12. Install the wedges.
Go to “Change Wedges 647.02 - 647.100” for the procedure to install wedges into the grips.
Series 647 Hydraulic Wedge Grips Reference Manual 65
Installation
