MTS Series 647 Hydraulic Wedge Grips - Manual (Page 45)

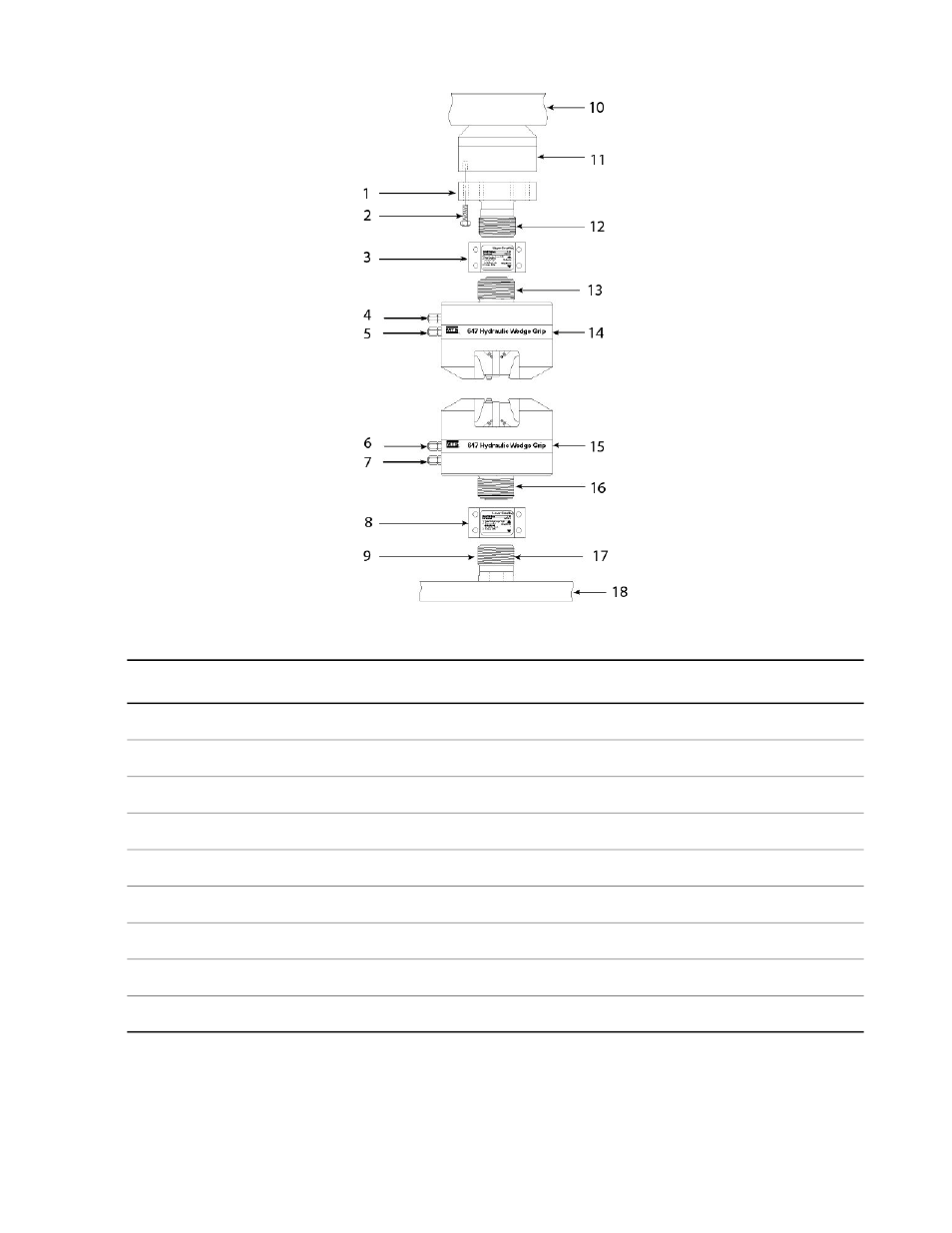

Axial-Torsional Grip Installation Components
Description Item Description Item
Crosshead 10 Adapter 1
Force Transducer 11 Socket Head Cap Screw 2
Left Hand Thread 12 Upper Coupling 3
Right Hand Thread 13 Release Pressure 4
Upper Grip 14 Clamp Pressure 5
Lower Grip 15 Release Pressure 6
Left Hand Thread 16 Clamp Pressure 7
Right Hand Thread 17 Lower Coupling 8
Load Unit Base Plate 18 Actuator Rod 9
Required equipment
The following materials and equipment are required for installation:
• The appropriate attachment kit (includes a drawing showing what components should be installed).
Series 647 Hydraulic Wedge Grips Reference Manual 45
Installation
