MTS Series 647 Hydraulic Wedge Grips User Manual
Page 40

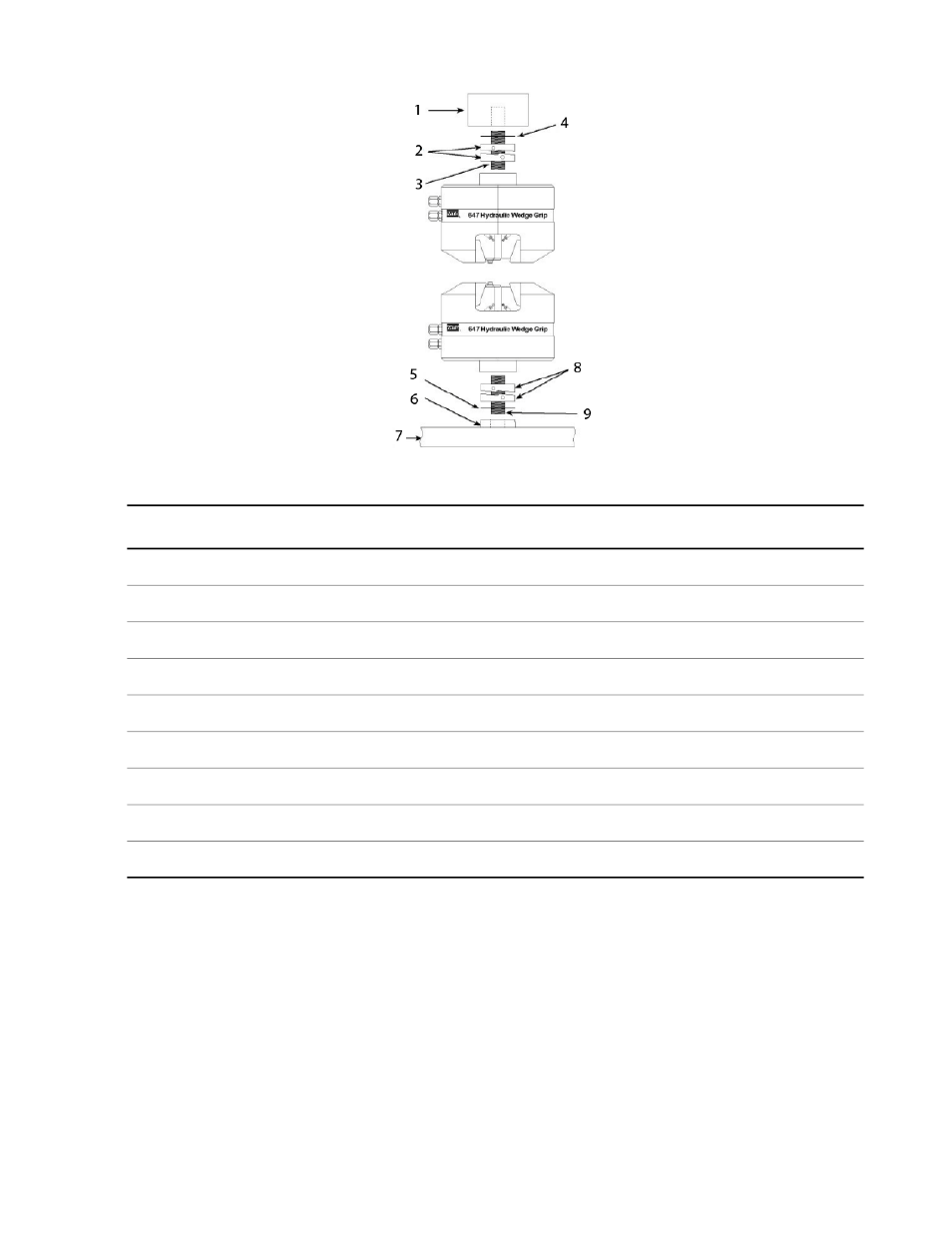

Axial Grip Installation Components
Description
Item
Crosshead or Force Transducer
1
Spiral Washer Set
2
Stud
3
Shim Washer
4
Shim Washer
5
Actuator Rod
6
Load Unit Base Plate
7
Spiral Washer Set
8
Stud
9
Required equipment
The following materials and equipment are required for installation:
•
The appropriate attachment kit.
•
Two sets of spiral washers.
•
Two connector studs.
•
Shim washers.
•
Lubricant.
40 Series 647 Hydraulic Wedge Grips Reference Manual
Installation
