33

MKDX

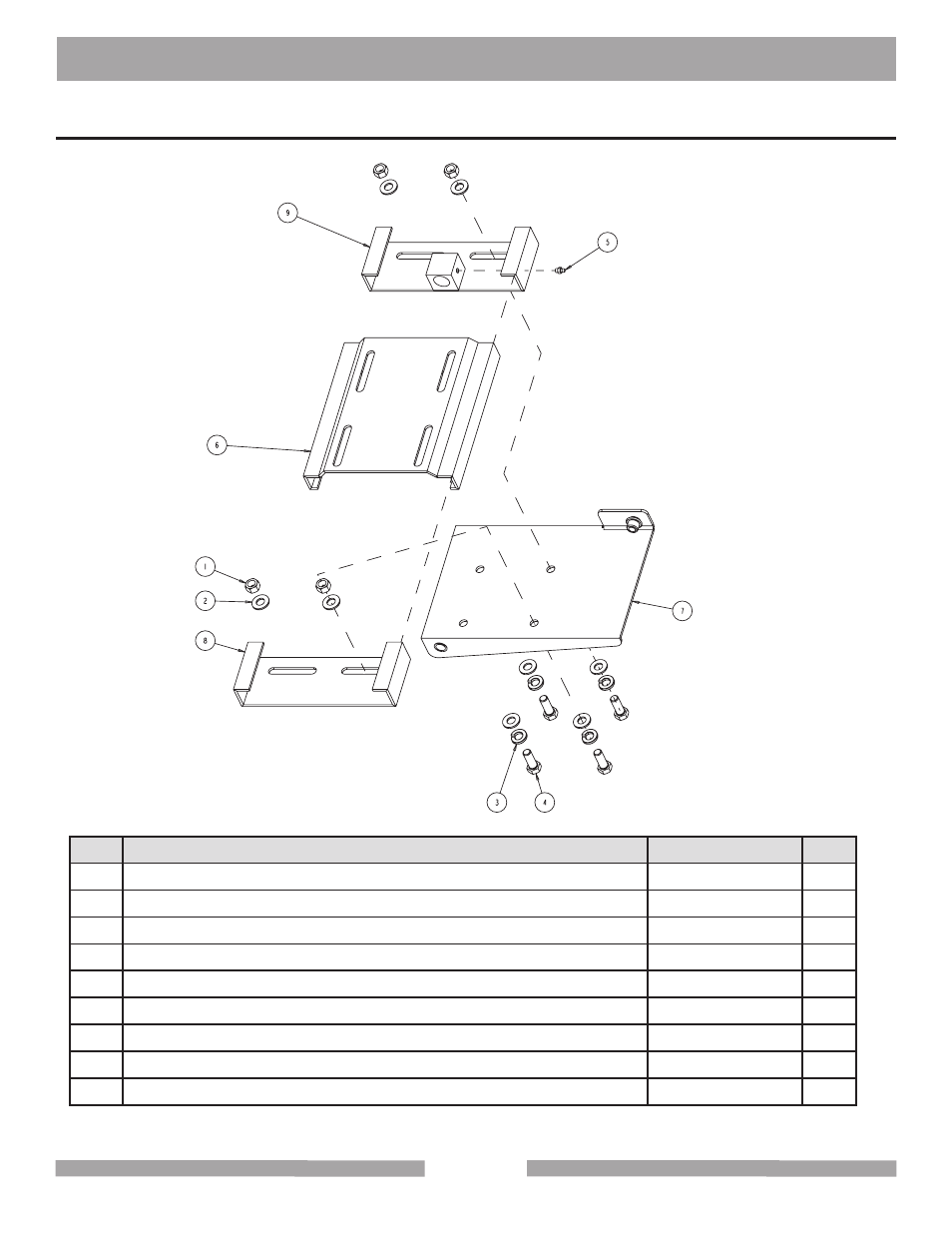

EXPLODED VIEW & PARTS LIST

MKDX MOTOR GUIDE ASSEMBLY - P/N 165171

ITEM

DESCRIPTION

PART#

OTY.

1

NUT, 3/8 - 16 HEX

101188

4

2

WASHER, 3/8 SAE FLAT

150923

8

3

WASHER, 3/8 SPLIT LOCK

150925

4

4

SCREW, HEX HD CAP, 3/8 - 16 X 1

152507

4

5

FITTING, 1/4 - 28 GREASE

153852

1

6

MOUNTING PLATE

165190

1

7

SWIVEL MOUNT

165191

1

8

SLIDE

165193

1

9

PULL SLIDE ASS’Y

165580

1
