MKDX
PRODUCT SPECIFICATIONS
BASIC COMPONENTS

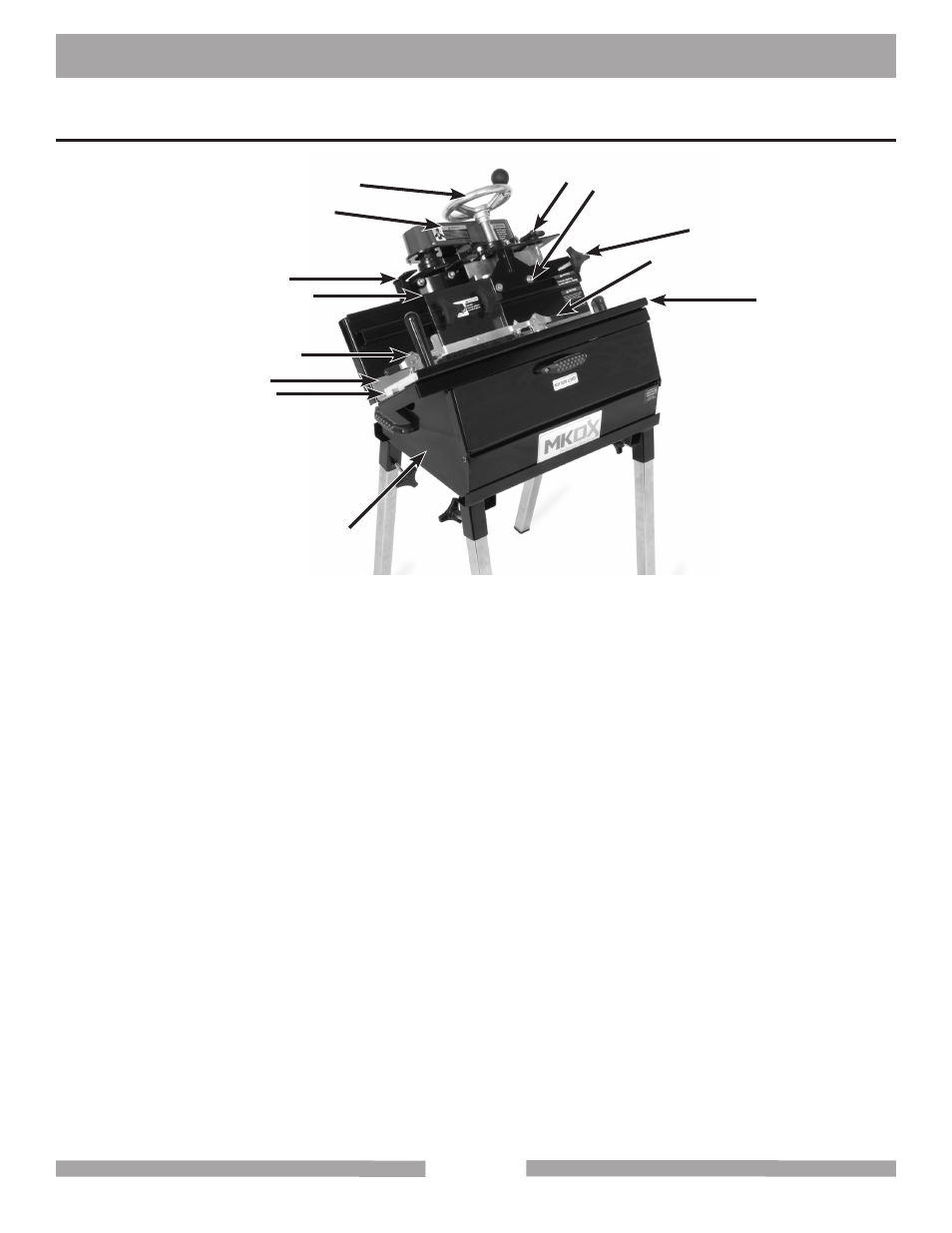

Fig. 8 Basic Machine Components
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
Spray Guard –
Adjusts to protect user from flying debris and spray
Material Clamp –
Configures to material size for lockdown
Wear Bars –
Material slides along bar during shaping
Material Slide
– Secures material and moves along shaping wheel
Water Tank
– Filled for water system
Material Slide Guide
– Adjust to keep material slide in place
Material Course Adjustment Bolt
– Use for major adjustment of vertical position to material.
These have been preset at the factory for normal operations.
Material Height Adjustment Bolts
– Use for horizontal adjustment position to material
Material Height Lock
– Unlocks/locks Material Height Adjustment in place. See Page 25
Figure 36 inset photo for an idea.
Belt Guard
– Protects user from moving parts
Material Fine Adjustment
– Use for adjustment of vertical position to material
A
B
C
D
K
J
I
H
G
F
E (inside)
H
C
