21
MKDX INSPECTION & START-UP
INSTALLING/CHANGING SHAPING WHEELS

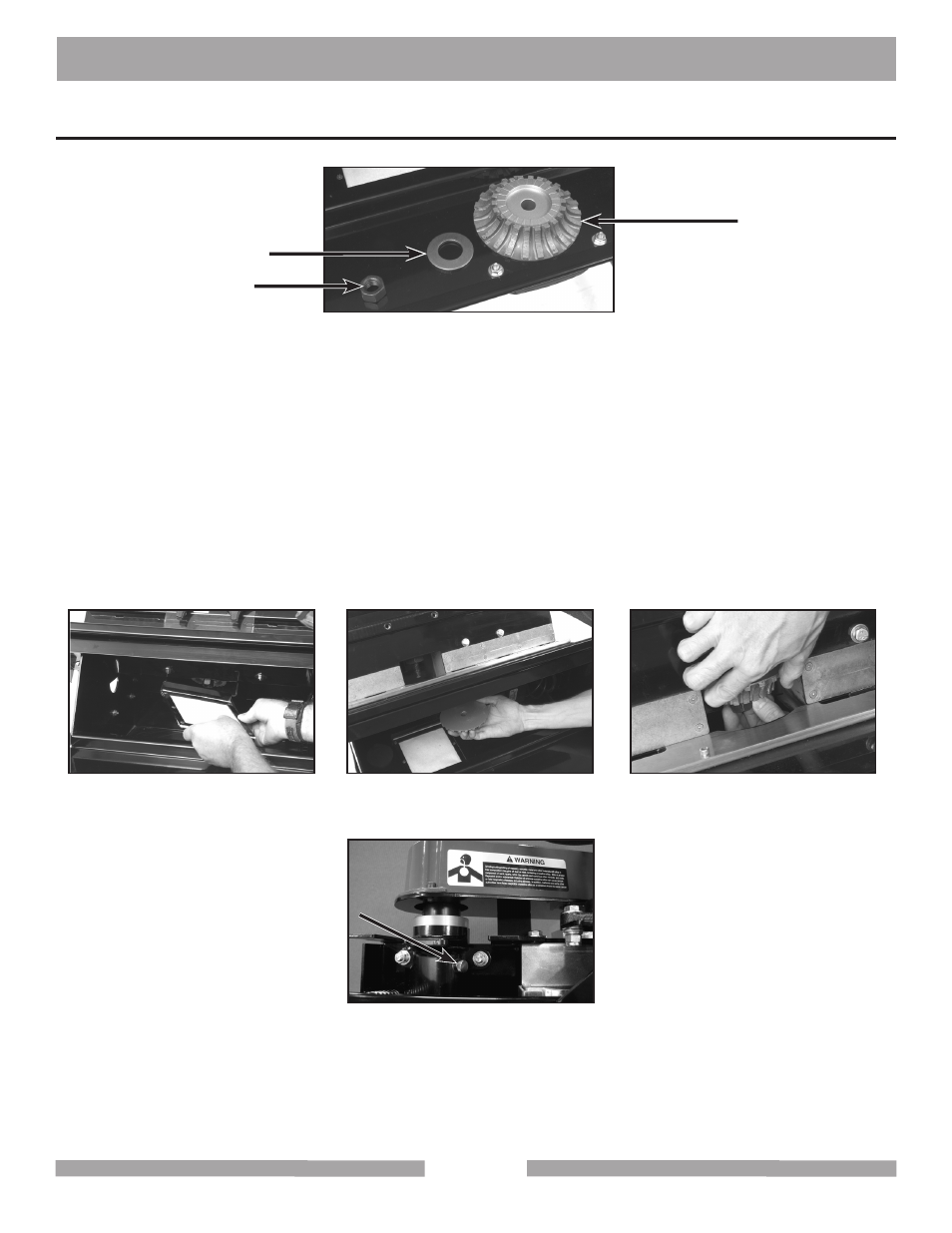

Fig. 15 Shaping Wheel Components
1. Remove water filter to access shaft (Figure 16).
2. Place Shaping Wheel (A) on shaft, followed by Spring Washer (B) and Nut (C) (Figure 17).
3. Center Spring Washer (B) on shaping wheel while tightening Nut (C) (Figure 18).
4. Push Arbor Shaft Lock Button (D) to keep shaft from rotating (Figure 19).
Use wrench to tighten Nut (C)(Fig. 15).
5. Ensure shaping wheel is installed tightly.
6. Replace filter.
Fig. 16 Remove filter
C. Nut
B. Spring Washer
A. Shaping Wheel
Fig. 17 Place Shaping Wheel Fig. 18 Tighten Nut
Fig. 19 Arbor Shaft Lock
D
