MK Diamond MKDX Profile Milling Machine User Manual
Page 18
18
B
MKDX
INSPECTION & START-UP
SAFETY DEVICES
WARNING
Never run the machine if its guards and safety devices have been tampered with or removed, or are
not in working order.
The protection systems:
A) Power Switch
B) Spray Guard
C) Belt Guard

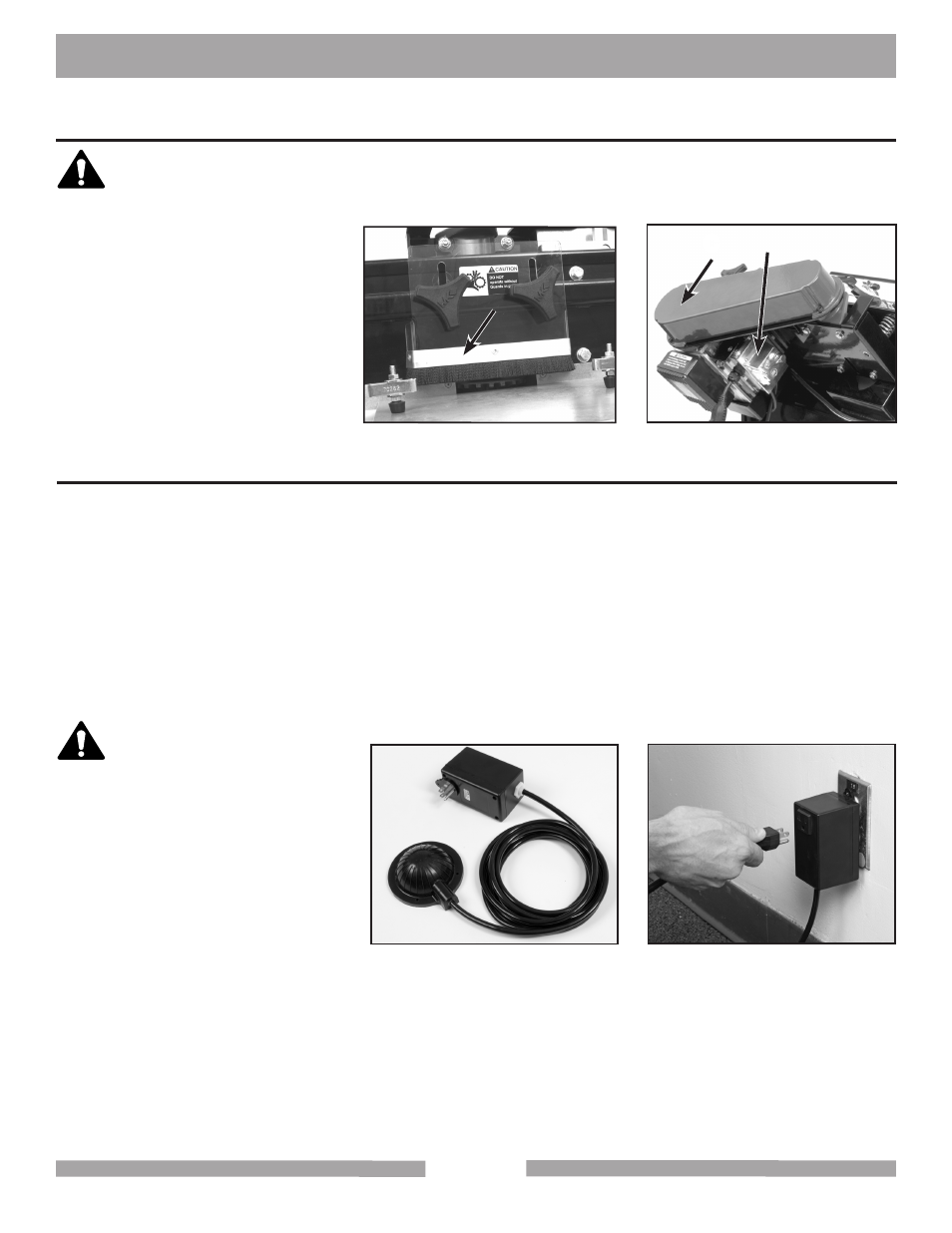

Fig. 11 Safety Devices
A
C
1.
2.
3.
4.
5.
Place Plug/Receptacle of foot pedal switch into power source (110V).
Plug MKDX machine’s power cord into receptacle of foot pedal switch. (Figure 13).
Place foot pedal in desired location for easy on/off actuation of MKDX machine.
Turn on the MKDX machine power switch. It must be turned and left in the on position in order to
use the foot pedal switch.
The MKDX power switch should be turned off when machine is not being used and before unplug-
ging the MKDX machine from the foot pedal receptacle.
FOOT PEDAL SWITCH
Be sure to keep the plug/receptacle
out of water.
WARNING
Fig. 12 Foot Pedal Switch
A foot pedal switch has been included for easy on/off of the MKDX (Figure 12).
Fig. 13 Plug Cord into Switch
