NOTICE
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’ 100’
150’
250’
Max. Cord Length
Max. Cord Length
Max. Cord Length No. 12 Wire
No. 10 Wire
No. 8 Wire
115v 230v
MKDX SAFETY
WARNING
Use only extensions cords that are intended for outdoor use. These extension cords are identified by
a marking “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only ex-
tension cords having an electrical rating not less than the rating of the product. Do not use damaged
extension cords. Examine extension cords before using and replace if damaged. Do not abuse
extension cords and do not yank on any cord to disconnect. Keep cords away from heat and sharp
edges. Always disconnect the extension cord from the receptacle before disconnection the product
form the extension cord.
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the
plug with wet hands.
WARNING
Use of undersize extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords will be repaired or replaced
totally at the customers expense. There will be no warranty claim.
• Locate the length of extension cord needed
in table below.
•
Once the proper length is found, move
down the column to obtain the correct AWG
size required for that length of extension cord.
Fig. 4 Extension Cord Table
In order to help prevent accidental starting and
to help make your work area “kidproof,” this
machine is provided with a means to deactivate
the functioning of the motor switch. The switch
is equipped with a lockout tab that can be used
with a lock to prevent movement of the switch.
With the switch unable to move the motor can-
not be turned on. Removing the lock reactivates
the switch.

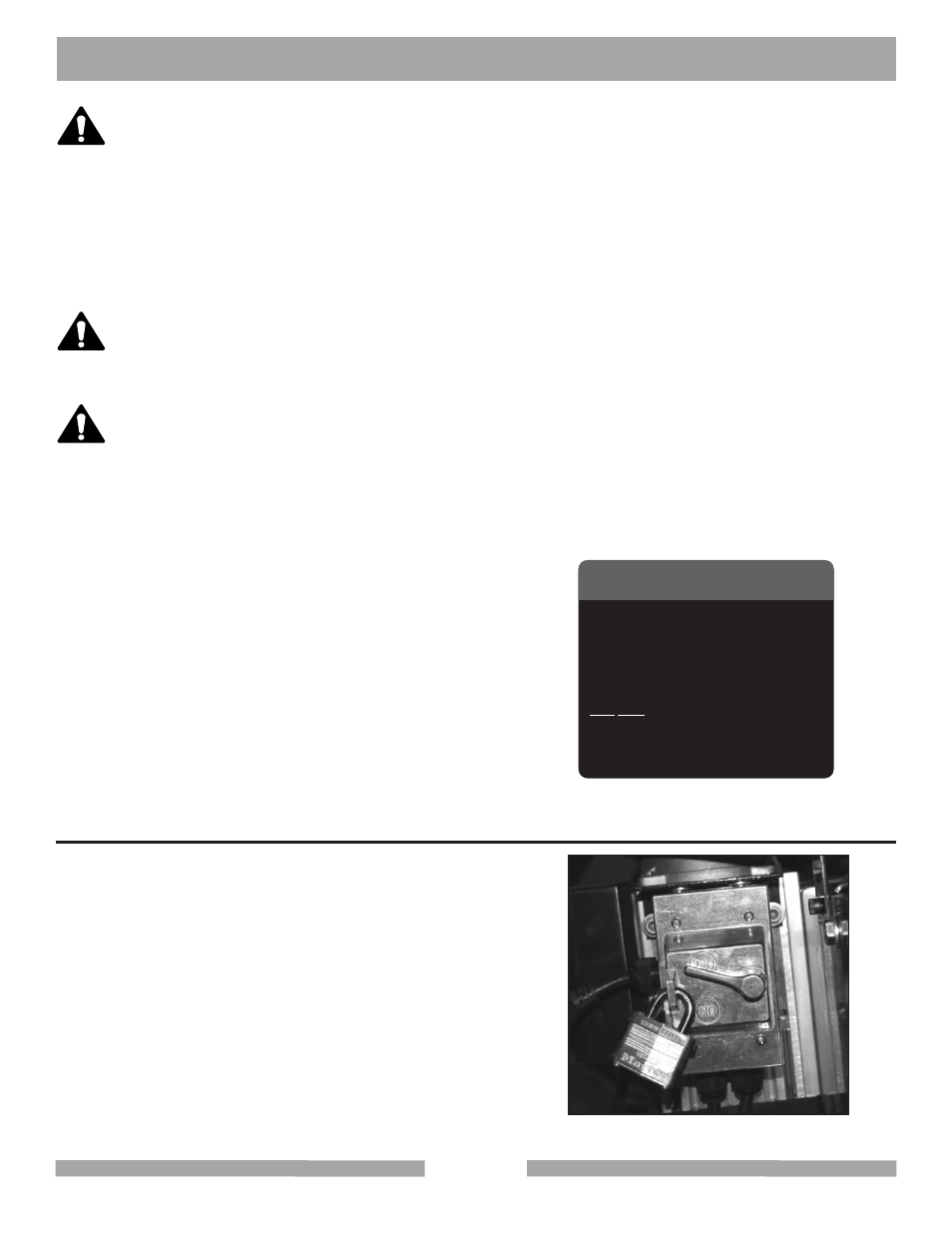

LOCK OUT METHOD
Fig. 5 MKDX Lock Out
To choose the proper extension cord
