MAINTENANCE AND TROUBLESHOOTING

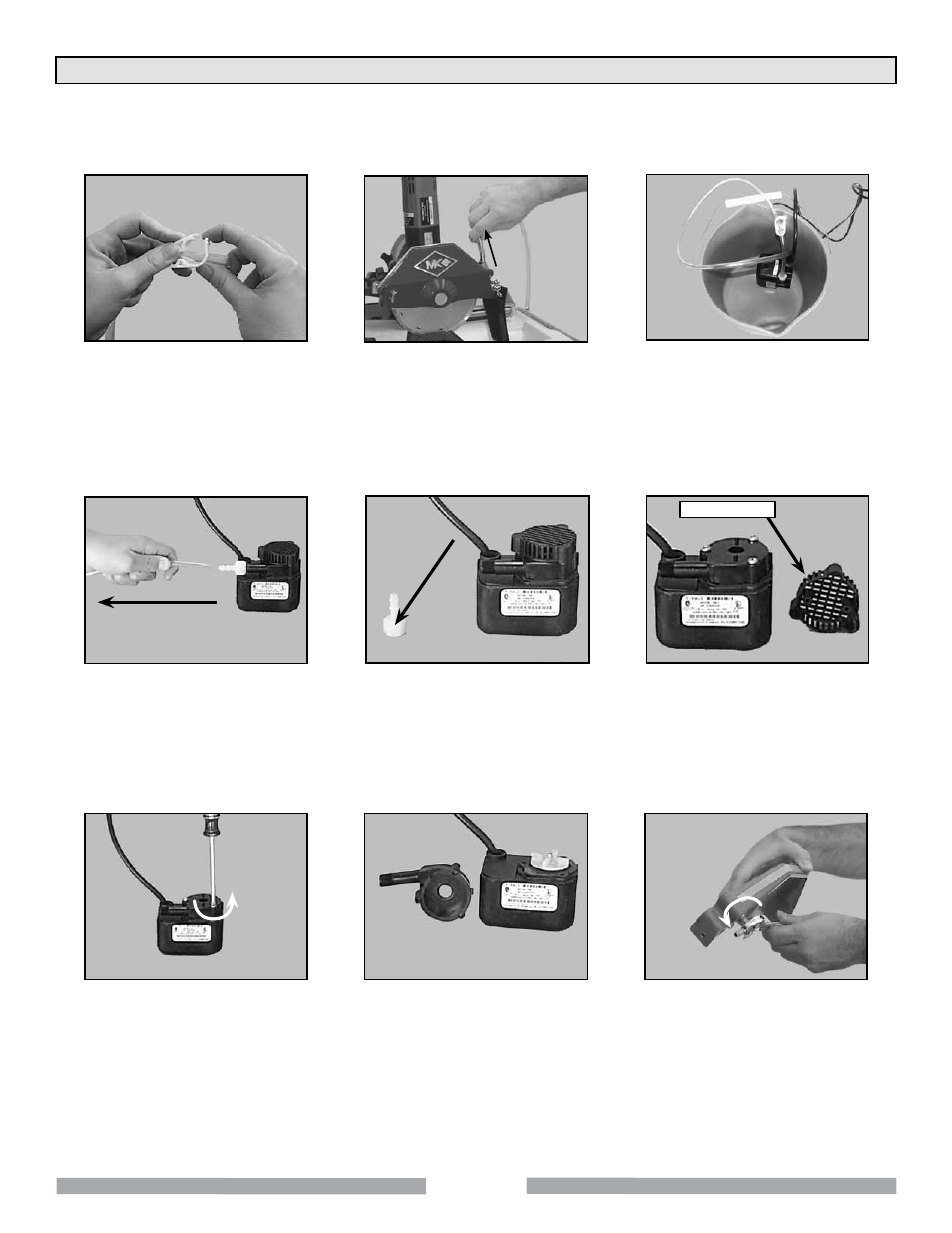

3. Cooling Flow:
(B)
Remove the Cooling Transfer
Tube from the Blade Guard
inlet
(A)
Check cooling flow Adjusting
Clamp open
(C)
Place Pump into a bucket of
water and check flow
((E)
Remove the Pump Discharge
Fitting and check
(D)
Remove the Cooling Transfer
Tube and check flow
(F)
Remove the Pump Intake
Screen and check for debris
(G)
Remove the 3 Pump Casing
Retaining Screws
(H)
Remove the Pump Casing
and check for restriction;
check Impeller damage
(I)
Remove the Blade Guard
Intake Fitting
Intake Screen
