16

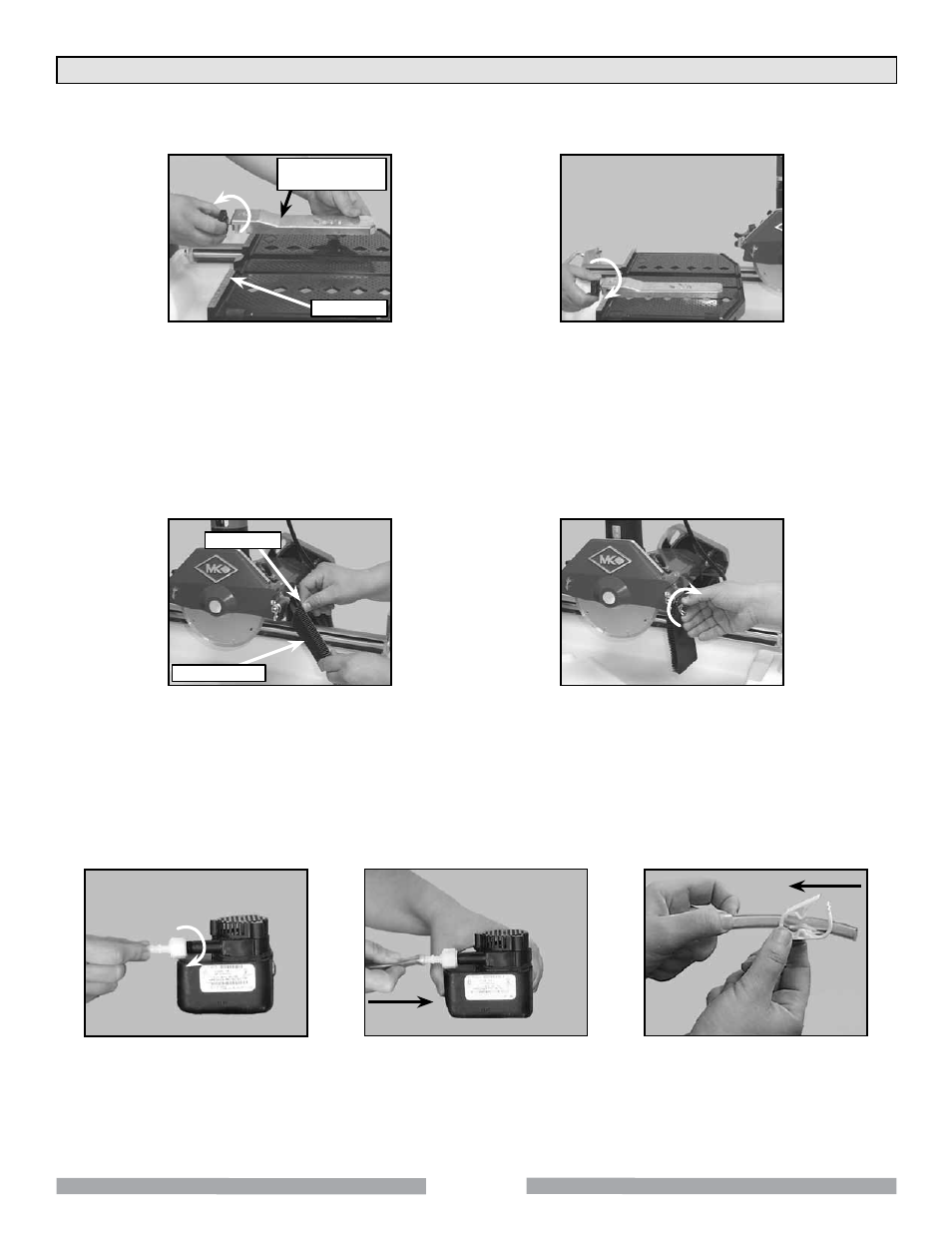

UNPACKING, TRANSPORT, TILE SAW STAND and ASSEMBLY
3. Adjustable Cutting Guide Installation:
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
(A)
Loosen Adjustable Cutting Guide
retaining thumbscrew and place it over
the Movable Cutting Table, Ruler/Stop
(B)
Place the Adjustable Cutting Guide onto
the Movable Cutting, Table Ruler/Stop
and tighten the retaining thumbscrew
4. Splash Guard Installation
5. Water Pump Preparation:
(A)
Install Water Pump
Discharge Fitting
(B)
Press one end of the Cooling
Transfer Tube onto the Water
Pump Discharge Fitting
(C)
Slide Cooling Flow Adjusting
Clamp onto the Cooling
Transfer Tube
(A)
Install the retaining thumbscrew
through the washer and Splash
Guard then align to the hole found on
back of the Blade Guard
(B)
Install the Splash Guard
onto the Blade Guard
Adjustable
cutting guide
Ruler/Stop
Splash Guard
Thumbscrew
