36
Blade Guard retaining
wing nut
Upper
Screw
MAINTENANCE AND TROUBLESHOOTING

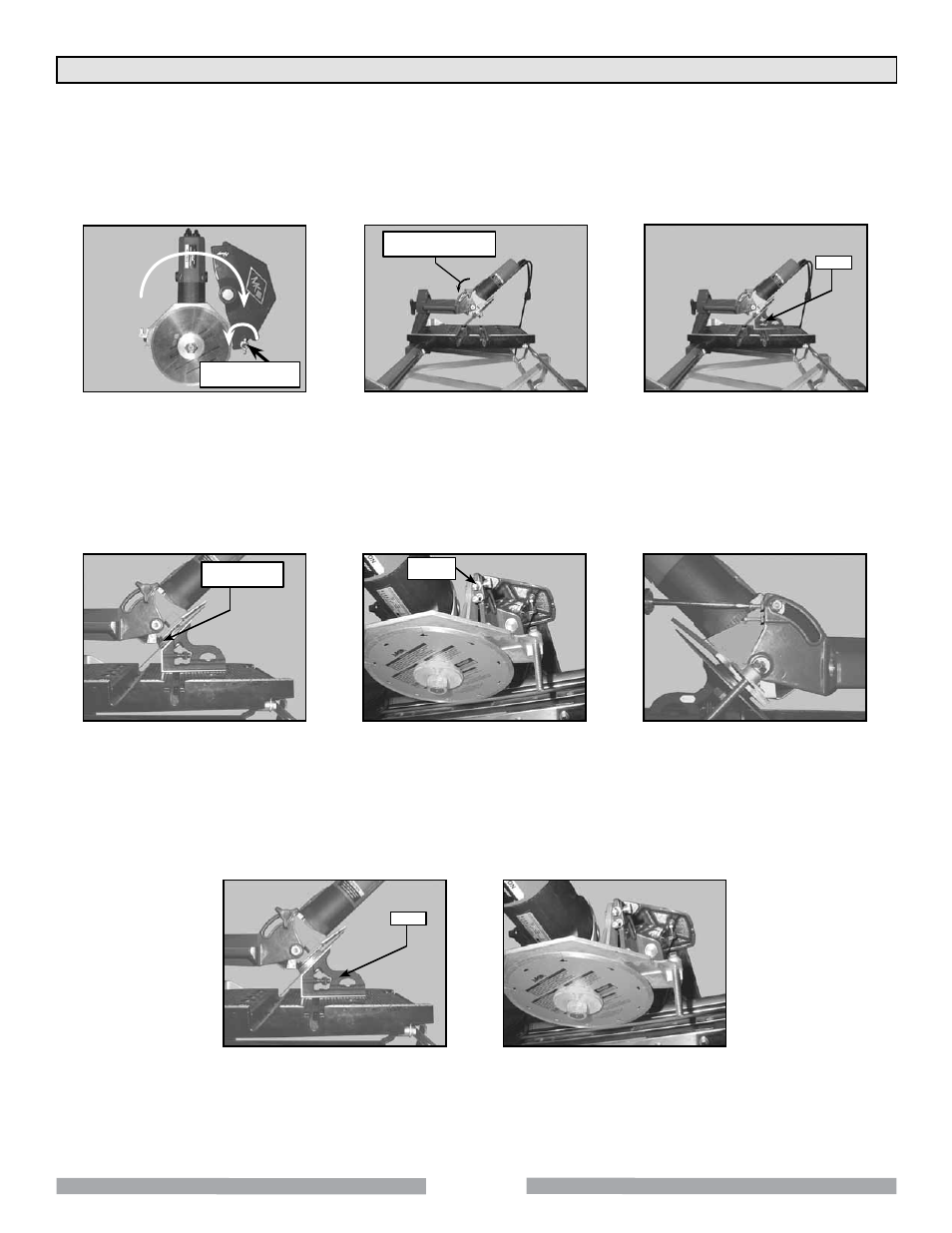

45° Alignment Verification:
NOTES: If the blade is misaligned following this alignment procedure, return the saw to MK Diamond for
repair. The Diamond Blade must be removed and reinstalled when removing the Blade Guard.
The 45° Alignment Verification is done to ensure the blade will cut tile at a 45° angle.
(B)
Position the Cutting Head
to the 45° Cutting Angle
(A)
Remove Blade Guard
(If not done Previously)
(C)
Place Square on the Movable
Cutting Table and position the
Square against the Blade
(E)
To Adjust 45° Cutting Angle, locate
the 45°
Adjustment Screw
(D)
Verify Blade is even
across all points of Square
(F)
Rotate 45° Adjustment Screw
clockwise or counter-clockwise
to realign 45° Cutting Angle
(G)
Verify Blade is now even
across all points of Square
(H)
Repeat steps A to G until Blade is
even across all points of Square
Rotate Counterclockwise
to loosen
Square
No Gaps between
Blad eand Square
Square
