Rotate Clockwise or
Counterclockwise to
Adjust Height
1/4-inch Wrench
MAINTENANCE AND TROUBLESHOOTING

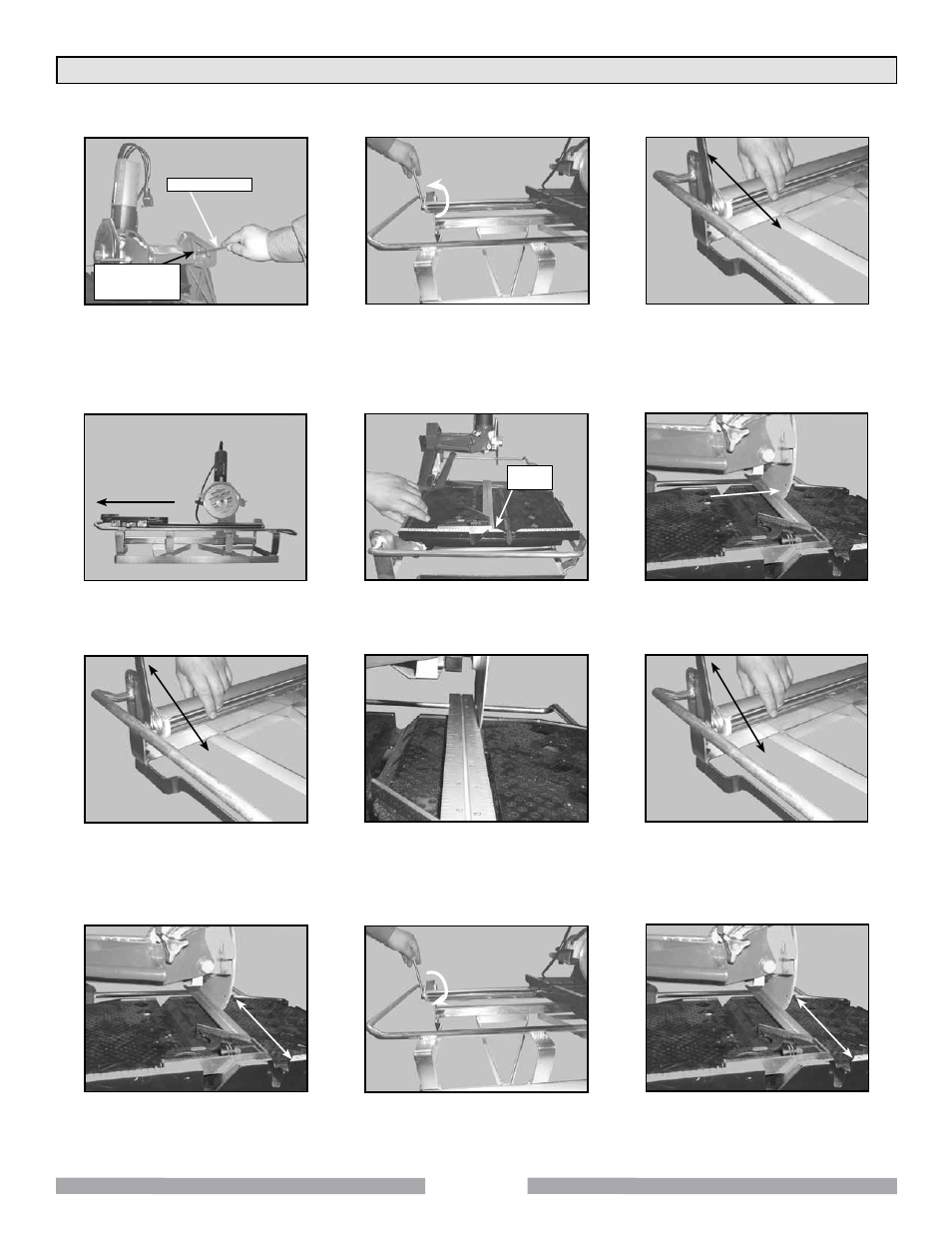

Horizontal Rough Alignment:
The Horizontal alignment will ensure that straight cuts (or Rip Cuts) are made.
(B)
Loosen front and rear
Guide Bar Retaining Bolts
(A)
Position Cutting Head
to normal Cut Depth
(C)
Move Guide Rail until the
Blade is centered in
Cutting Groove
(B)
Position Square flat on Movable
Cutting Table against Ruler/Stop
(A)
Pull Movable Cutting Table
to front of Tile Saw
(C)
Position front of Square
against Blade
(E)
Position end of Square
against Blade
(D)
Move Guide Bar until Square rests
evenly across Blade
(F)
Move Guide Bar using Adjusting
Bracket until Square rests evenly
across Blade
(B)
Tighten Guide Bar
Retaining Bolts
(A)
Move the Cutting Table back and forth to
verify Blade is even
across all points of Square
(C)
Move the Cutting Table back and forth to
re-verify Blade is even
across all points of Square
Horizontal Final Alignment:
Horizontal Alignment Verification:
Ruler/Stop
