28

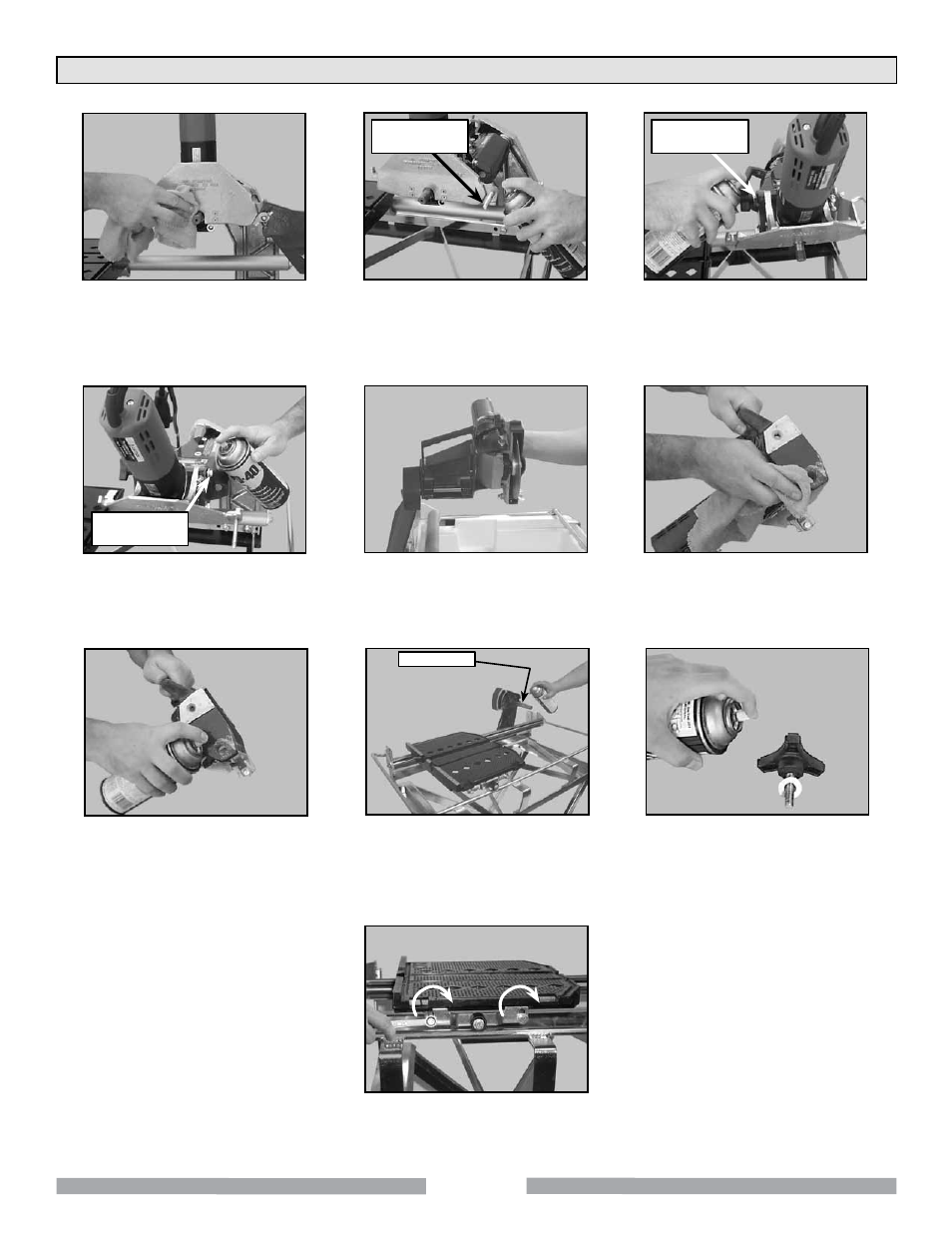

MAINTENANCE AND TROUBLESHOOTING
(E)
Remove the Blade Guard
then clean and Lubricate the
Blade Guard Pivot Shaft
(D)
Clean around Motor Shaft
(F)
Lubricate the front Cutting
Head Pivot Point
(H)
Remove the Cutting Head
(G)
Lubricate the rear Cutting
Head Pivot Point
(I)
Clean the Cutting Head Pivot
Holes
(K)
Lubricate the Cutting Head
Pivot Shaft
(J)
Lubricate the Cutting Head
Pivot Holes
(L)
Lubricate the Cutting Head
Adjustment Knob
(M)
Verify the Cutting Table Roller
Wheel Assembly is tight
Blade Guard
Pivot Shaft
Front Pivot
Point
Rear Pivot
Point
Pivot Shaft
