MAINTENANCE AND TROUBLESHOOTING
NOTE: When installing the Retaining Screw, do not “cross-thread” and DO NOT over tighten the screw.

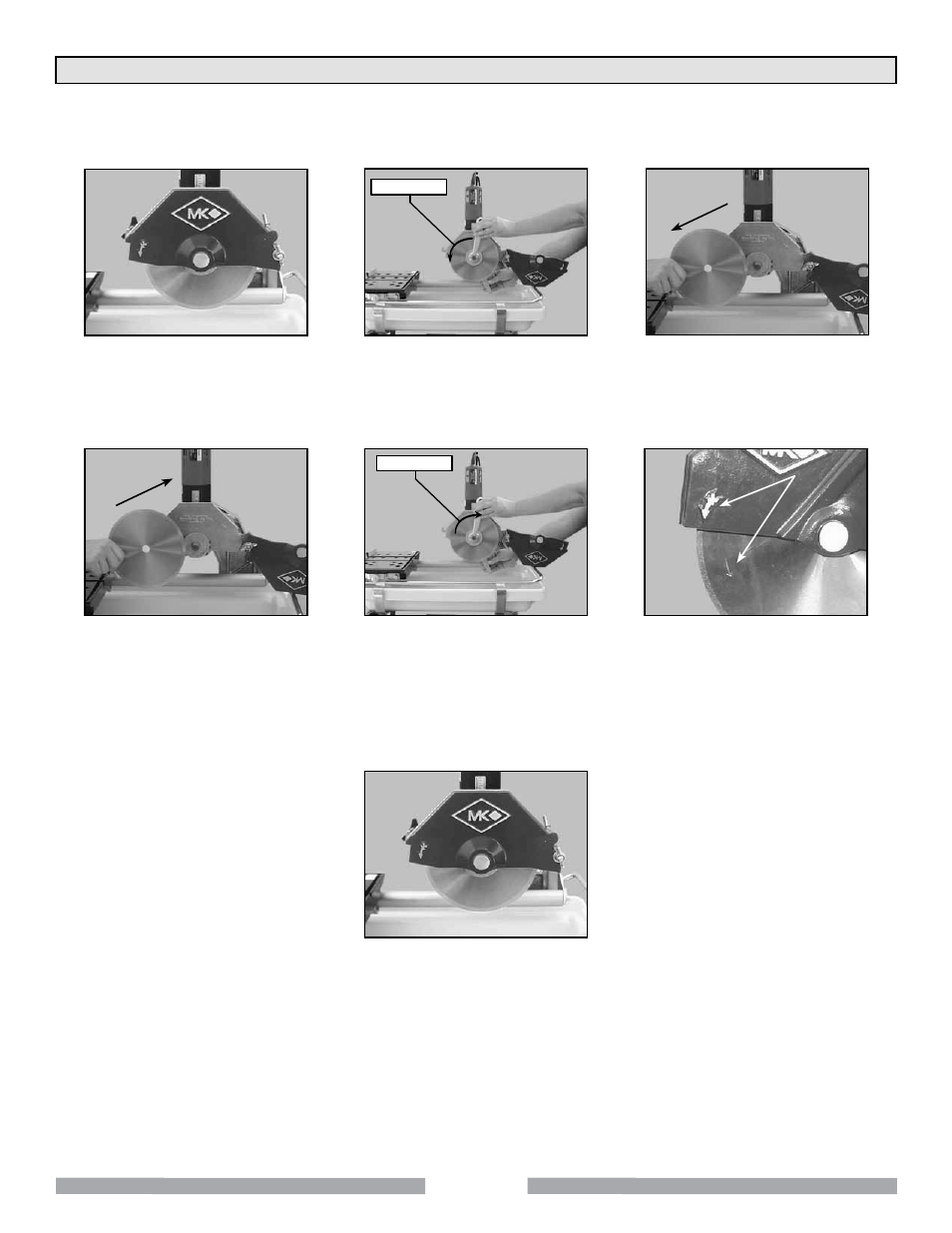

5. Diamond Blade Change-out:
(B)
Remove Retaining Nut and
Outer Flange
(A)
Open the Outer Blade
(C)
Remove Diamond Blade from
Blade Shaft
(E)
Install the Retaining Nut and
Outer Flange and then tighten
using the Blade and Shaft
Wrenches
(D)
Install the Diamond Blade
onto Blade Shaft
(F)
Verify the Blade is seated on
the Blade Shaft and direction
of rotation is correct
(G)
Close the Outer Blade
Turn CCW
Turn CW
