HCP

page 6

min. 15

cm

min. 8

cm

min. 8

cm

min.

20

cm

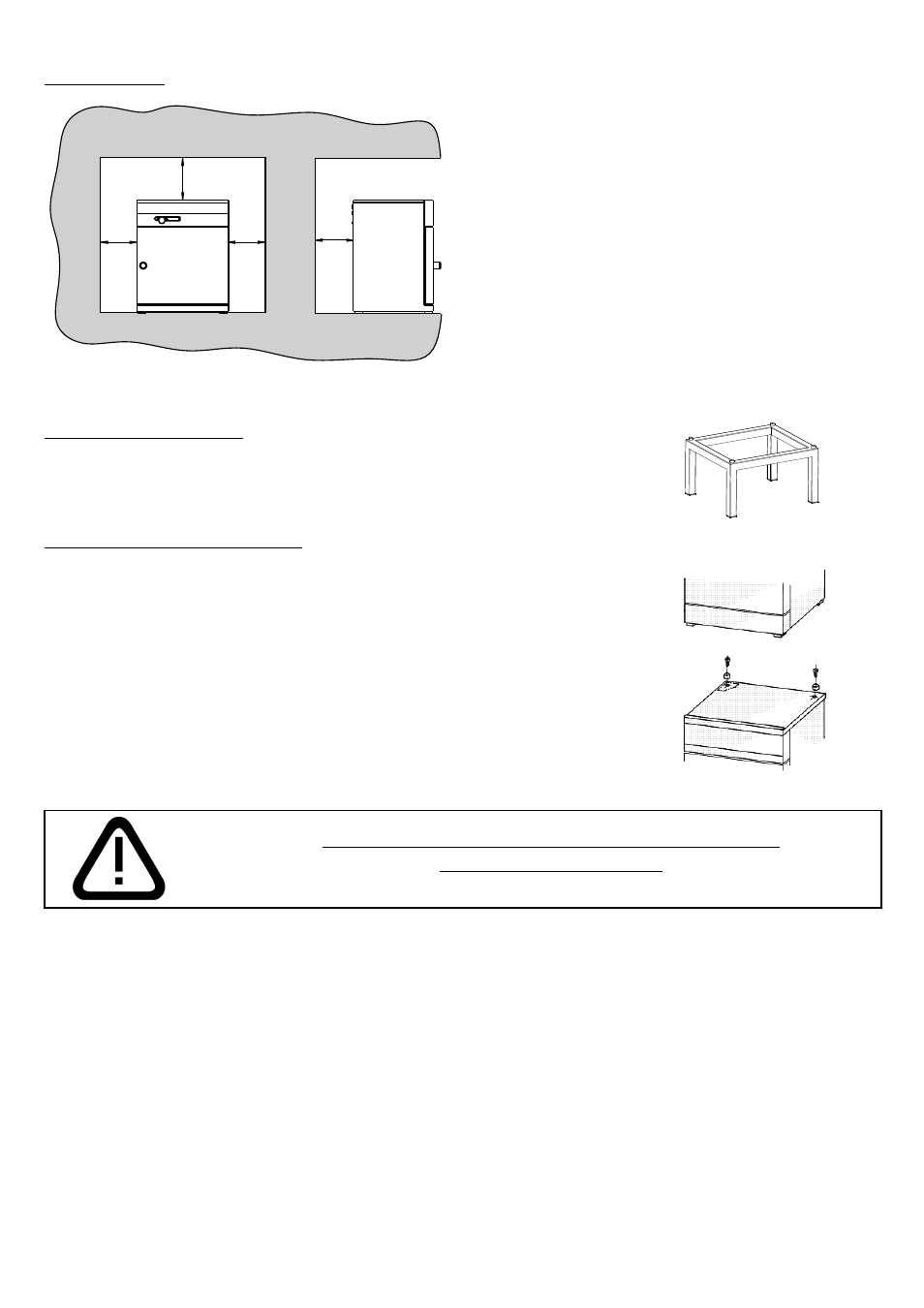

2 Installation

The oven can be placed on the floor or on a bench
(working surface).

It is important that the oven is set up accurately
horizontally; the door may have to be adjusted
(see section 21)

The spacing from the back of the oven to the wall
should be at least 15 cm. The spacing to the ceiling
must not be less than 20 cm and that at the side to
the wall not less than 8 cm. Generally it is essential
to have adequate air ventilation around the oven.

2.1 Subframe (accessory)
Models 108, 153 and 246 can be placed on a subframe.

2.2 Stackable version (accessory)
Two ovens of the same model size can be stacked on each other.
Foot locators have to be fitted on the bottom oven.
Mounting:

Take off cover of bottom oven

Place drill jig (supplied with foot locators) into the inverted cover

at the back

Mark holes and drill 4.2 mm dia

Screw the foot locators to the top of the cover using the screws

and nuts supplied

Re-fit the cover

WARNING! Always pull out the supply plug before

opening the oven cover!
