Loadstar Sensors DS-3000 Digital Load Cell Display & Controller User Manual
Page 33
DS-3000U
DS3000 User Guide
Loadstar Sensors, Inc.
Page: 33 / 48
033-01419 Rev. 4
9.3.1
Application Requirements:
1. 1 sensor each with 100 Lb load capacity, Sensor plugged into port 1
2. Remote input used to enable testing product weight provided by system
3. Remote input used to enable scale tare, provided by system
4. Nominal product weight assumption, for this example 10 +- 0.2 Lbs
9.3.2
Implementation Details:
1. Connect the outputs as in Figure 11: Schematic for Program Example 3
2. When the weight is above 10.2 lbs or below 9.8 lbs, activate the output-deactivate otherwise.
3. Lets use units of Pounds, so press the up key until the pounds lamp is illuminated.

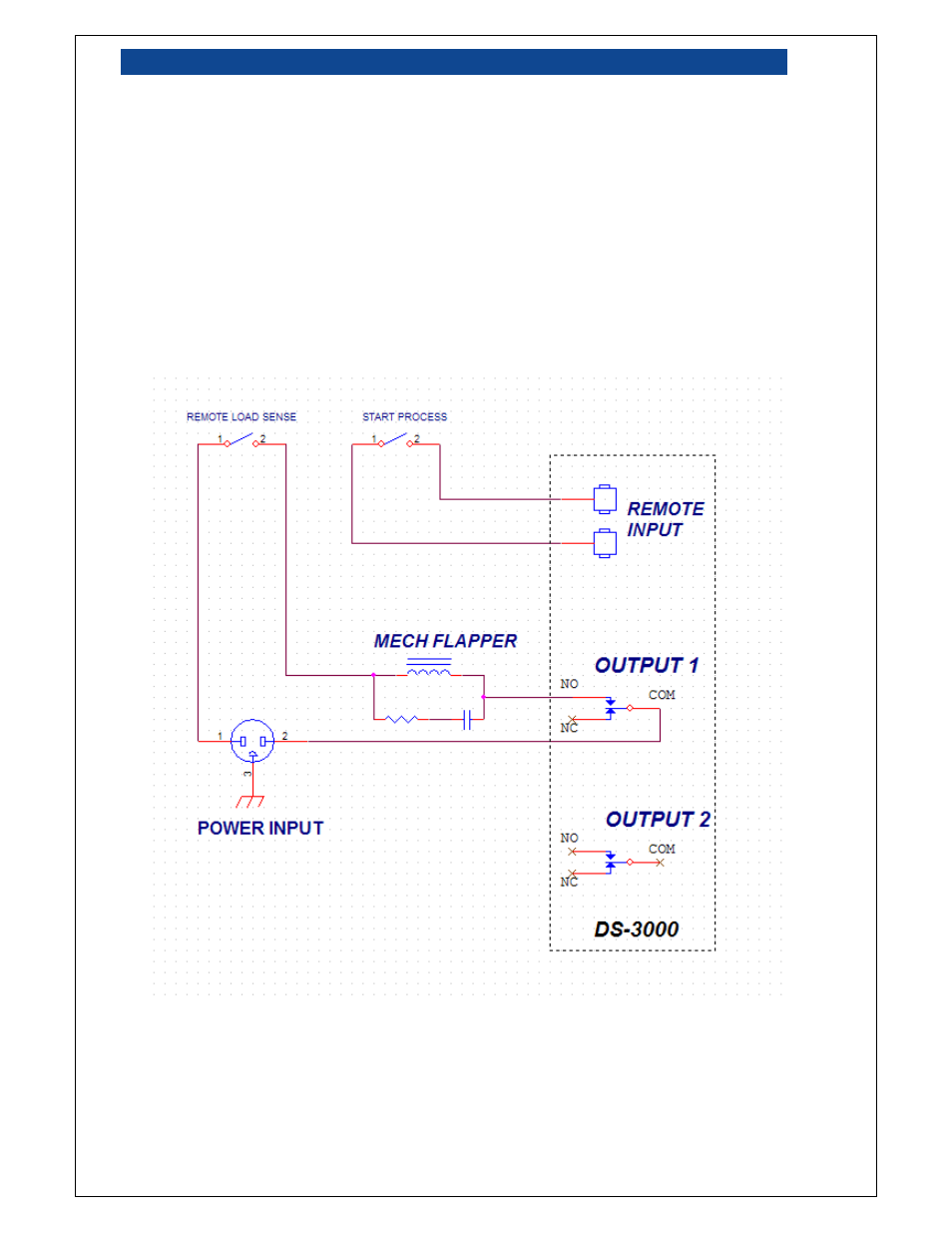

Figure 11: Schematic for Program Example 3
9.3.3
Programming the DS-3000:
1. Press
and
hold
menu
until “Enter Pass” and “000000” appear on the display
2. Press
the
up
or down keys to select the programming mode password (default is 000001)
