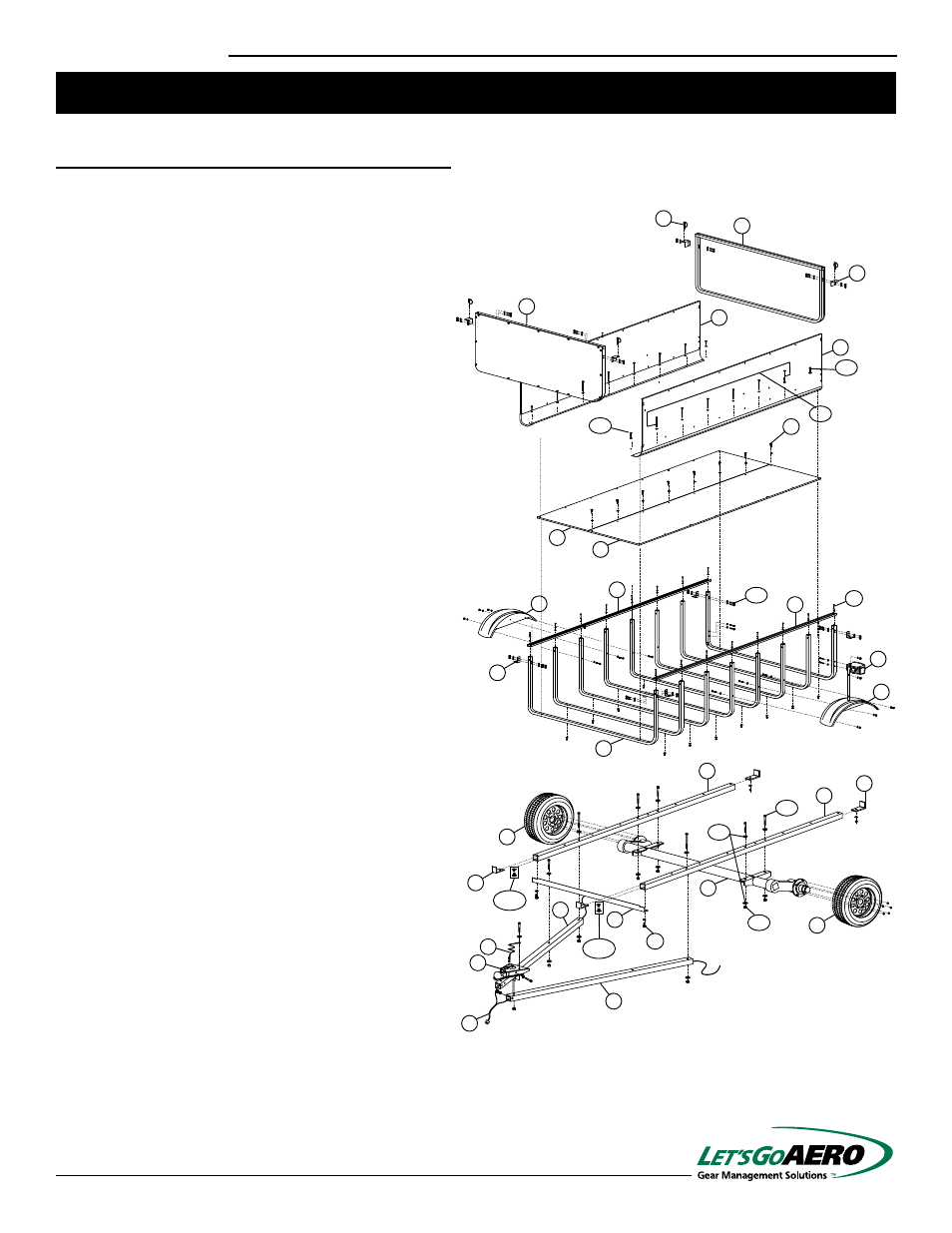

Parts List Overview
Item Description
A Floor and Sidewall Trailer Body Panels
B 5 x 4.5 Lug Pattern Torsion Axle with
Autolube Fitting
C Fenders
D 2" A-Frame Coupler
E Safety Cables
F 84" x 1.625" C-Channels
G 56" x 23" U-Tubes
H 84" x 2" x 2" Frame Tubes
I 55" x 2" x 2" A-Frame Tubes
J 2" x 2" x 48" Frame Angle
K 13" Tire & Wheel Assembly ST 175/80D13
Tire & Wheels
L Stud Mount Passenger Tail Light
without License Illuminator
M Stud mount Driver Tail Light
with License Illuminator
N Amber Lights, Front Marker Light
O L-Bend Bolt On Light Brackets
P License Plate Triangular Plate
Q 4-Flat Wire Lighting Harness with
Four-Flat Connector
R End Gates
S 5/16” Snap Pins
T 1-1/2" Wide End Gate Support L-Brackets
(Fits Inside Trailer Frame Tube)
U 1" Wide Steel Angle End Gate Latch
(Fits Trailer Body)
V 2" Wide Steel Angle Body Latch
(Fits End Gates)
W Pin Nut Assembly Kit:
5/16” X 1” Bolts, 5/16” Flat Washers,
5/16” Split Ring Lock Washers
X&Y Spring Nut, L-Bracket, Hardware Kit:
Front
X 5/16” Spring Nuts, 1/2” Spring Nut with
5/16” X 2” Bolts, 1/2” X 1” Bolts,
Spring Nut Holder and Washers
Rear
Y 5/16” Spring Nuts with 5/16” X 2” Bolts,
Washers, Split Ring Lock Washers
End Gate Support L Bracket
Z Self Drilling Screws
AA 1/2” x 3” Bolts
BB 1/2” Flat Washers
CC 1/2” Nylon Lock Nuts
DD 5/16” x 1-3/4” Bolts
EE 5/16” x 4” Bolts
FF 5/16” Washers
GG 5/16” Lock Nuts
HH 5/16” Split Ring Lock Washers
II Wire Pad Holder with Adhesive
