Cam Designer Basic
Functions
Working with the worksheet
7 Functions
7.1 Working with the worksheet
To create a cam profile in the »Cam Designer Basic«, specify the required data (boundary
conditions) on the worksheet using graphical elements. This worksheet has two levels ar-
ranged on top of each other. The lowest level is the Object Input Mode and the second level
is the Interpolation Mode.
In each of the levels the graphical elements of the underlying levels are visible and are used
for the following calculations. Only the elements of the active level can be edited, not the
elements of the underlying level(s). This principle is analogous to working with tracing pa-
per. Here, too, information from the lower sheets is available without being able to change
them.
7.2 Settings for the worksheet
Select EditProject settings... to open the Settings dialog box. Here you can change the set-
tings of the corresponding project.

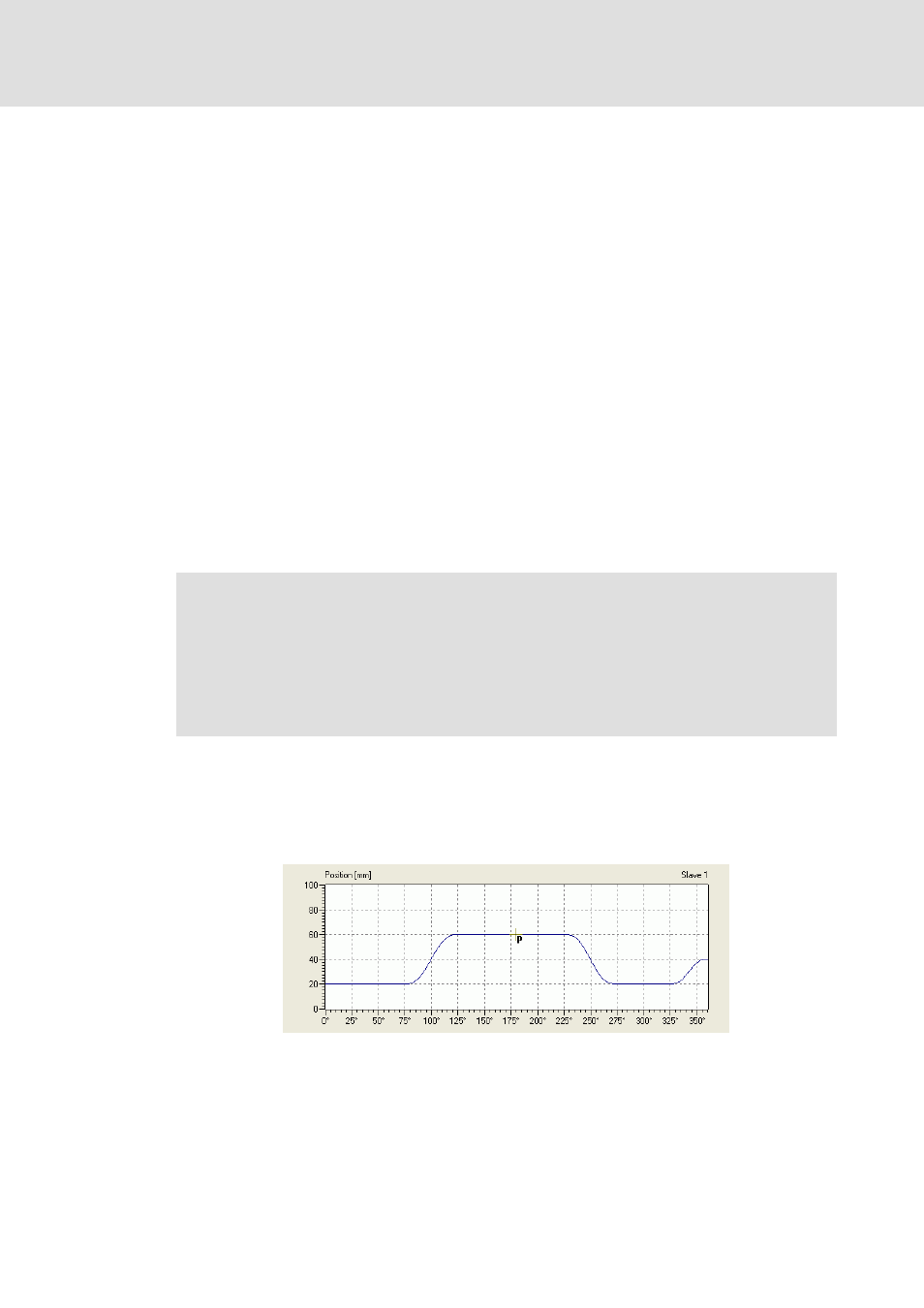

7.3 Object Input Mode
The Object Input Mode uses graphical elements (objects) to describe the problem to be
solved.

Note!
• Ensure that the maximum value of the range is higher than the minimum val-
ue.
• If you change the area boundaries afterwards and the project already con-
tains graphical objects, the objects outside the new area boundaries will be
deleted!
