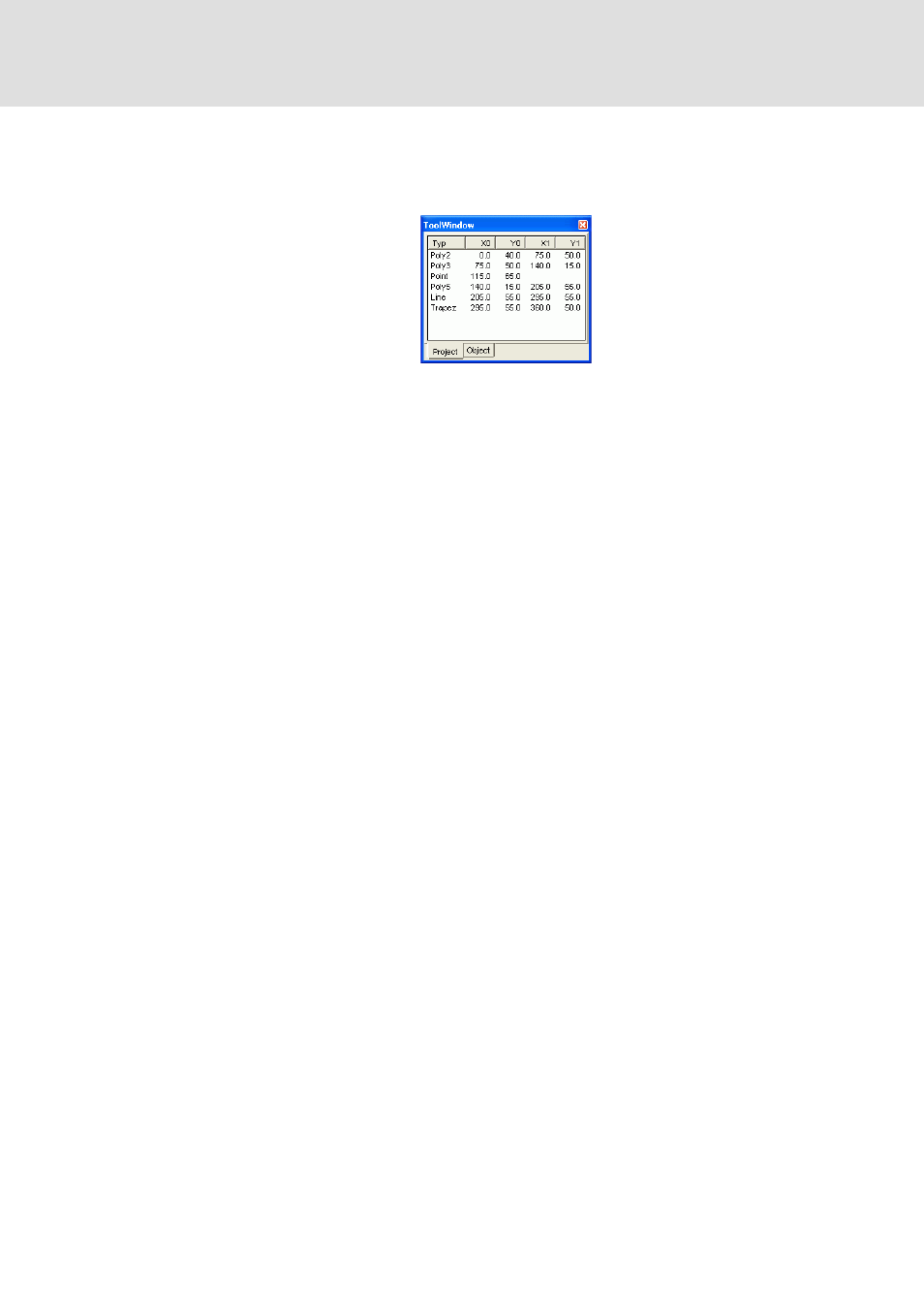

Object
This tab shows the list of all objects in the active mode. Optionally, the objects of the lower
levels, highlighted in grey, can also be shown.
 Each line in the list contains the object type and coordinates of the object. The lines are
sorted according to the X values (master) as standard. A different sort sequence can be
achieved by a mouse-click on the fields in the headline.
 It is possible to select one or several objects in the list by means of the mouse. The se-
lection is also transferred to the graph of the worksheet.
 A click with the right mouse button on the corresponding object opens a submenu
which contains various functions. The property dialogs of the objects can be opened,
the object can be copied or deleted.
In the Objects tab, the lines, profiles etc. can be edited.
5.7 Screen divider
The screen divider is the border between two non-overlapping windows. In the »Cam De-
signer Basic« there is a screen divider between the worksheet, time derivations and the ob-
ject list.
5.8 Workspace
The document windows (worksheets) are displayed in the workspace.
 When the»Cam Designer Basic« is started, the workspace is blank because there are no
open projects.
 The worksheet is the area for entering and editing graphic objects.
5.9 Output area
The display is optional.
 This diagram displays the time derivations of the objects from the worksheet.
 In this diagram, the cams of the individual tracks for the target systems Servo PLC and
ECS EA can be created and edited.
