Basic concept
3.4
Standard procedure
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The »Backup & Restore« software application writes a control file to the USB stick. During the
subsequent restart, the control file is evaluated by the system. Then the selected action is carried
out.
Cabinet controllers with a DVI interface allow for the connection of an external Monitor Panel. The
optionally connectable panel serves to observe the progress of the actions. The current processing
status is shown by means of status LEDs.
Status LEDs of the controllers
Depending on the action selected, the controller is automatically restarted (after the process has
been carried out successfully), or a signal is output and it is waited until the USB stick is removed
and the controller is manually restarted.
»WebConfig« (alternatively - in the case of remote access via
Engineering PC to a Cabinet controller without Monitor Panel)
(Via remote access to
Windows CE)
-
-
Windows Explorer (alternatively, if no (executable) controller
available)
[3-3]

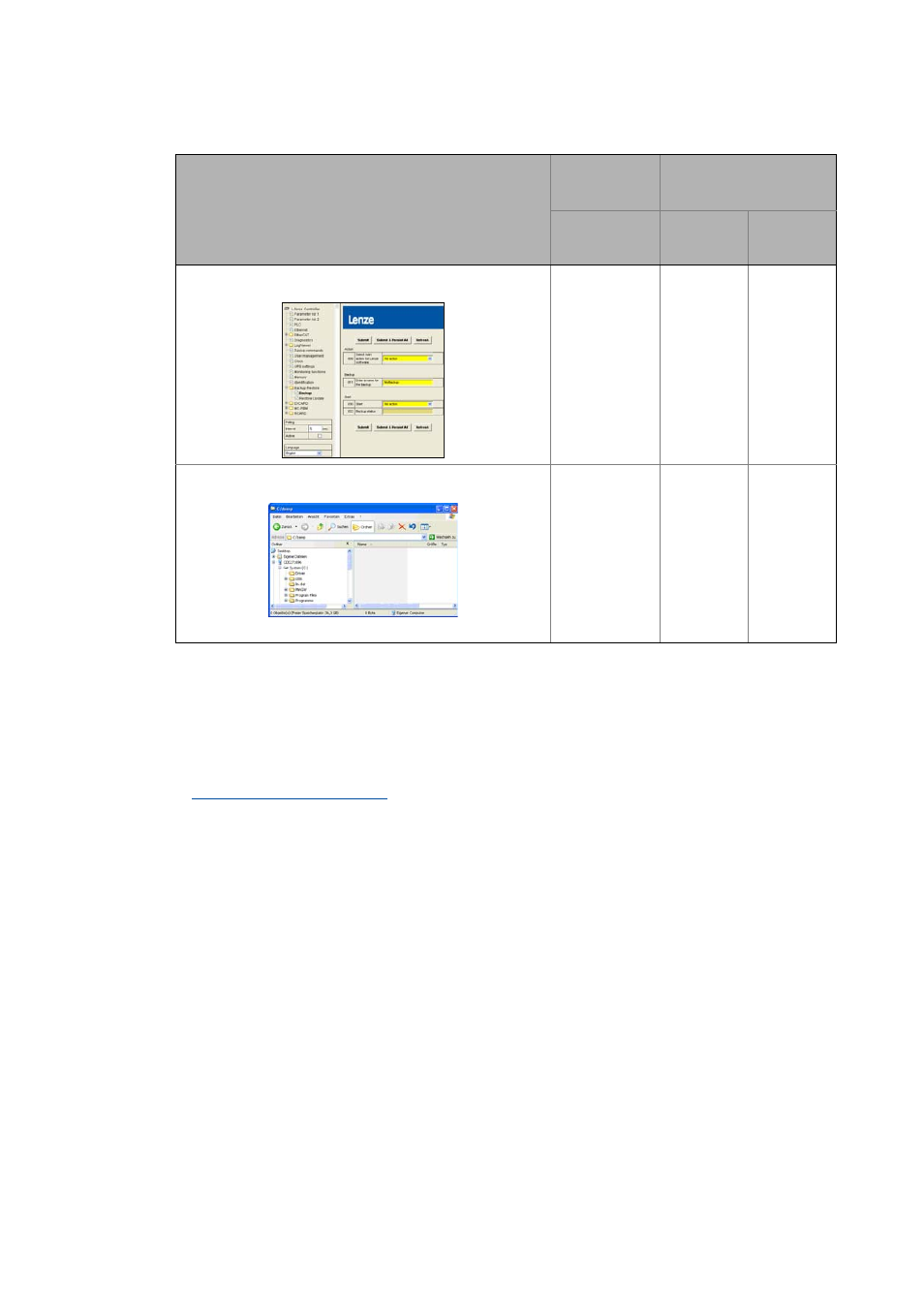

Example: »Backup & Restore« Windows XP
Software application
Operating
system
Engineering PC
Operating system
Controller
Windows XP/7
Windows CE/
embedded
Compact 7
Windows
embedded
Standard
