Initial switch-on
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.4
Initial switch-on
6.4.1
Signalling sequence of the LEDs
[6-1]

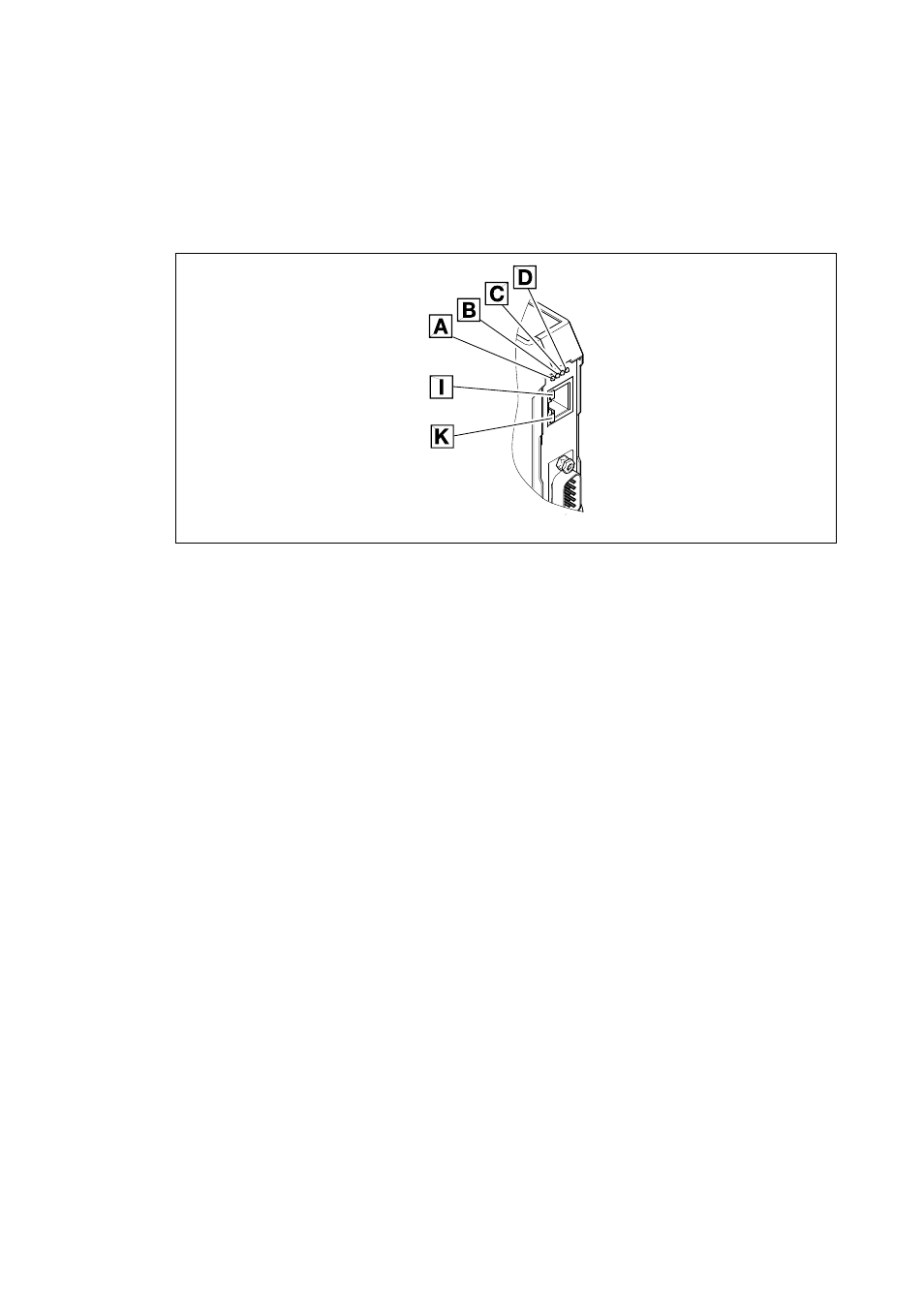

LEDs on the front of the communication module
Signalling sequence after switch-on:
1. Initialisation phase of peripherals starts:
• LED D (voltage supply, green) is lit.
2. After the CAN controller initialisation:
• LED C (RUN-LED, green) is blinking.
3. Ethernet connection is established:
• LED I is lit.
• LED A shows the baud rate of the Ethernet connection (10 Mbps or 100Mbps).
• When LED A is blinking, the communication module is currently determining the IP address.
Communication via Ethernet is only possible when this process has been completed.
Now, the device is ready for operation.
