6 Commissioning
6.1 Commissioning with the Lenze "System bus configurator"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.1.2 Configuring the communication module
Before communication with the communication module can be established, you have to carry out
settings for the following parameters:
• CAN parameters
The CAN parameters are saved in the communication module and contain specific data for the
CAN bus such as the baud rate, parameter data channel, or time-out.
• Parameters for access to the communication module
The communication module is an Ethernet node. Each Ethernet node has 2 addresses: a MAC
address and an IP address.
The MAC address serves to unambiguously identify a device worldwide. Observe the MAC
address entry on the nameplate of the communication module. The MAC address is hard-coded
in the device and cannot be changed. If an Ethernet connection to the communication module
has already been established, the MAC address can be read out online.
The IP address is a logical address which must be adapted to the corresponding Ethernet
network.

How to configure the communication module:
1. Open the "System bus configurator" via the MS Windows® start menu under:
All Programs  Lenze  Communication  System bus configurator
2. Click the Add button and select the "EMF2180IB" communication module from the list.
3. Click the Settings tab.
4. Enter the CAN parameters.
The following function is available from version 1.7 onwards!

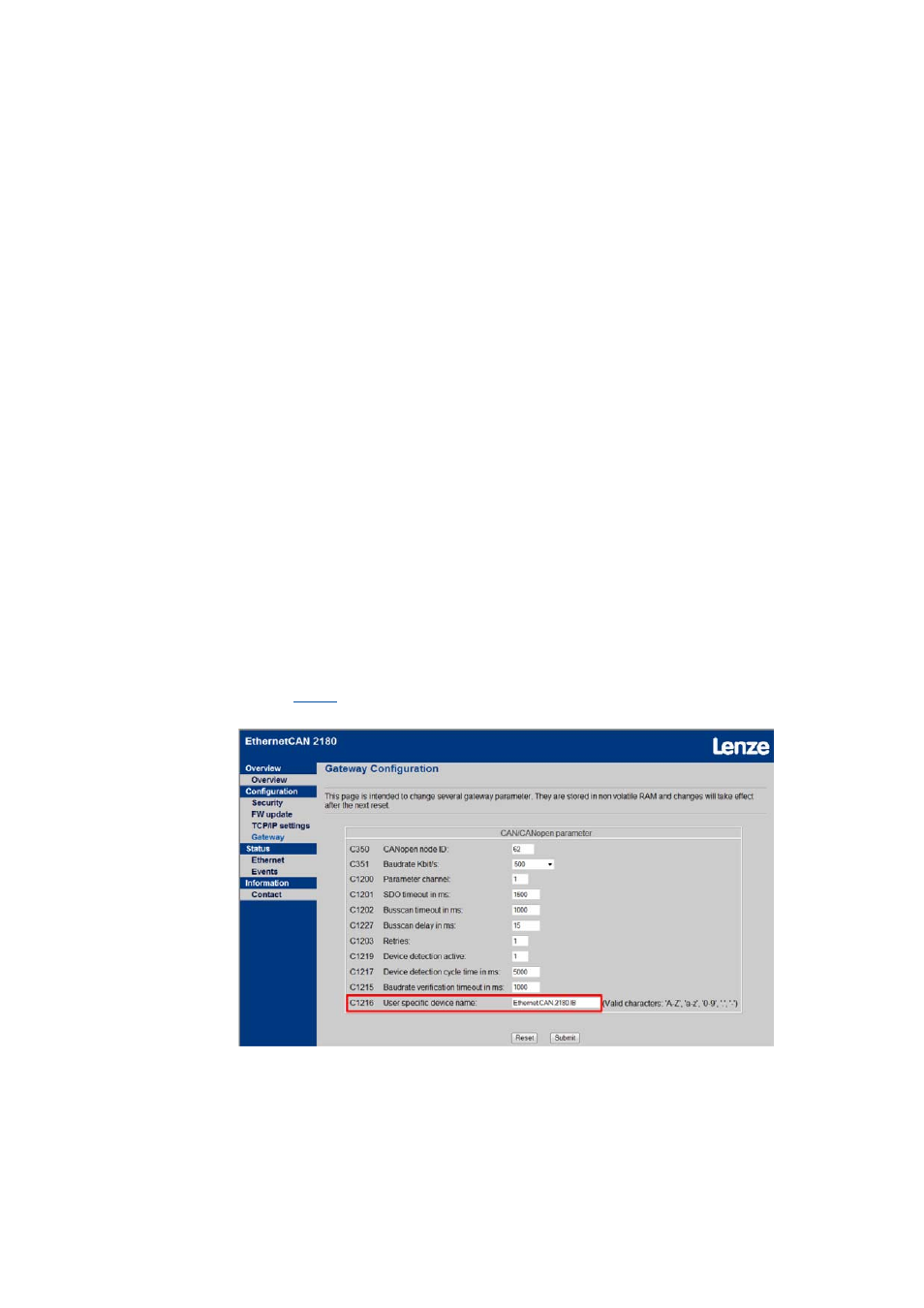

Via code C1216 or the web interface, you can assign an alphanumeric name to the
communication module:
2180FEW016
