Commissioning

Activation of PROFIBUS at the servo inverter



K-HB 13.0001-EN 2.1

TheLenzestandard RS232connecting cableis plugged inbetween theinverter (M8circular

connector, 3-pole) and the COM interface of the PC (Sub-D connector 9-pole). The settings

of the COM interface must be checked in the hardware settings of the PC.



Note!

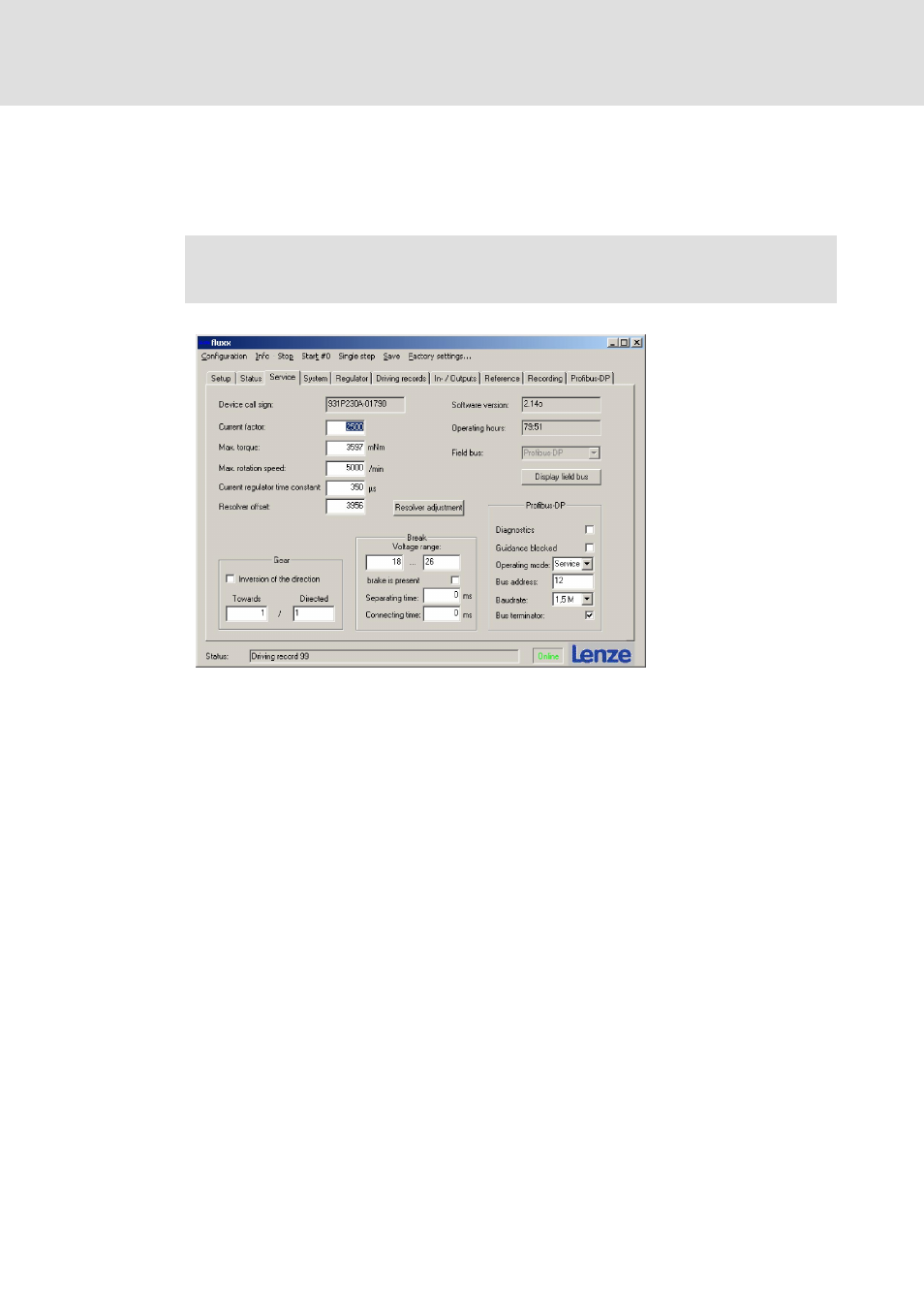

Select from the Setup menu Online Level 4 or Service.

931mPro_002

When the Diagnostics function is activated, the diagnostic alarm is switched on. As soon

as a diagnostic alarm is triggered, the drive automatically sends 4 bytes of diagnostic data

and its start address to the control. This serves to obtain information about if and when an

error occurred in the servo inverter and the data in the control can be evaluated.
The Guidance blocked serves to exclude the PROFIBUS master from the access to the drive.

As soon as the PROFIBUS master requests the control authority via the drive, the drive can

onlybe started via thebus system(in theStatus tab the message”Fieldbus active” appears

in the status field)
