10 Instructions for Use, V 1.8 RevC – 07/2013
2. Safety

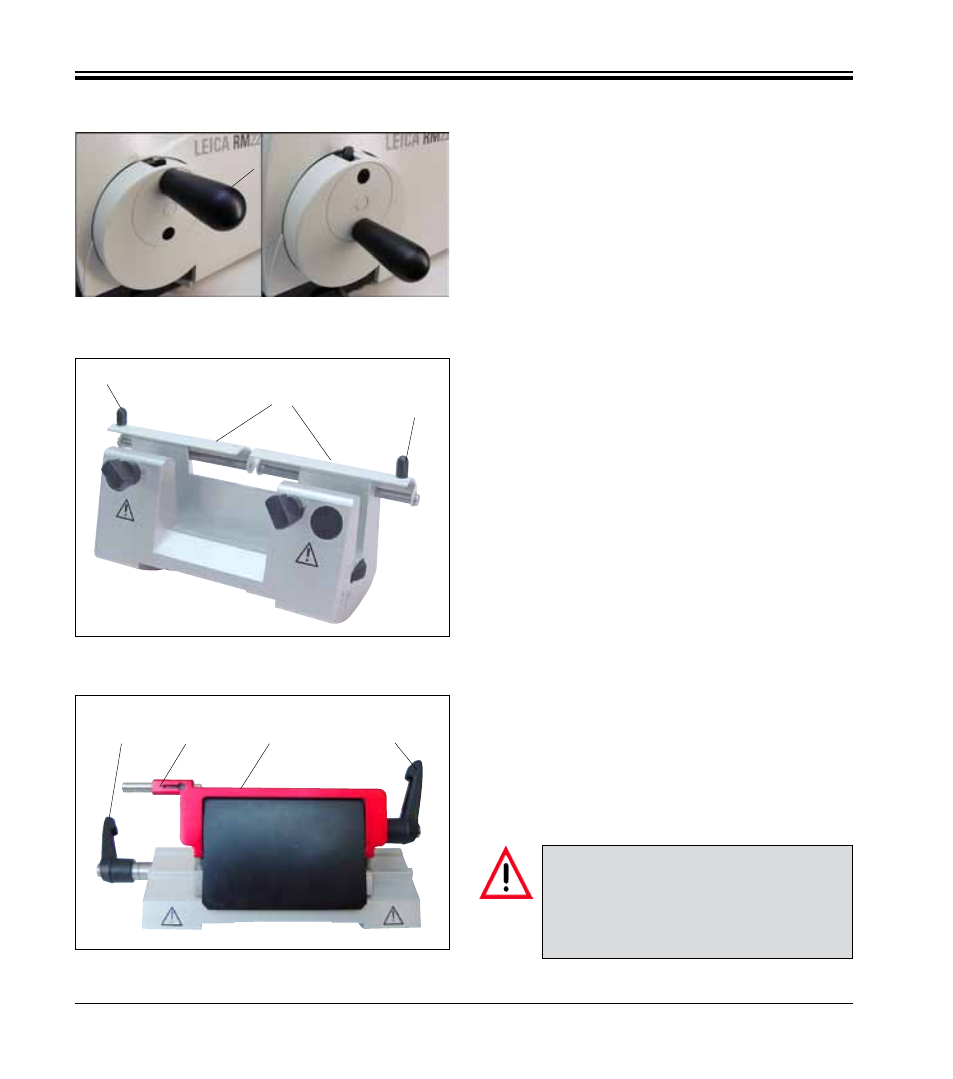

Knife guard on the knife holder
Each knife holder is equipped with a tightly
mounted knife guard (8, 9). This makes it possible
to cover completely the cutting edge in every
knife or blade position.
Knife holder N/NZ
The knife guard (8) of the knife holder N/NZ
can be easily positioned via the two handles (7)
( Fig. 5 ).
To cover the knife edge, push both cover strips
of the knife guard to the center.
Knife holder E
The knife guard on knife holder E consists of a
red foldaway handle with ejector (9a). To cover
the cutting edge, fold the knife guard handle (9)
upwards as illustrated in Fig. 6 .
7
7 8
6
Centering the handle
For safety reasons, the handle of the handwheel
must always be centered while in motorized
sectioning mode.
• Activate the handwheel lock.
• To center the handwheel, lightly pull the han-
dle (6) outwards and swivel it into the center
of the handwheel (12) ( Fig. 4 ).
• The handle will then lock automatically when
released.
12
12
9 10 11 9a
Fig. 4
Fig. 5
Fig. 6
For the new knife holder E, the two clamp-
ing levers (10, 11) must always remain in
the position shown. Clamping lever for the
blade (10) at the right, clamping lever for
the lateral displacement (11) at the left.
