1 Introduction

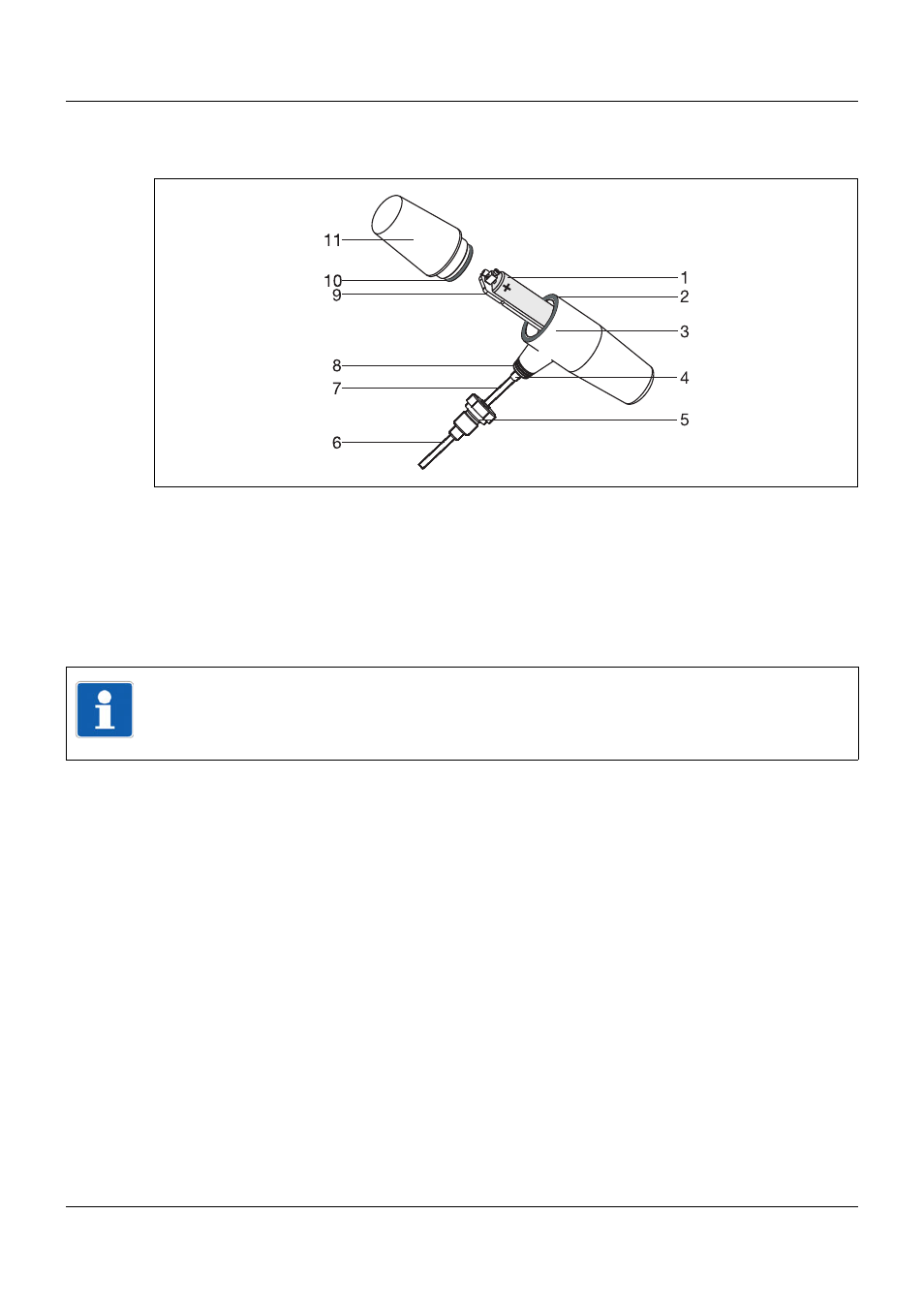

1.3 Wtrans transmitter components
1 Lithium battery 2 Seal (white)
3 Basic case (blue) 4 Case connection
5 Process connection (type specific) 6 Protection tube
7 Extension tube (only for basic types
with process connection) 8 Color rings
9 Circuit board 10 Seal (black)
11 Case cover (blue)
TIP!
In this manual the combination of protection tube, process connection, and extension tube as
protection fitting is described. The protection tube has the measuring insert with the temper-
ature sensing element integrated into it.
