3 Preparing Transmitter
28
3.5 Adding the color coding of a transmitter

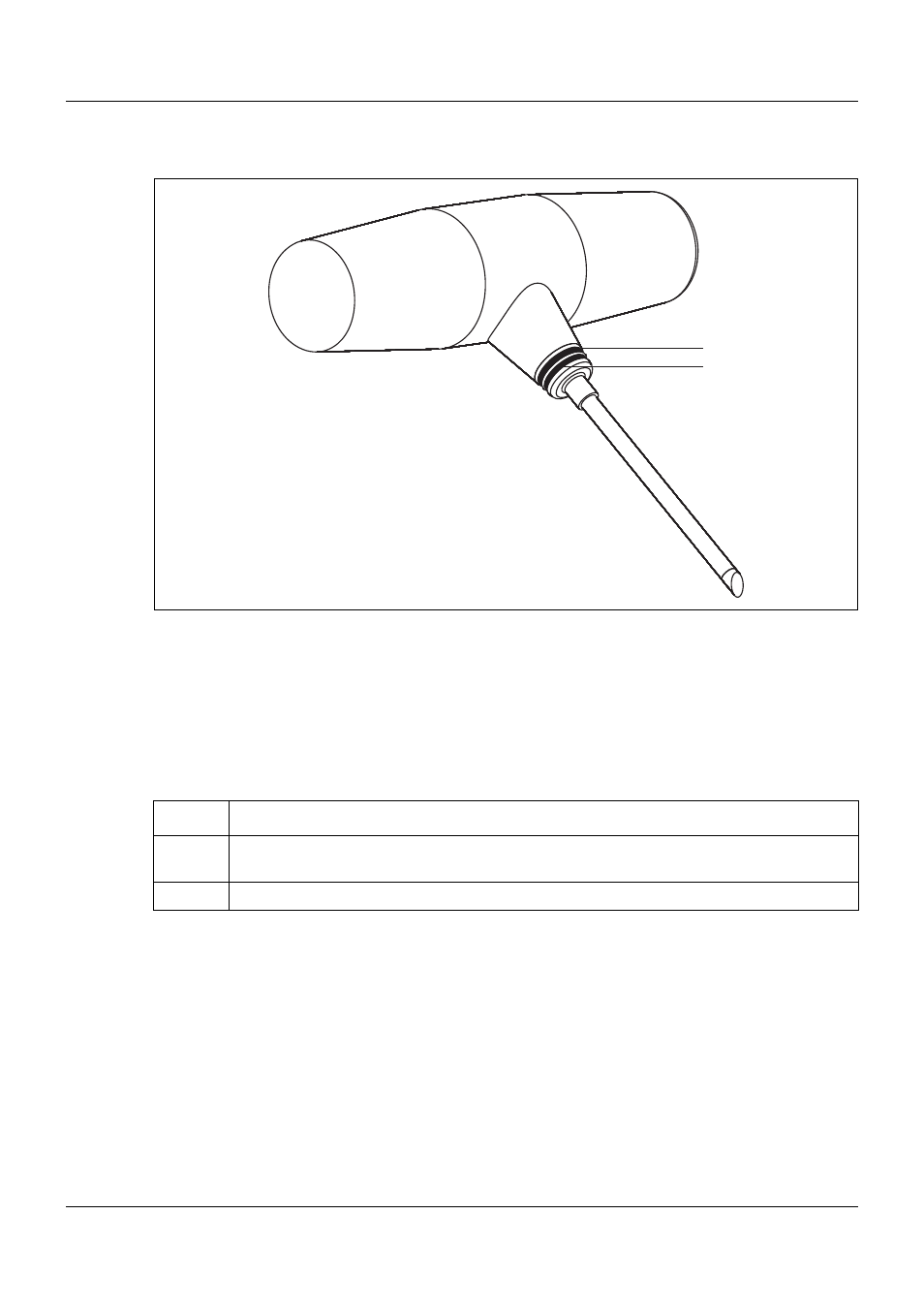

Figure 5: Adding the color coding of a transmitter
The delivery scope of the transmitter includes four color rings made of silicon (white, green, red,
and blue) with which the transmitters can be clearly identified visually.
Proceed as follows to clearly mark the transmitters visually.
1 Top color code 2 Bottom color code
Step Activity
1 To add a clear combination of silicon rings on the transmitter, push the rings on the trans-
mitter shaft.
2 Write down the color combinations of the transmitter.
1
2
