3 Operation and visualization
42
Completed

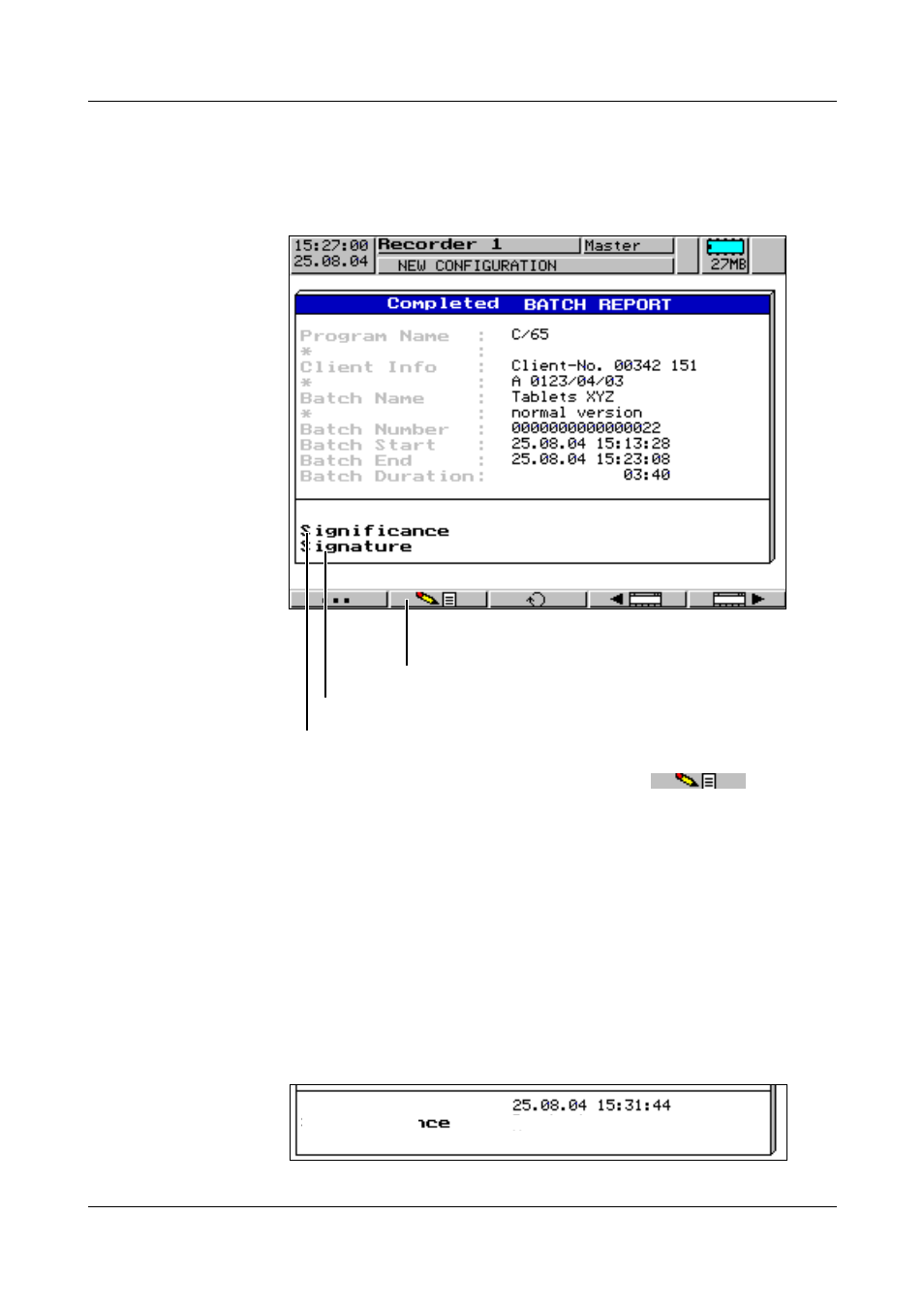

batch report The screenshot shows a completed batch report that includes the possibility
of executing an electronic signature.
Whether an electronic signature can be executed, is decided through the PC
Security Manager Software (PCS).
Executing
the signature The electronic signature is executed by calling up the function.
Line 1 The text in the left-hand column is inserted in the Configuration menu, through
the parameter El. signature
Î Designation Î Significance.
The text in the right-hand column is inserted during signing, if, in the
Configuration menu, the parameter El. signature
Î Select significance Î for
batches Î Text list? has been set to “Yes”. You can choose one from up to
146 texts. The contents of the 146 texts is set in the menu Configuration Î
Texts.
Line 2 The text in the left-hand column is inserted in the Configuration menu, through
the parameter El. signature
Î Designation Î El. signature.
After signing, the user name will appear in the right-hand column
Execute electronic signature
Line 2
Line 1
Significance
Sign atu re
Batch ok
Master
